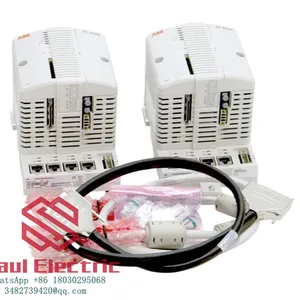

PM864AK01 Processor Unit Kit 3BSE018161R1
PM864AK01 3BSE018161R1
PM864AK01 Processor Unit Kit
Exchange No. EXC3BSE018161R1
Package including:
-PM864A, CPU
-TP830, Baseplate, width =115mm
-TB850, CEX-bus terminator
-TB807, ModuleBus terminator
-TB852, RCU-Link terminator
-Battery for memory backup 4943013-6
-4 pos Power Plug 3BSC840088R4
Product Net Depth / Length: 112.5 mm
Product Net Height: 108 mm
Product Net Width: 99 mm
Product Net Weight: 1.1 kg
AC 800M processor unit is a high-performance, multi-functional processor unit launched by ABB, which is widely used in small and medium-sized process control, filling equipment, sewage treatment equipment, cement production line, petrochemical process control, etc., equipped with large capacity RAM memory. Used to store and run Firmware, control unit hardware configuration information, and applications.
Some of the benefits of the AC 800M Controller are:
• Flexibility, the AC 800M Controller can be ordered as individual units which may be mounted in accordance with the customers own requirements.
• Extremely small footprint.
• Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism.
• Modularity, allowing for step-by-step expansion. You only pay for what you require at the present time.
• Reliability and simple fault diagnosis procedures.
• Controller redundancy for higher availability (CPU, CEX-Bus, communication interfaces, S800 I/O).
• Built-in redundant Ethernet Communication ports.
• Built-in RS-232C communication ports.
• Low power consumption, thus no external fans required.
• Flexible process connection, using either local I/O or standard fieldbuses.
• S800 I/O redundancy.
• Supports S800 I/O High Integrity (with PM858, PM862, PM865, PM866A,PM867 and PM891).
| PM851K01 | 3BSE018168R1 |
| PM851AK01 | 3BSE066485R1 |
| PM851AK01-eA | 3BSE066485R2 |
| PM856K01 | 3BSE018104R1 |
| PM856AK01 | 3BSE066490R1 |
| PM858K01 | 3BSE082895R1 |
| PM858K02 | 3BSE082896R1 |
| PM860AK01 | 3BSE066495R1 |
| PM861K01 | 3BSE058590R1 |
| PM861K02 | 3BSE018107R1 |
| PM861AK01 | 3BSE018157R1 |
| PM861AK02 | 3BSE018160R1 |
| PM862K01 | 3BSE076940R1 |
| PM862K02 | 3BSE081636R1 |
| PM865K01 | 3BSE031151R1 |
| PM865K02 | 3BSE031150R6 |
| PM866K01 | 3BSE050198R1 |
| PM866K02 | 3BSE050199R1 |
| PM866AK01 | 3BSE076939R1 |
| PM866AK02 | 3BSE081637R1 |
| PM891K01 | 3BSE053241R1 |
| PM891K02 | 3BSE053242R1 |
| SB822 | 3BSE018172R1 |
| PM857K01 | 3BSE088385R1 |
| PM857K02 | 3BSE088386R1 |
| PM863K01 | 3BSE088381R1 |
| PM863K02 | 3BSE088382R1 |
| PM867K01 | 3BSE076355R1 |
| PM867K02 | 3BSE081638R1 |
| PM864K01 | 3BSE018150R1 |
| PM864AK01 | 3BSE018161R1 |
| PM864AK02 | 3BSE018164R1 |
| SM811K01 | 3BSE018173R1 |
| SM812K01 | 3BSE072270R1 |
| SM810K01 | 3BSE030928R1 |
