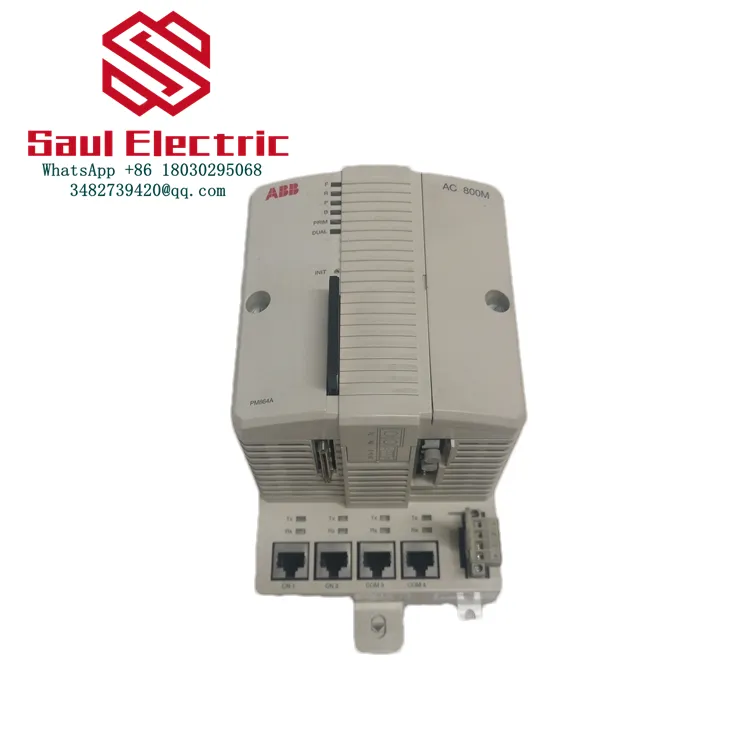

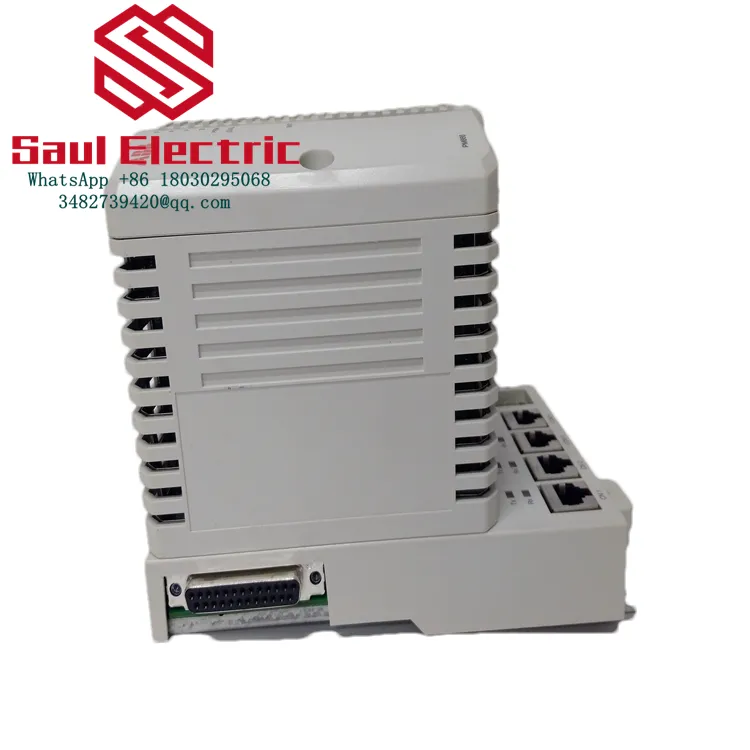

PM851K01 3BSE018168R1 Processor Unit

AC 800M processor unit is a high-performance, multi-functional processor unit launched by ABB, which is widely used in small and medium-sized process control, filling equipment, sewage treatment equipment, cement production line, petrochemical process control, etc., equipped with large capacity RAM memory. Used to store and run Firmware, control unit hardware configuration information, and applications.

Product Net Depth / Length: 135 mm

Product Net Height: 186 mm

Product Net Width: 119 mm

Product Net Weight: 1.2 kg

Product features of AC 800M processor unit

1: CPU and memory

- AC 800M processor unit provides a wide selection of CPU modules, such as PM851, PM856, PM860, PM861, PM864, and PM865. These modules vary in processing power, memory size, and redundancy support.

- Equipped with large capacity RAM memory for storing and running Firmware, control unit hardware configuration information, and applications.

2: indicates the communication interface

- Integrate two Ethernet interfaces (CN1 and CN2), support TCP/IP, and can be used to connect the master network and the control network. CN2 can be used for redundancy configuration.

- Equipped with two RS-232C interfaces (COM3, COM4), COM3 supports modem, can be used for a variety of protocol communication; COM4 is used to connect to the configuration tool.

- Support for ModulBus electrical and fiber extension interfaces, as well as the extension of various fieldbus modules (such as Profibus DP, Profinet IO, etc.).

3: Redundancy Settings

- Supports redundancy for key components, such as cpus and communication interfaces, to improve system reliability and efficiency.

- Redundant switching times are extremely short, ensuring a quick switch to a backup component in the event of a failure, reducing system downtime.
