GSM/3G/4G IoT RTU S475 With RS485 8DI 6AI 4Relay for Remote Device Control

GSM/3G/4G IoT RTU S475 With RS485 8DI 6AI 4Relay for Remote Device Control thumbnail-1
GSM/3G/4G IoT RTU S475 With RS485 8DI 6AI 4Relay for Remote Device Control thumbnail-2
GSM/3G/4G IoT RTU S475 With RS485 8DI 6AI 4Relay for Remote Device Control thumbnail-3
GSM/3G/4G IoT RTU S475 With RS485 8DI 6AI 4Relay for Remote Device Control thumbnail-4
GSM/3G/4G IoT RTU S475 With RS485 8DI 6AI 4Relay for Remote Device Control thumbnail-5
GSM/3G/4G IoT RTU S475 With RS485 8DI 6AI 4Relay for Remote Device Control photo-1
GSM/3G/4G IoT RTU S475 With RS485 8DI 6AI 4Relay for Remote Device Control photo-2

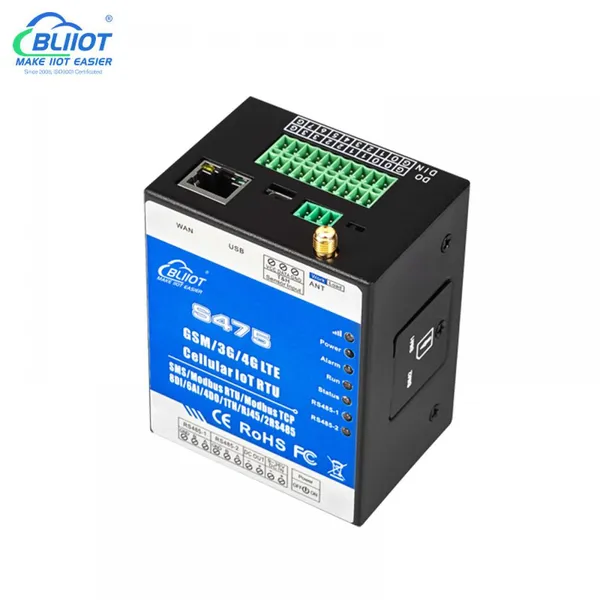

GSM/3G/4G IoT RTU S475 With RS485 8DI 6AI 4Relay for Remote Device Control photo-3
GSM/3G/4G IoT RTU S475 With RS485 8DI 6AI 4Relay for Remote Device Control photo-4
GSM/3G/4G IoT RTU S475 With RS485 8DI 6AI 4Relay for Remote Device Control photo-5
US$ 163 - 219 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIOT
Place of Origin:
China
Model Number:
S475
Contact Supplier Request Quote Chat Now
Shenzhen Beilai Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIOT
Place of Origin China
Model Number S475

Product Description

The Industrial RTU features 8 digital inputs, 6CH 24 bit analog or PT100 Resistance Temperature Detector (RTD) inputs, 4 relay outputs, 1 temperature and humidity input, 1 Ethernet RJ45 port, 2SIM slots, and 2 RS485 serial port supports 320 IO tags via Modbus RTU protocol.

The Industrial RTU features 8 digital inputs, 6CH 24 bit analog or PT100 Resistance Temperature Detector (RTD) inputs, 4 relay outputs, 1 temperature and humidity input, 1 Ethernet RJ45 port, 2SIM slots, and 2 RS485 serial port supports 320 IO tags via Modbus RTU protocol.

The Cellular IoT RTU S475/S475E is an industrial class, high reliability, high stability, and programmable Remote Terminal Unit (RTU). It is designed for working in the harsh industrial application environment, widely used in a variety of industrial automation applications.


Detailed Photos





Product Parameters
Category Parameter Description
Power Input Voltage DC 9~36V
Power Consumption Normal: 130mA@12V, Max: 500mA@12V
Output 1 Channel; Voltage: 9~36V DC; Current: 1500mA@12V(Max)
Protection Reverse wiring prevention;
ESD Air: 15KV; Surge: 4KV
Backup Battery 3.7V/850mA (It is optional. Default: Without battery)
USB USB 1xMini USB
Ethernet Port Port 1xRJ45, 10MMbps
Protection ESD Contact: 8KV; Surge: 4KV(10/1000us)
Protocol Modbus RTU, Modbus TCP, MQTT
Serial Port QTY 2xRS485
Baud Rate 1200bps-115200bps
Data Bit 8
Parity Bit None, Even, Odd
Stop Bit 1, 2
Protocol Modbus RTU(slave), Modbus RTU(master)
Protection ESD Contact: 8KV; Surge: 4KV(8/20us)
Digital Input QTY 8 Channel
Type Support both Wet contact and Dry contact
Dry Contact Close: Short circuit; Open: Open circuits
Wet Contact Close: 0-0.5VDCV; Open: 3-30V
Others DIN0 as a high-speed pulse counter, sampling frequency: 1MHz; DIN1~3 as low-speed pulse counter; DIN1 with arm and disarm function;
Protection 2KVrms
Digital Output QTY 4 Channel
Type Relay output (5A@30VDC, 5A@250VAC)
Others The first DO can set time to control by authorize number; Custom setting close and open times
Protection 2KVrms
Analog Input QTY 6 Channel
Type Differential input, 4-20mA/0-20mA/0-5V
Resolution 24Bit
Accuracy ±0.1% FSR @ 25°C
±0.3% FSR @ -10 and 60°C
±0.5% FSR @ -40 and 75°C
Sampling Rate 200ms
Input Impedance >1M ohms
Temperature&Humidity (AM2301) Resolution 16bit(0.1%RH, 0.1°C)
Sampling Rate 200ms
Temperature Range -40 to +80°C
Accuracy 0.5°C
Humidity Range 0 to 99RH%
Accuracy 3%RH
4G SIM Drawer type, Support 1.8V/3V SIM/UIM card, Built-in 15KV ESD protection
SIM Slot 2
Software Internet Protocol IPV4, TCP/UDP, Modbus RTU, Modbus TCP, MQTT, BLIIoT IoT RTU
Indicator Cellular network signal, power, status, operation, arming and disarming, RS485
Configuration PC software configuration, support WIN XP, WIN 7, WIN 8 and WIN 10
Slave Connection 48 devices, Max 320 I/O data points(Bool, 16bit, 32bit, 64bit)
Transparent Transmission Support
SMS Command Support
Login Package Support custom login package
Heartbeat Package Support custom heartbeat package
Storage Capable of storing up to 100,000 historical records
Safety MTBF ≥100,000 hours
EMC EN 55022: 2006/A1: 2007 (CE &RE) Class B
IEC 61000-4-2 (ESD) Level 4
IEC 61000-4-3 (RS) Level 4
IEC 61000-4-4 (EFT) Level 4
IEC 61000-4-5 (Surge)Level 3
IEC 61000-4-6 (CS)Level 4
IEC 61000-4-8 (M/S) Level 4
Others CE, FCC, RoHS
Environment Working -45~85°C, 5~95% RH
Storage -45~105°C, 5~95% RH
Others Shell Metal
Size 88x70x52mm
Protection IP30
Installation Wall-mounting or DIN Rail mounting.
