Product Description

The Industrial 4G Wireless Cellular RTU S274 features 4 digital inputs, 4 relay outputs, 1 temperature and humidity input, and 1 RS485 serial port. The RTU supports Modbus RTU over TCP, Modbus TCP, MQTT protocol.

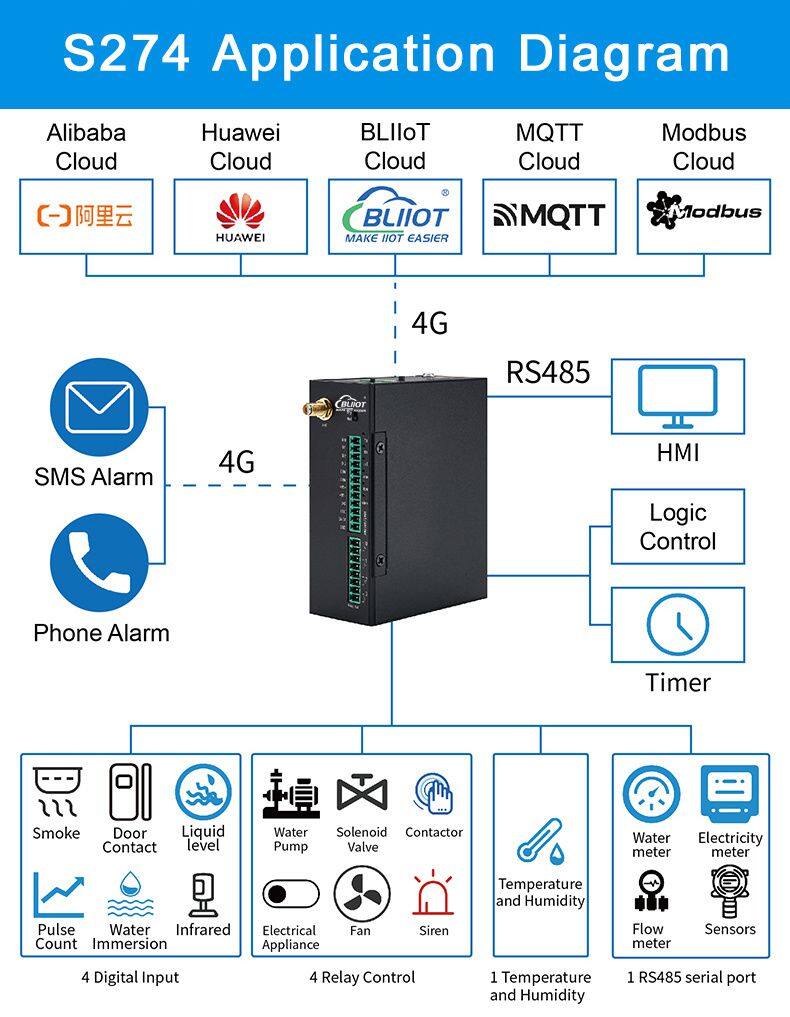

The remote monitoring module is designed for remote measurement and control system and remote data acquisition telemetry systems, such as smoke, liquid, water, flow, flood, electricity, power, energy remote monitoring and remote control.

Inbuilt inter-lock logic programmer and powerful timer program function;

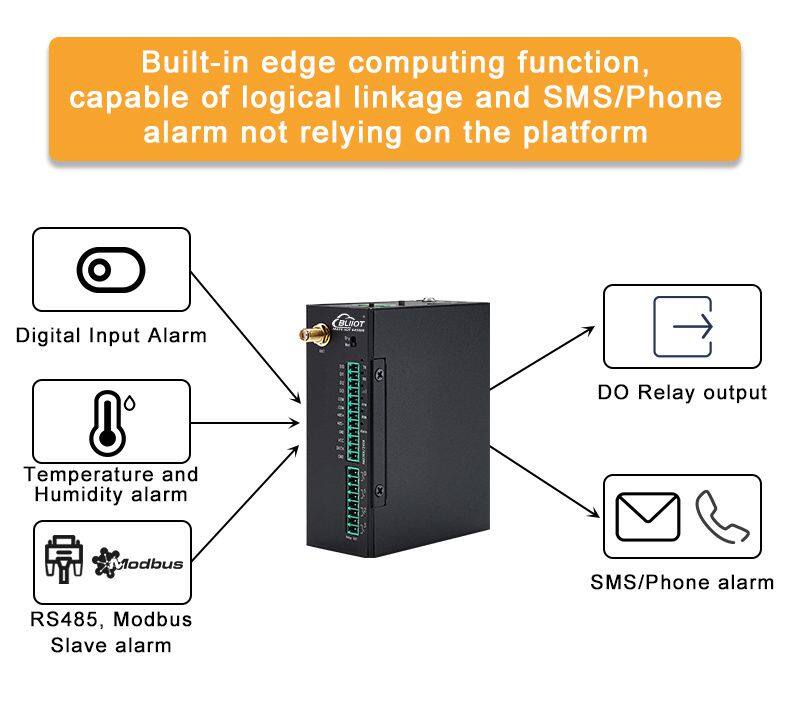

When alarm occurs, the RTU will notify users by SMS, dialing, and also uploading data to cloud platform, monitoring center. The RTU also can be used as a remote switch, remote I/O, remote smart PLC, timer switches.

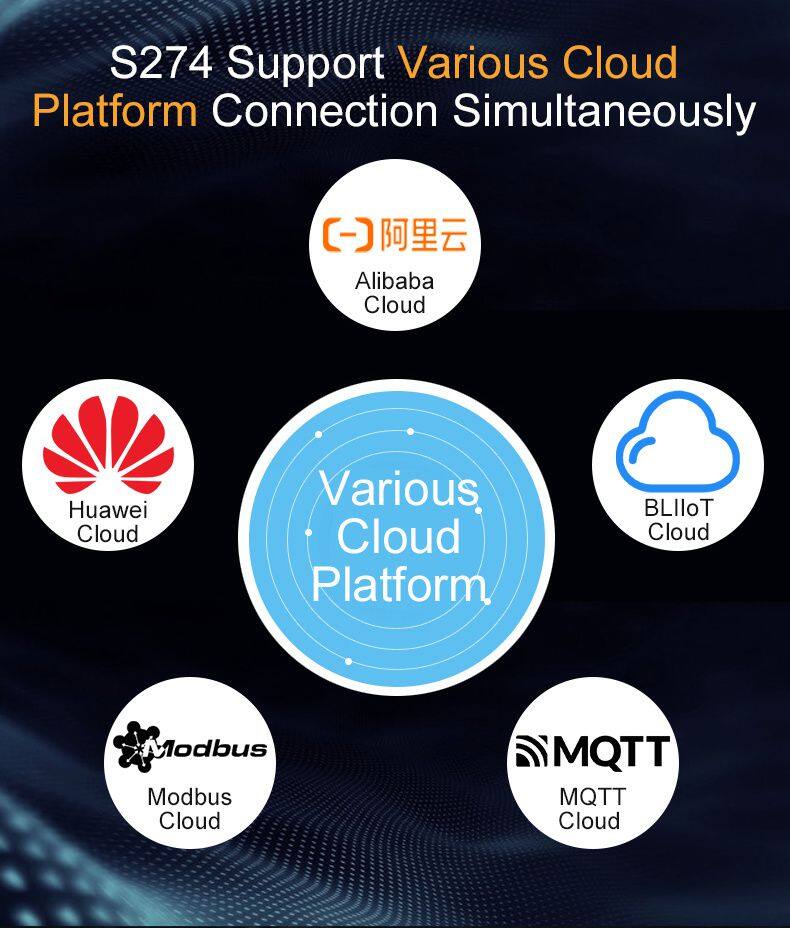

The RTU supports BLIIoT IoT RTU protocol, Modbus RTU over TCP protocol, Modbus TCP protocol, MQTT protocol, which can communicate directly with the server, cloud platform or SCADA.

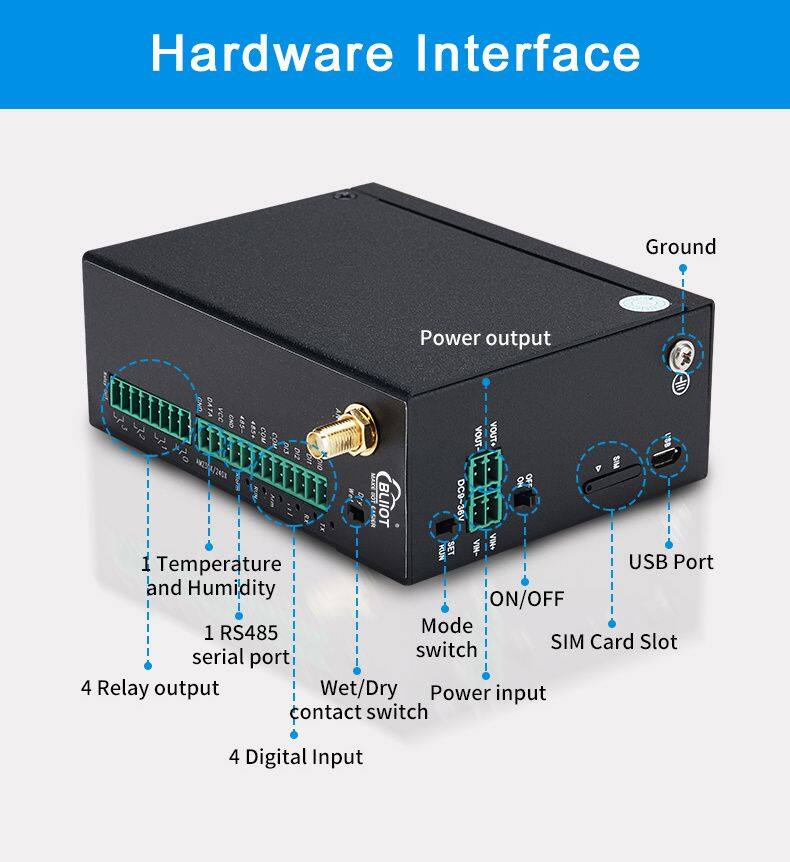

Detailed Photos


Product Parameters


CategoryParameterDescription
PowerInput VoltageDC 9~36V
Power ConsumptionNormal: 50mA@12V, Max: 150mA@12V
Output1 Channel; Voltage: 9~36V DC; Current: 1500mA@12V(Max)
ProtectionReverse wiring prevention;
ESD Air: 15KV; Surge: 4KV
Backup Battery3.7V/850mA (It is optional. Default: Without battery)
USBUSB1xMini USB
Serial PortQTY1xRS485
Baud Rate1200bps-115200bps
Data Bit8
Parity BitNone, Even, Odd
Stop Bit1, 2
ProtocolModbus RTU(slave), Modbus RTU(master)
ProtectionESD Contact: 8KV; Surge: 4KV(8/20us)
Digital InputQTY4 Channel
TypeSupport both Wet contact and Dry contact
Dry ContactClose: Short circuit; Open: Open circuits
Wet ContactClose: 10~30V; Open: 0~3V
OthersDIN0 as a high-speed pulse counter, sampling frequency: 1MHz; DIN1~3 as low-speed pulse counter, anti-shake time can be set 1~2000ms, default 1ms; DIN1 with arm and disarm function;
Protection2KVrms
Digital OutputQTY4 Channel
TypeRelay output (5A@30VDC, 5A@250VAC)
OthersThe first DO can set time to control by authorize number; Custom setting close and open times
Protection2KVrms
Temperature&Humidity (AM2301)Resolution16bit(0.1%RH, 0.1°C)
Sampling Rate200ms
Temperature Range-40 to +80°C
Accuracy0.5°C
Humidity Range0 to 99RH%
Accuracy3%RH
4GSIMDrawer type, Support 1.8V/3V SIM/UIM card, Built-in 15KV ESD protection
SIM Slot1
SoftwareInternet ProtocolIPV4, TCP/UDP, Modbus RTU, Modbus TCP, MQTT, BLIIoT IoT RTU
Indicator4G signal, running, arming and disarming, 485  transmit-receive
ConfigurationPC software configuration, support WIN XP, WIN 7, WIN 8 and WIN 10
Slave Connection16 devices, Max 320 I/O data points(Bool, 16bit, 32bit, 64bit)
Transparent TransmissionSupport
SMS CommandSupport
Login PackageSupport custom login package
Heartbeat PackageSupport custom heartbeat package
StorageBuilt in 32G SD card, capable of storing up to 100,000 historical records
SafetyMTBF≥100,000 hours
EMCEN 55022: 2006/A1: 2007 (CE &RE) Class B
IEC 61000-4-2 (ESD) Level 4
IEC 61000-4-3 (RS) Level 4
IEC 61000-4-4 (EFT) Level 4
IEC 61000-4-5 (Surge)Level 3
IEC 61000-4-6 (CS)Level 4
IEC 61000-4-8 (M/S) Level 4
OthersCE, FCC, RoHS
EnvironmentWorking-45~85°C, 5~95% RH
Storage-45~105°C, 5~95% RH
OthersShellMetal
Size108x82x40mm
ProtectionIP30
InstallationWall-mounting or DIN Rail mounting.
