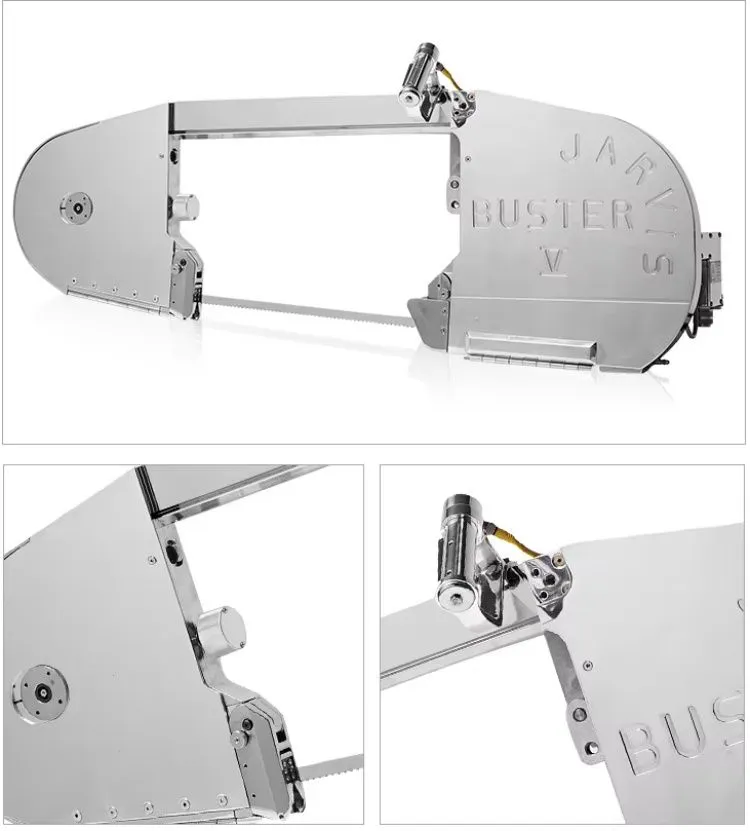

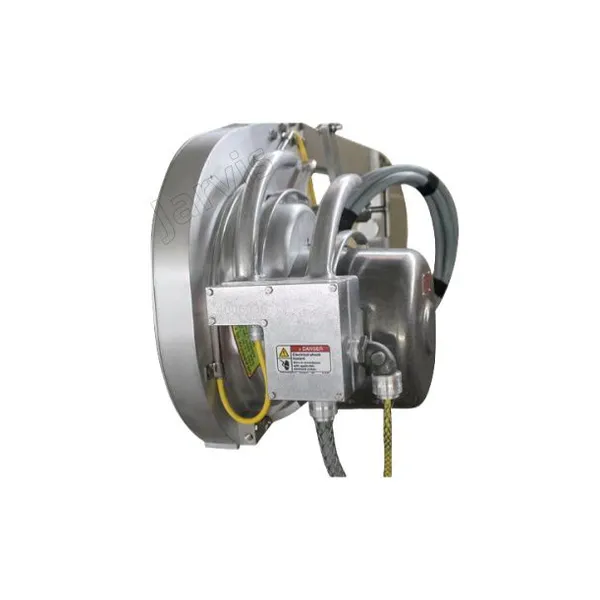

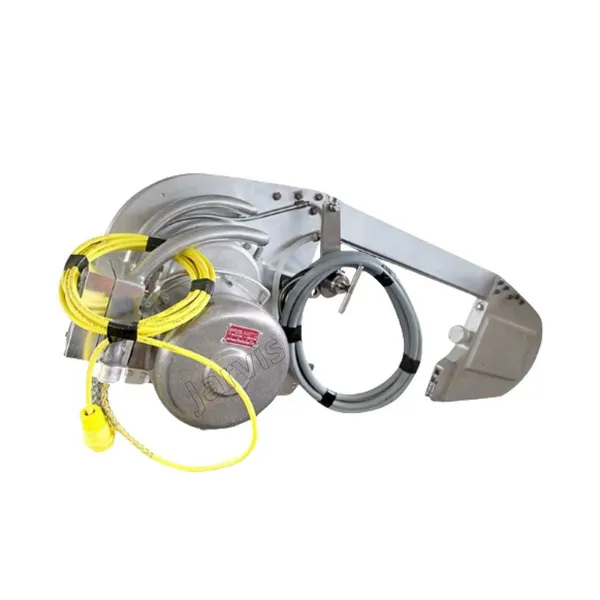

Help CenterJarvis Buster V Loin Drop -- Electrically Powered Bandsaw, Dropping,abattoir Slaughter and Meat Processing Equipment

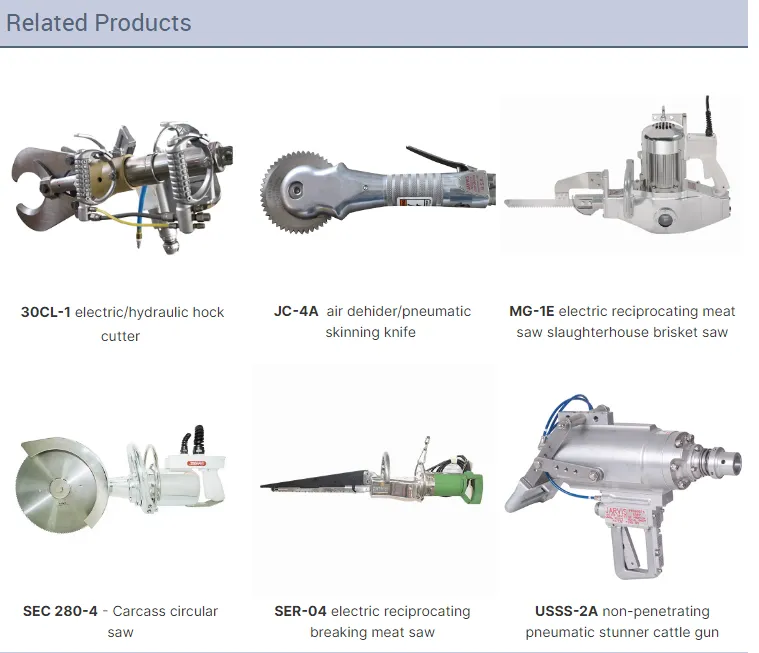

Related Products
-
Jarvis Slaughter Houses Butchery Knives Tools Skinning Knife Smallwares Boning Knife Skinning Knife Trimming Knife Butcher Knives Chopping Knives Axes CleaversUS$ 2 - 4.4MOQ: 30 Pieces -
Jarvis Skinning Knife 18cm Blade Slaughter Houses Butchery Knives Tools Skinning Knife Smallwares Boning Knife Skinning Knife Trimming Knife Butcher Knives Chopping Knives Axes CleaversUS$ 2 - 5MOQ: 50 Pieces
-
Jarvis Cutting Knife 15cm Blade Slaughter Houses Butchery Knives Tools Skinning Knife Smallwares Boning Knife Skinning Knife Trimming Knife Butcher Knives Chopping Knives Axes CleaversUS$ 2 - 5MOQ: 50 Pieces
-
Jarvis Cutting Knife 18cm Blade Slaughter Houses Butchery Knives Tools Skinning Knife Smallwares Boning Knife Skinning Knife Trimming Knife Butcher Knives Chopping Knives Axes CleaversUS$ 2 - 5MOQ: 50 Pieces
-
Jarvis Boning Knife 16cm Blade Slaughter Houses Butchery Knives Tools Skinning Knife Smallwares Boning Knife Skinning Knife Trimming Knife Butcher Knives Chopping Knives Axes CleaversUS$ 2 - 5MOQ: 50 Pieces

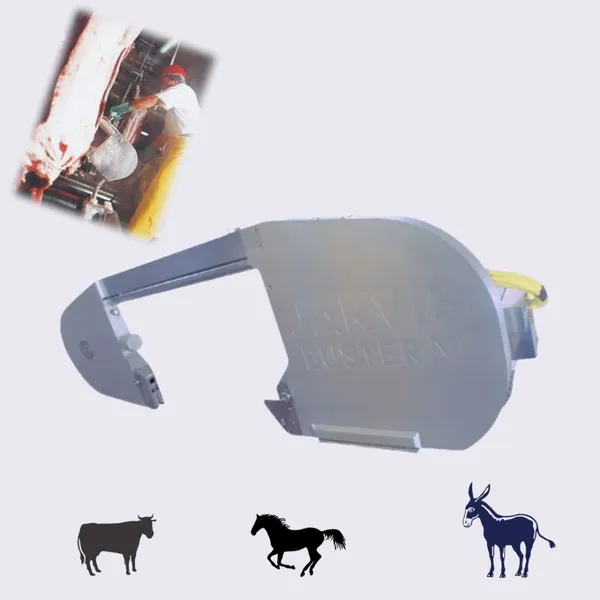

Use worldwide for splitting fat cattle,bulls,oxen and horse
The largest Jarvis splitting saw,suitable for the largest carcasses
Superior blade life:400-600 carcasses per blade

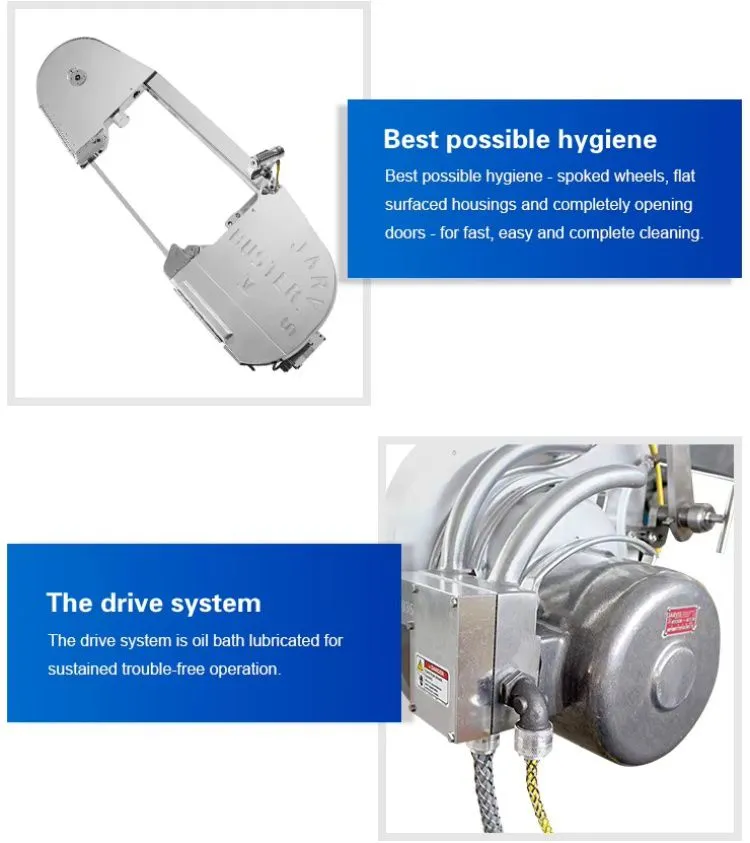

Best possible hygiene-spoked wheels,flat surfaced housings and completely opening doors-for fast,easy and complete cleaning

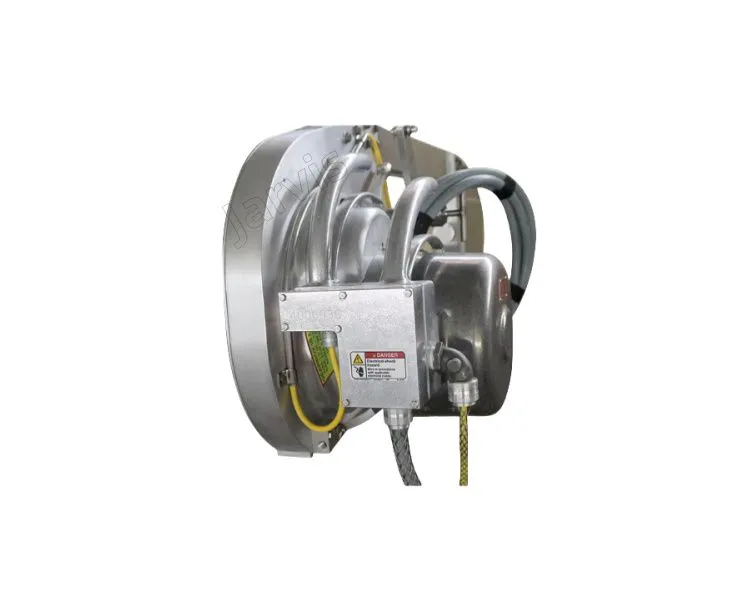

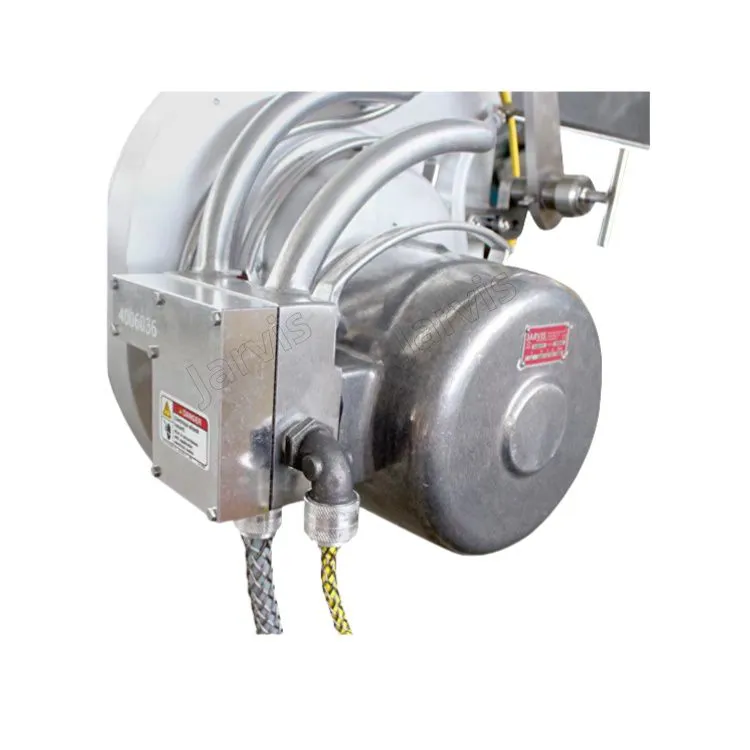

The drive system is oil bath lubricated for sustained trouble-free operation

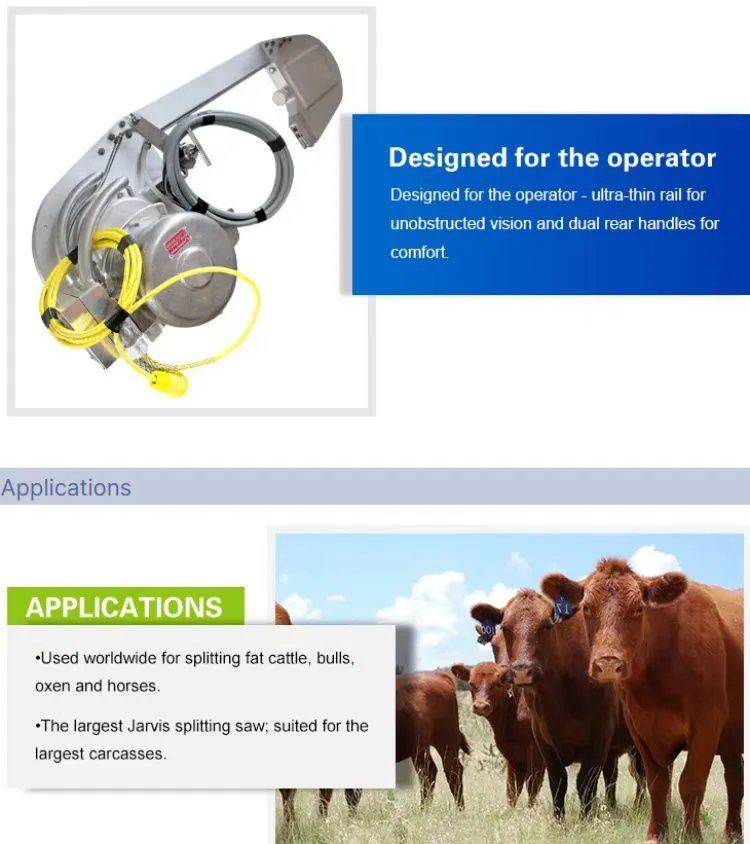

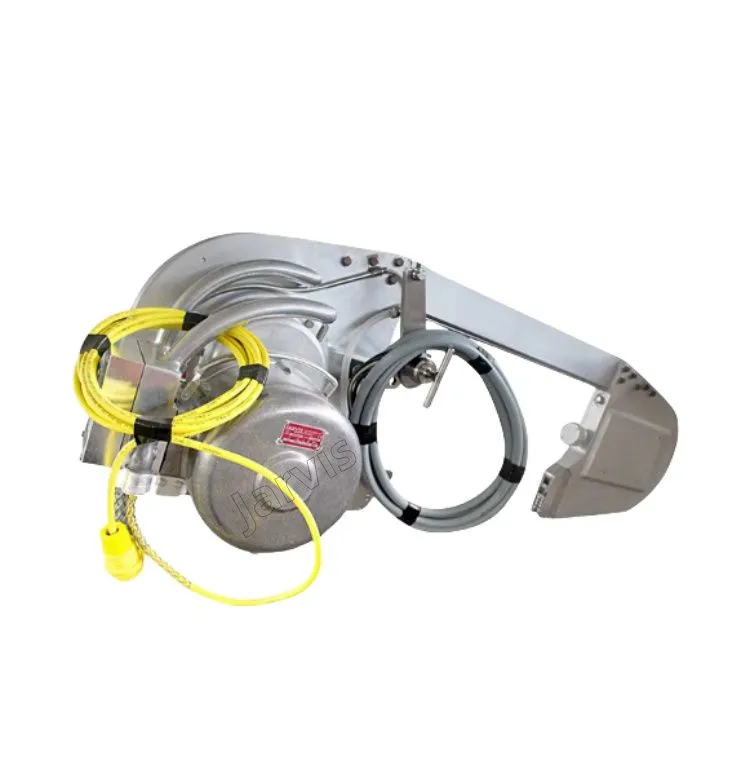

Designed for the operator-ultra-thin rail for unobstructed vision and dual rear handles for comfort.

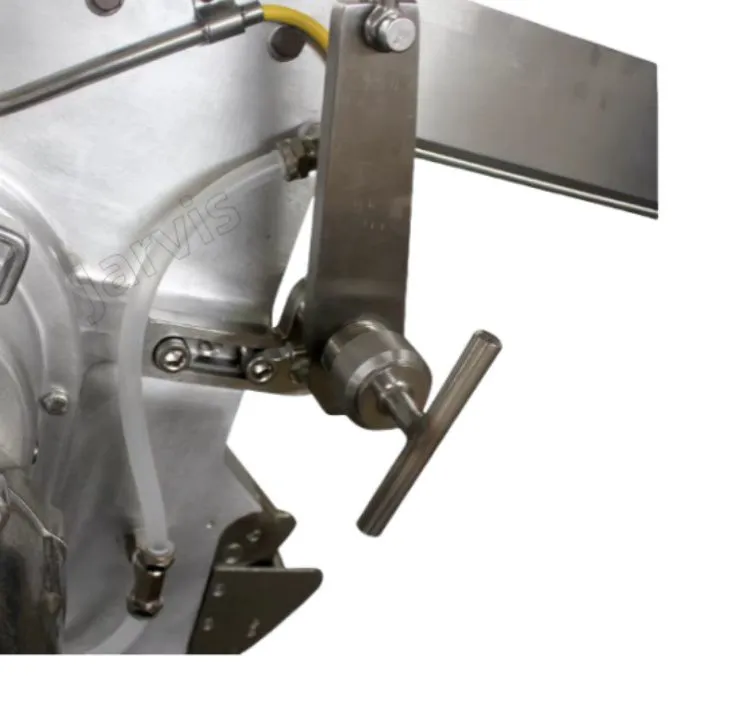

Anti-tie down controls and totally enclosed electric motor for operator safety.
Meets national and international requirements for hygiene and safety.
Parameter:
Motor power: 3.3hp 2500W
Operating voltage: 460/230V 3PH 60Hz
Capacity: 180 head/hour
Control handles: Electric dual anti-tie down
Distance between Guides: 19.75IN 502MM
Blade length: 127in 3226MM
Overall length: 57in 1448MM
Drive wheel speed: 115dB 0.6m/Sec²
Vibration(Less than): 115dB 0.6m/Sec²
Weight: 196lbs 88.9kg
