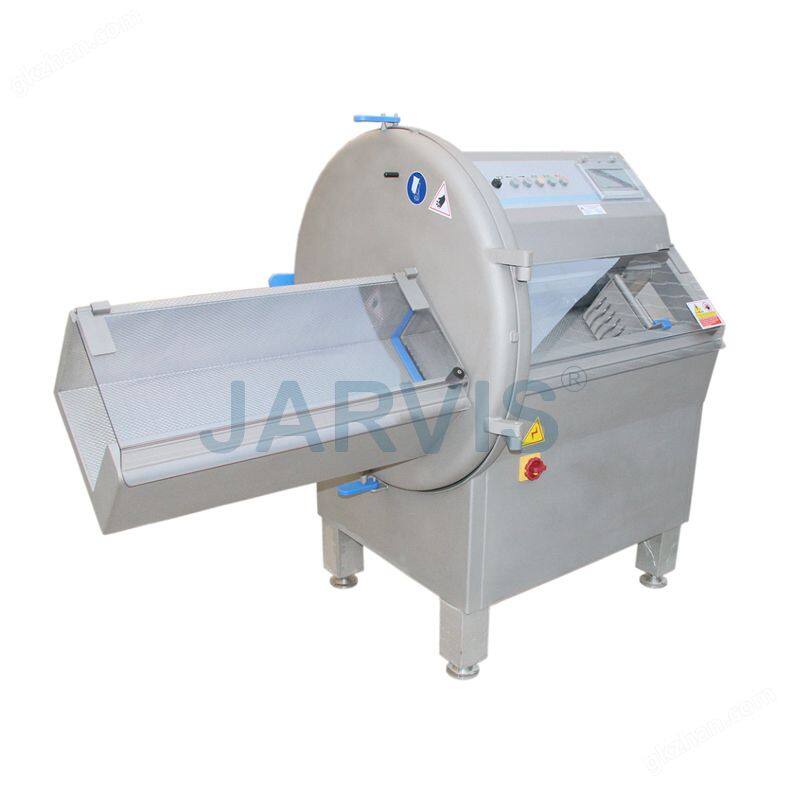

Jarvis Automatic slicing/chopping machine EDGE-H702-21

It mainly cuts frozen meat, fish, cheese, bacon, sausage and other raw materials into the meat slices required by the user. Replacing the serrated cutter can also cut frozen meat with bone into chunks or segments. It is a high-efficiency and high-precision meat slicing machine, suitable for catering distribution companies, hotels, schools, central kitchens, meat processing factories and so on.

Product features:

1. The whole body of the equipment is made of SUS304 stainless steel, and the body is sprayed with silver scrub to reduce corrosion and increase beauty. The connection part is fully welded.

2. Safe and reliable protection performance: The equipment is equipped with three layers of protection (cutter brake device, cutting bin door and material door induction switch).

3. Circuit configuration error/lack of phase overvoltage protector. And can freely set the overvoltage/undervoltage protection value to start the automatic power off protection.

4. Humanized design feeding system and grab structure, can freely set fixed reset position, shorten production time.

5. The design of the propulsive screw structure reduces the propulsive stagnation rate and improves production efficiency and production quality.

6. Control the advance distance of the propulsion device through the display screen to adjust the thickness of the cutting material.

7. The meat slices are not stick to the knife, and the thickness is even and neat.

8. The machine is equipped with a flat cutter or a serrated cutter. The serrated cutter can cut meat with bone.

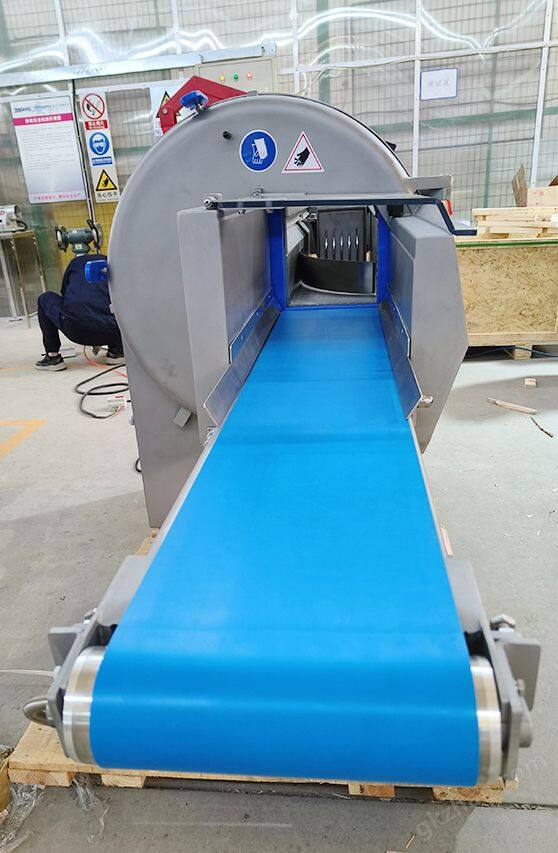

9.25 Conveyor belt type can be set delay dividing function, can be set 1-99 pieces/piece.

10. Slicing/cutting function can be used alone and can be used with other production equipment in the workshop.

Model: EDGE-H702-25 (Optional with fractional function)

Type: Slicing/chopping machine

Yield: 210 tablets/min

Bunker length: 680mm

Bin cross-sectional area: 250 x 198mm

Section thickness: 1-30mm

Power supply: 380V

Discharge bin size: 835mm

Body material: SUS304 stainless steel

Cutting temperature: above -4℃

Main motor power: 4.0KW

Total power: 4.8KW

Size: 1880×980×1400mm

Weight: 500Kg
