Product Details
| Brand Name | Geehy | Place of Origin | China | |
| Model Number | APM32F091VCT6 | Package | LQFP32/48/64 |
Product Description
Description:

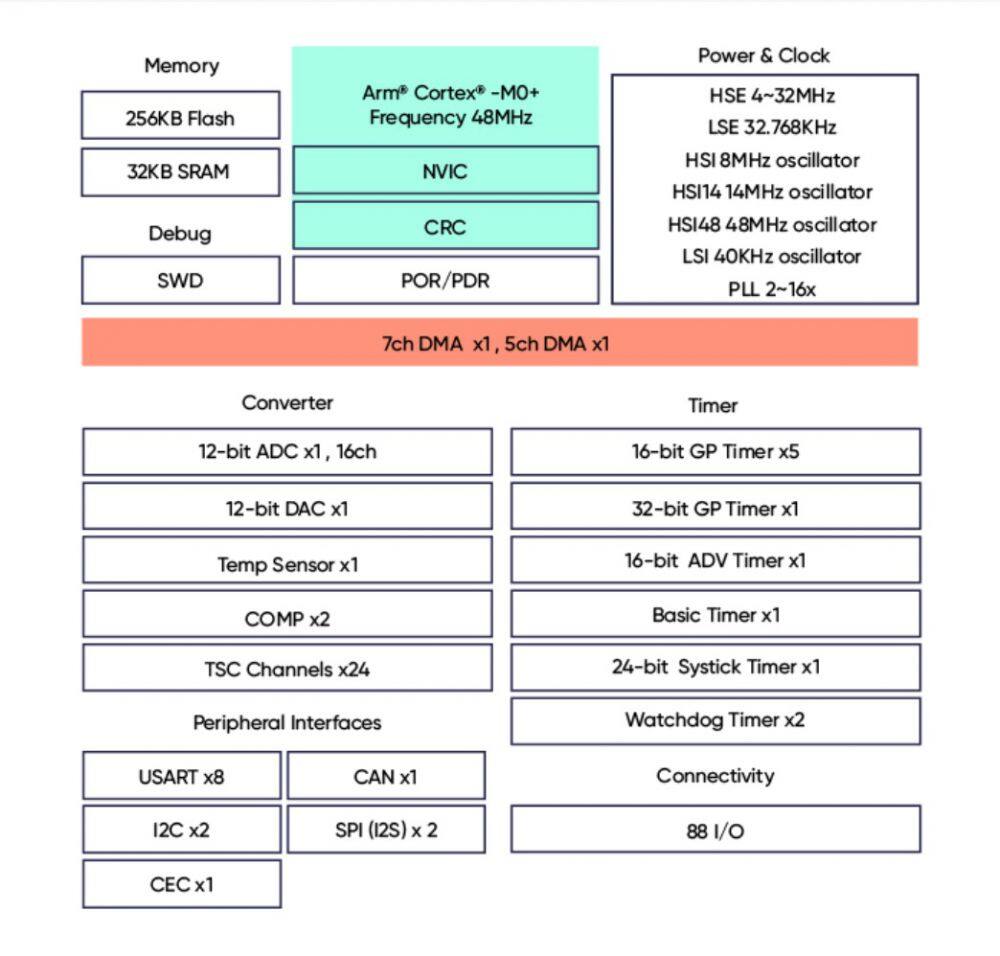

APM32F091xBxC series MCU, based on Arm Cortex-M0+ core Supports 256KB on-chip flash memory, provides a variety of communication interfaces, up to 8 USART to enhance the communication function, built-in HDMI CEC and TSC capacitive touch function; Supports CAN protocol communication, the operating temperature range of -40 ℃ ~ +105 ℃, is suitable for expanding the smart home appliances, industrial equipment and automotive electronics and other applications.
| Part No. | Frequency (MHz) | FLASH(KB) | SRAM(KB) | SDRAM | FPU | I/Os | Vmin(V) | Vmax(V) | GPTMR (16bit) | GP TMR(32bit) | Advanced TMR (16bit) | Basic TMR | Systick (24bit) | IWDG | WWDG | RTC | ADC 12-bit Cell | ADC 12-bit channels | DAC 12-bit Cell | DAC 12-bit channels | Analog Comparator | TSC (Channels) | SPI | I2S | I2C | U(S)ART | CAN | SDIO | USB Device | CEC | Package |
| APM32F091CBT6 | 48 | 128 | 32 | 0 | 0 | 38 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 10 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 6 | 1 | 0 | 0 | 1 | LQFP48 |
| APM32F091CBU6 | 48 | 128 | 32 | 0 | 0 | 38 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 10 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 6 | 1 | 0 | 0 | 1 | QFN48 |
| APM32F091CCT6 | 48 | 256 | 32 | 0 | 0 | 38 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 10 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 6 | 1 | 0 | 0 | 1 | LQFP48 |
| APM32F091CCU6 | 48 | 256 | 32 | 0 | 0 | 38 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 10 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 6 | 1 | 0 | 0 | 1 | QFN48 |
| APM32F091RBT6 | 48 | 128 | 32 | 0 | 0 | 52 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 16 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 8 | 1 | 0 | 0 | 1 | LQFP64 |
| APM32F091RCT6 | 48 | 256 | 32 | 0 | 0 | 52 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 16 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 8 | 1 | 0 | 0 | 1 | LQFP64 |
| APM32F091VBT6 | 48 | 128 | 32 | 0 | 0 | 88 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 16 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 8 | 1 | 0 | 0 | 1 | LQFP100 |
| APM32F091VCT6 | 48 | 256 | 32 | 0 | 0 | 88 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 16 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 8 | 1 | 0 | 0 | 1 | LQFP100 |
