Geehy APM32F091CBT6 MCU STMicroelectronics Domestic Substitution
Negotiable
MOQ: 3000 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Geehy
Place of Origin:
China
Model Number:
APM32F091CBT6
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Geehy APM32F091CBT6 MCU STMicroelectronics Domestic SubstitutionNegotiableMOQ: 3000 Units -
Geehy APM32F072CBT7 MCU STMicroelectronics Domestic SubstitutionNegotiableMOQ: 3000 Units
-
Geehy APM32F072C8U6 MCU STMicroelectronics Domestic SubstitutionNegotiableMOQ: 3000 Units
-
Geehy APM32F072CBU6 MCU STMicroelectronics Domestic SubstitutionNegotiableMOQ: 3000 Units
-
Geehy APM32F072R8T6 MCU STMicroelectronics Domestic SubstitutionNegotiableMOQ: 3000 Units
Brand Name
Geehy
Place of Origin
China
Model Number
APM32F091CBT6
Package
LQFP32/48/64
Description:

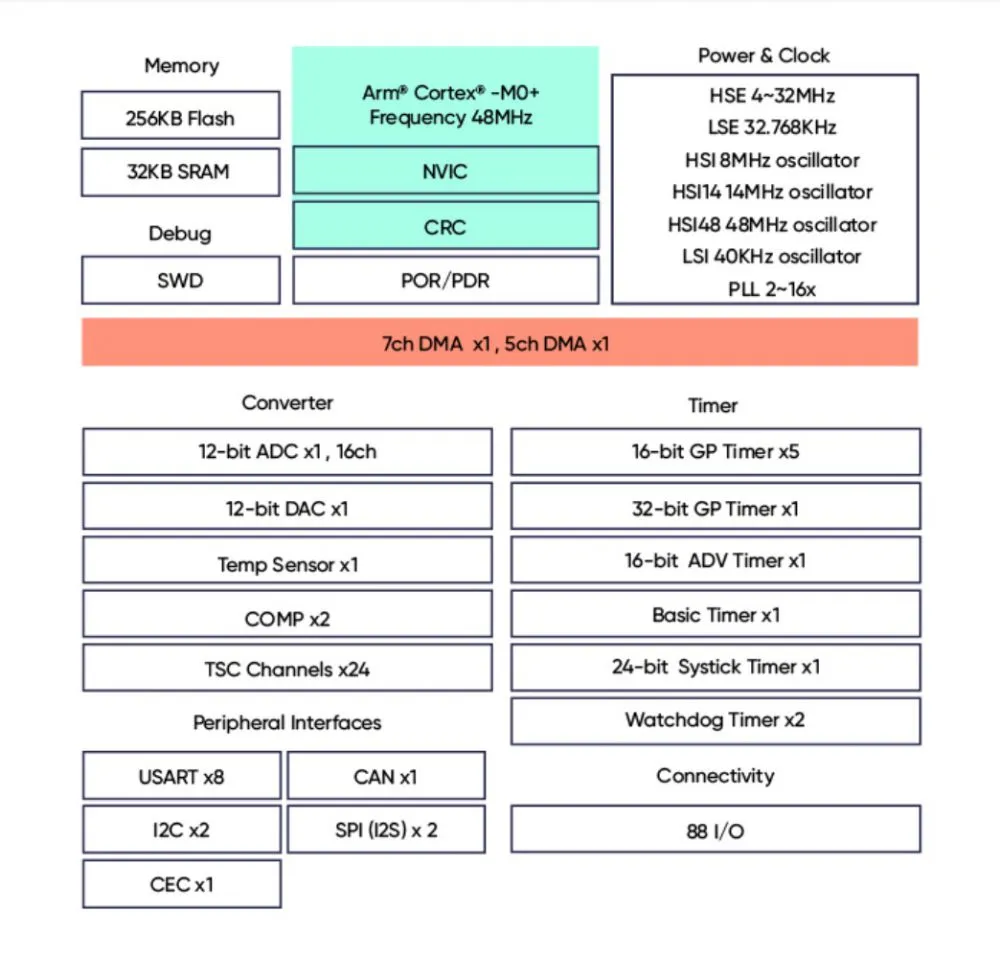

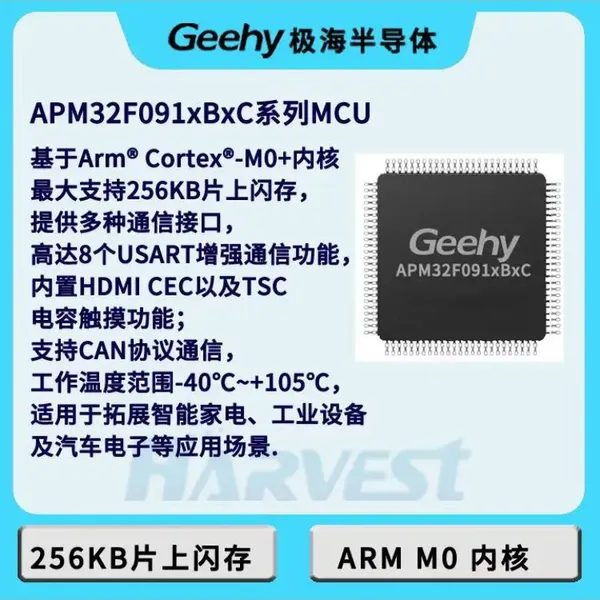

APM32F091xBxC series MCU, based on Arm Cortex-M0+ core Supports 256KB on-chip flash memory, provides a variety of communication interfaces, up to 8 USART to enhance the communication function, built-in HDMI CEC and TSC capacitive touch function; Supports CAN protocol communication, the operating temperature range of -40 ℃ ~ +105 ℃, is suitable for expanding the smart home appliances, industrial equipment and automotive electronics and other applications.
| Part No. | Frequency (MHz) |
FLASH(KB) | SRAM(KB) | SDRAM | FPU | I/Os | Vmin(V) | Vmax(V) | GPTMR (16bit) |
GP TMR(32bit) |
Advanced TMR (16bit) |
Basic TMR |
Systick (24bit) |
IWDG | WWDG | RTC | ADC 12-bit Cell |
ADC 12-bit channels |
DAC 12-bit Cell |
DAC 12-bit channels |
Analog Comparator |
TSC (Channels) |
SPI | I2S | I2C | U(S)ART | CAN | SDIO | USB Device |
CEC | Package |
| APM32F091CBT6 | 48 | 128 | 32 | 0 | 0 | 38 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 10 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 6 | 1 | 0 | 0 | 1 | LQFP48 |
| APM32F091CBU6 | 48 | 128 | 32 | 0 | 0 | 38 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 10 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 6 | 1 | 0 | 0 | 1 | QFN48 |
| APM32F091CCT6 | 48 | 256 | 32 | 0 | 0 | 38 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 10 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 6 | 1 | 0 | 0 | 1 | LQFP48 |
| APM32F091CCU6 | 48 | 256 | 32 | 0 | 0 | 38 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 10 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 6 | 1 | 0 | 0 | 1 | QFN48 |
| APM32F091RBT6 | 48 | 128 | 32 | 0 | 0 | 52 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 16 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 8 | 1 | 0 | 0 | 1 | LQFP64 |
| APM32F091RCT6 | 48 | 256 | 32 | 0 | 0 | 52 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 16 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 8 | 1 | 0 | 0 | 1 | LQFP64 |
| APM32F091VBT6 | 48 | 128 | 32 | 0 | 0 | 88 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 16 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 8 | 1 | 0 | 0 | 1 | LQFP100 |
| APM32F091VCT6 | 48 | 256 | 32 | 0 | 0 | 88 | 2 | 3.6 | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 16 | 1 | 2 | 2 | 24 | 2 | 2 | 2 | 8 | 1 | 0 | 0 | 1 | LQFP100 |
