Product Details
| Brand Name | Geehy | Place of Origin | China | |
| Model Number | APM32F030K8T6 | Package | LQFP32/48/64 |
Product Description
Description:

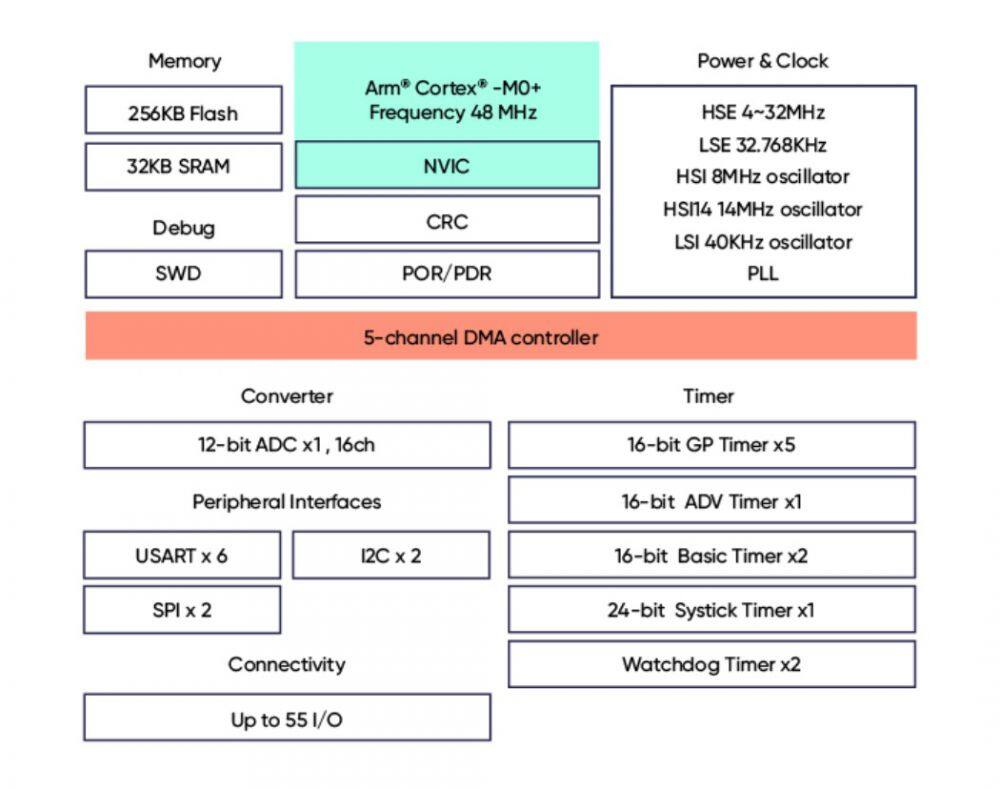

The industrial-grade general-purpose APM32F030x6x8 series MCUs, based on the 32-bit Arm?Cortex?-M0+ core, have been comprehensively upgraded in terms of product reliability, stability, and power consumption, and feature high-efficiency processing algorithms for real-time processing of large amounts of instruction information, built-in RTC to support calendar functions, and a high-precision 12-bit ADC for dynamic high-precision real-time sampling; With the integration of enhanced real-time control capability and rich peripheral resources, this series of chips can help customers obtain more complex and innovative product functions at a more economical cost. Currently, the chips have been successfully applied to fans, rangefinders, smoke alarms and temperature guns.
| Part No. | Frequency MHz | Flash KB | RAM KB | EMMC (SDRAM) | FPU | I/Os | Vmin (V) | Vmax (V) | GPTMR 16-bit | GPTMR 32-bit | Advanced TMR 16-bit | Basic TMR | SysTick 24-bit | IWDT | WWDT | RTC | ADC 12-bit cell | ADC 12-bit channels | DAC 12-bit cell | DAC 12-bit channels | Analog Comparator | TSC Channels | SPI | I2S | I2C | U(S)ART | CAN | SDIO | USB | CEC | Package |
| APM32F030K6T6 | 48 | 32 | 4 | 0 | 0 | 26 | 2 | 3.6 | 4 | 0 | 1 | 0 | 1 | 1 | 1 | 1 | 1 | 10 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 0 | LQFP32 |
| APM32F030K6T7 | 48 | 32 | 4 | 0 | 0 | 26 | 2 | 3.6 | 4 | 0 | 1 | 0 | 1 | 1 | 1 | 1 | 1 | 10 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 0 | LQFP32 |
| APM32F030K6U6 | 48 | 32 | 4 | 0 | 0 | 26 | 2 | 3.6 | 4 | 0 | 1 | 0 | 1 | 1 | 1 | 1 | 1 | 10 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 0 | QFN32 |
| APM32F030K8T6 | 48 | 64 | 8 | 0 | 0 | 26 | 2 | 3.6 | 4 | 0 | 1 | 0 | 1 | 1 | 1 | 1 | 1 | 10 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 0 | LQFP32 |
| APM32F030C6T6 | 48 | 32 | 4 | 0 | 0 | 39 | 2 | 3.6 | 4 | 0 | 1 | 0 | 1 | 1 | 1 | 1 | 1 | 10 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 0 | LQFP48 |
| APM32F030C8T6 | 48 | 64 | 8 | 0 | 0 | 39 | 2 | 3.6 | 5 | 0 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 10 | 0 | 0 | 0 | 0 | 2 | 0 | 2 | 2 | 0 | 0 | 0 | 0 | LQFP48 |
| APM32F030R8T6 | 48 | 64 | 8 | 0 | 0 | 55 | 2 | 3.6 | 5 | 0 | 1 | 1 | 1 |
