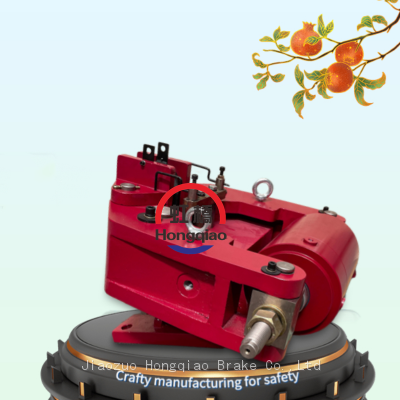

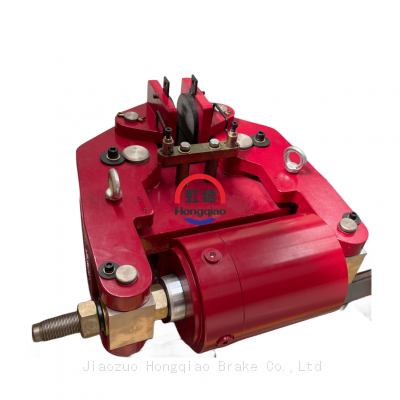

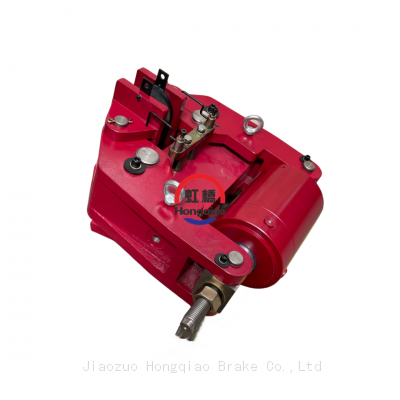

SBD-D Series Emergency Disc Brake

Product detail:
    The fail-safe caliper brake of this series is a device that can slow down, stop or maintain the stop state of moving parts (or moving machinery). It is a mechanical part that stops or decelerates the moving parts in the machine. Commonly known as brake . In order to reduce the braking torque and structural size, the brake is usually installed on the high-speed shaft of the equipment, but large equipment with high safety requirements (such as mine hoist, elevator, etc.) should be installed on the low-speed shaft near the working part of the equipment.

1)  Main components:
    Brake frame;
    Brake components;
    Control device

2) Product features:
    Normally closed design, safe and reliable.
    Special disc spring applies force to brake, and hydraulic drive releases.
    Sensitive action, short closing (closing) time.
    Switches such as opening limit, pad wear and limit limit can be selected for signal display or interlock protection.
    High performance asbestos-free hard friction liner, stable friction coefficient, no damage to the brake disc and insensitive to water medium and salt spray (sea water).
    Reasonable seal structure design and imported famous brand seals.
  Good effect and long service life; The installation position is flexible, and the use, adjustment and maintenance are simple.

3) Applicable fields:
    This type can be widely used for emergency safety braking of low-speed shafts of large and medium-sized cranes, port loading and unloading machinery and boom pitching mechanism, working braking and emergency safety braking of mining winch, hoist and high-power inclined belt conveyor, safety braking of driving mechanism of cable car and cable crane, and safety (emergency) braking of low-speed shafts of hoisting mechanism of special cranes such as casting crane.

4）Technical parameter:

6) Service conditions:
    *Ambient temperature: - 25 ºC -+40 ºC.
    *The altitude used shall not exceed 2000m.
    *There shall be no flammable, explosive gas and conductive dust around the brake that can corrode metal and insulation. 3.5 Outdoor rain and snow erosion or corrosive gas and media shall be corrosion-resistant products.

7)   Overall size and installation size
