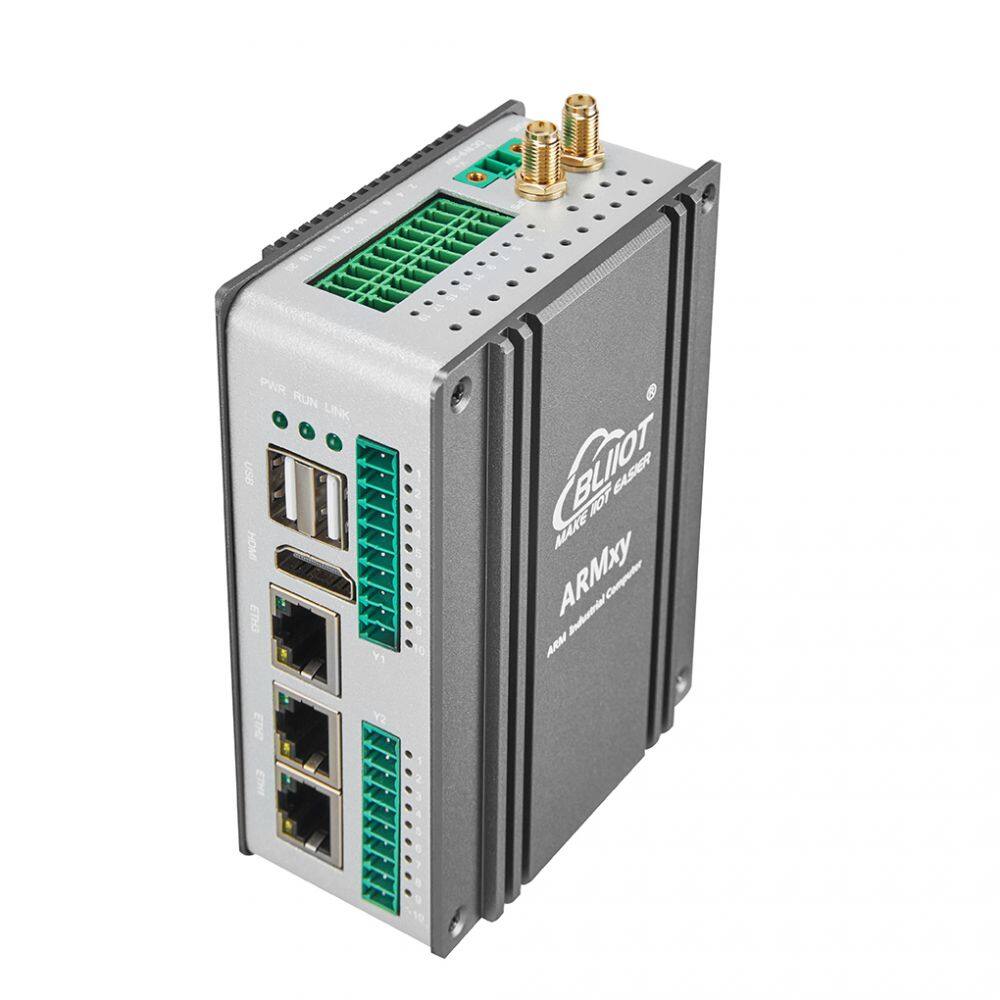

The ARMxy BL410 series is a versatile industrial ARM controller designed for flexible I/O configuration. It is based on the RK3568J/RK3568B2 processor, featuring aquad-core ARM Cortex-A55 architecture with clock speed up to 1.8GHz/2.0GHz. The device is equipped with 8/16/32GB eMMC storage and various combinations of 1/2/4GB LPDDR4X RAM. Additionally, it includes a built-in 1TOPS computing power Neural Processing Unit (NPU) for supporting deep learning tasks.
The BL410 series ARM embedded computer offers a rich array of interfaces including 1 x 1000Mhz Ethernet port, 2 x optional 100Mhz Ethernet ports, 2 x USB 2.0 ports, 1 x optional HDMI 2.0a port, 1 x optional X series IO board, 2 x optional Y series IO boards. These interfaces support various functions such as communication, PWM output, pulse counting, and data acquisition and control. The BL410 also supports hardware decoding of 1080P@60fps videos.
Additionally, it features a built-in Mini PCIe interface to support communication modules such as Bluetooth, WiFi, and 4G modules.
The BL410 series ARM embedded computers support Linux-4.19.232, Linux-RT-4.19.232 kernels, Debian-10.13, Android 13, Docker containers, Node-RED, and Qt-5.15.2 for graphical interface development tools. In addition, BL410 is compatible with BLIoTLink industrial protocol conversion software for data collection and transformation, and can seamlessintegration with various mainstream IoT cloud platforms and industrial SCADA software. Users can leverage the BLRAT for remote access and maintenance of the BL410 embedded computer. Additionally, with support for Node-Red, users can rapidly develop IoT applications on the BL410.
The BL340 series ARM embedded computer has undergone rigorous electrical performance design and high-low temperature testing to ensure stability and reliability. It is designed for DIN35 rail mounting, making it suitable for various industrial application environments.
This embedded computer is widely used in industrial IoT, photovoltaic power generation and energy storage systems, automation control, and transportation and rail applications.
Product Selection Guide
The ARMxy series ARM embedded controllers adopt a flexible design concept, allowing users to customize ROM and RAM combinations by choosing different System-on-Module(SOM) boards as needed. Additionally, various X and Y boards can be selected to achieve diverse IO configurations, catering to the requirements of different application scenarios.
Product naming convention
Host Model Number - SOM Model Number - X Board Model Number - Y1 Board ModelNumber - Y2 Board Model Number
For example BL410-SOM410-X10, means 1 Ethernet port, 8GB eMMC storage, LPDDR4X is 1GByte, and 2 RS485
If you need to add WiFi, then you would append "W" to the host model number. For example: BL410W-SOM410-X10
If you need to add a 4G module, you would append "L" to the host model number. For example: BL410L-SOM410-X10
ARMxy BL410 Model List
| Model | ETH | USB | HDMI |
X board IO Slot |
Y board IO Slot |
Dimension |
| BL410 | 1x1000Mhz | 2 | X | 1x6PIN | X | 42x83x110mm |
| BL410A | 1x1000Mhz | 2 | X | 1x20PIN | X | 42x83x110mm |
| BL410B | 1x1000Mhz | 2 | X | 1x20PIN | 2 | 48x83x110mm |
| BL410C | 1x1000Mhz | 2 | X | 1x10PIN | X | 42x83x110mm |
| BL411 | 1x1000Mhz, 1x100Mhz | 2 | X | 1x6PIN | X | 42x83x110mm |
| BL411A | 1x1000Mhz, 1x100Mhz | 2 | X | 1x20PIN | X | 42x83x110mm |
| BL411B | 1x1000Mhz, 1x100Mhz | 2 | X | 1x20PIN | 2 | 48x83x110mm |
| BL412 | 1x1000Mhz, 2x100Mhz | 2 | 1 | 1x6PIN | X | 42x83x110mm |
| BL412A | 1x1000Mhz, 2x100Mhz | 2 | 1 | 1x20PIN | X | 42x83x110mm |
| BL412B | 1x1000Mhz, 2x100Mhz | 2 | 1 | 1x20PIN | 2 | 48x83x110mm |
ARMxy BL410 SOM Model List
| Model | MCU | Clock Speed | Kernel | NPU | eMMC | DDR4 | Temperature |
| SOM410 | RK3568J | 1.8GHz | 4 x A55 | 1TOPS | 8GByte | 1GByte | -40~85°C |
| SOM411 | RK3568J | 1.8GHz | 4 x A55 | 1TOPS | 16GByte | 2GByte | -40~85°C |
| SOM412 | RK3568J | 1.8GHz | 4 x A55 | 1TOPS | 32GByte | 4GByte | -40~85°C |
| SOM413 | RK3568B2 | 2.0GHz | 4 x A55 | 1TOPS | 4GByte | 1GByte | 0~70°C |
| SOM414 | RK3568B2 | 2.0GHz | 4 x A55 | 1TOPS | 8GByte | 2GByte | 0~70°C |
| SOM415 | RK3568B2 | 2.0GHz | 4 x A55 | 1TOPS | 8GByte | 4GByte | 0~70°C |
X Series IO Board Model List
| Model | RS232/RS485 | CAN | DI | DO | GPIO | PIN |
| X10 | 2 | x | x | x | x | 6PIN |
| X11 | 1 | 1 | x | x | x | 6PIN |
| X12 | x | x | 2 | 2 | x | 6PIN |
| X13 | x | x | 4 | x | x | 6PIN |
| X14 | x | x | x | 4 | x | 6PIN |
| X15 | x | x | x | x | 4 | 6PIN |
| X20 | 4 | x | x | x | x | 10PIN |
| X21 | 2 | 2 | 4 | 4 | x | 20PIN |
| X22 | 4 | x | 4 | 4 | x | 20PIN |
| X23 | 2 | x | 8 | 8 | x | 20PIN |
| X24 | 2 | x | 16 | x | x | 20PIN |
| X25 | 2 | x | x | 16 | x | 20PIN |
| X26 | x | x | x | x | 16 | 20PIN |
| X27 | 8 | x | x | x | x | 20PIN |
Y Series IO Board Model List
| Model | Description | Model | Description | |
| Y01 | 4DI+4DO, NPN | Y41 | 4AO, 0/4~20mA | |
| Y02 | 4DI+4DO, PNP | Y43 | 4AO, 0~5/10V | |
| Y03 | 4DI+4DO, Relay | Y46 | 4AO, ±5V/±10V | |
| Y11 | 8DI, NPN | Y51 | 2RTD, 3-Wire PT100 | |
| Y12 | 8DI, PNP | Y52 | 2RTD, 3-Wire PT1000 | |
| Y21 | 8DO, PNP | Y53 | 2RTD, 4-Wire PT100 | |
| Y22 | 8DO, NPN | Y54 | 2RTD, 4-Wire PT1000 | |
| Y24 | 4DO, Relay | Y56 | Resistance measurement | |
| Y31 | 4AI, single-ended, 0/4~20mA | Y57 | Voltage measurement | |
| Y33 | 4AI, single-ended, 0~5/10V | Y58 | 4TC | |
| Y34 | 4AI, differential, 0~5/10V | Y91 | 4 high-speed counting module | |
| Y36 | 4AI, differential, ±5V/±10V | Y61 | 4 RS485 or RS232 | |
| Y62 | 1CAN+3RS485 or RS232 |
| Hardware | Parameters |
| CPU | T507-H, 28nm |
| 4x ARM Cortex-A53 cores, with a clock speed up to 1.416GHz. | |
| GPU: G31 MP2, supporting OpenGL ES 1.0/2.0/3.2, Vulkan 1.1, and OpenCL2.0 | |
| Encoder: Supports hardware encoding of 4K@25fps H.264 video. | |
| Decoder: Supports hardware decoding of 4K@30fps H.265 video. | |
| ROM | eMMC 8/16GByte |
| RAM | DDR4 1/2GByte |
| ETH | RJ-45, 1~3, 1x1000M, 2x100M, ESD Level 3, EFT Level 3 |
| USB | 2x USB2.0 HOST(USB1, USB2), supports high-speed 480Mbps, full-speed 12Mbps, and low-speed 1.5Mbps modes, ESD Level 3 |
| HDMI | 1x HDMI2.0a, compatible with HDCP2.2, HDCP1.4 standard, supports up to 4K@30fps |
| IO Slot |
X series IO board slot: 1, X series IO board, support RS485, CAN, RS232, RS422, DI, DO, GPIO, etc; Y series IO board slot: 2, Y series IO board, support RS485, CAN, RS232, RS422, DI, DO, Relay output, AI, AO, PT100, PT1000, TC, etc. |
| LED | 1x power indicator light |
| 2x user-programmable indicator light | |
| Mini PCIE | 1, Supports Bluetooth, WiFi, 4G module, etc. |
| SIM Slot | 1 slot, NANO |
| Antenna | 2, For 4G/WIFI/GPS |
| Debug | 1x Micro USB debug port |
| SD Slot | 1 |
| Reset | 1 reset button |
| Watchdog | Onboard independent hardware watchdog |
| Power |
Rated DC 24V, supports wide voltage range of 9-36VDC Equipped with reverse polarity protection and overcurrent protection 3-pin terminal block with screw terminals |
| Grounding | 1-pin GND terminal |
| Installation | DIN35 rail mounting, wall mounting |
| Material | Aluminum alloy casing + stainless steel |
| Dimension | 110*83*42mm or 110*83*48mm |
