ASJ10-LD1C Measurement of Type A Residual Currrent Earth Leakage Relay for On-the-spot and Long-distance Testing and Resetting

ASJ10-LD1C Measurement of Type A Residual Currrent Earth Leakage Relay for On-the-spot and Long-distance Testing and Resetting thumbnail-1
ASJ10-LD1C Measurement of Type A Residual Currrent Earth Leakage Relay for On-the-spot and Long-distance Testing and Resetting thumbnail-2
ASJ10-LD1C Measurement of Type A Residual Currrent Earth Leakage Relay for On-the-spot and Long-distance Testing and Resetting thumbnail-3
ASJ10-LD1C Measurement of Type A Residual Currrent Earth Leakage Relay for On-the-spot and Long-distance Testing and Resetting thumbnail-4
ASJ10-LD1C Measurement of Type A Residual Currrent Earth Leakage Relay for On-the-spot and Long-distance Testing and Resetting photo-1
ASJ10-LD1C Measurement of Type A Residual Currrent Earth Leakage Relay for On-the-spot and Long-distance Testing and Resetting photo-2
ASJ10-LD1C Measurement of Type A Residual Currrent Earth Leakage Relay for On-the-spot and Long-distance Testing and Resetting photo-3
ASJ10-LD1C Measurement of Type A Residual Currrent Earth Leakage Relay for On-the-spot and Long-distance Testing and Resetting photo-4
US$ 91 - 91 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ASJ10-LD1C
Contact Supplier Request Quote Chat Now
Jiangsu Acrel Electrical Manufacturing CO.,LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Acrel
Place of Origin China
Model Number ASJ10-LD1C
Size Miniature
Usage Protective
Contact Load Low Power
Protect Feature Epoxy
Theory Electromagnetic Relay
Recommended by seller
AMC72L-E4/KC small power meter digital/three phase electronic meter$38.00 / Piece1 Piece
ATE series remote temperature sensor/small wireless temperature sensor/switchgear wireless temperature sensor$42.00 / Piece1 Piece
Acrel ADW210 series wireless multi circuits energy meter/three phase wireless energy meter/wireless smart energy meter$273.00 / Piece1 Piece
ASJ10-LD1C
* Measurement of AC-type after-current;
* Indicator of current off-limit alarm; The setting of rated residual action current ( see in the table 2);
* The setting of non-driving time of limitation ( see in the table 2);
* Two-pair relay output;
* Possessing the function of on-the-spot and long-distance testing and resetting；
ASJ10-LD1A
* The measurement of A-type after-current;
* The streamer display of current percentage;
* The setting of rated residual action current ( see in the table 2);
* The setting of non-driving time of limitation ( see in the table 2);
* Two- pair relay output(both of which can be set) *;
* Possessing the function of on-the-spot and long-distance testing and resetting
Technical Parameter
technical parameter
ASJ10-LD1C
ASJ10-LD1A
Input
Rated residual action current I△n
0.03、0.1、0.3、0.5(A)
0.03、0.05、0.1、0.3、0.5、1、3、5、10、
30(A)
Non-driving time of limitation △t
0.1、0.5(s)

0、0.06、0.1、0.2、0.3、0.5、0.8、1、4、
10(s
Rated residual non-action current I△no
50%I△n
50%I△n
performance characteristics
simple sinusoidal alternating current
simple sinusoidal alternating current and pulsating direct current
frequency
50Hz/60Hz
50Hz/60Hz
action error
-20% ~ -10%I△n
output
output mode
one is the normal closing and the other is for the transformation
one is the normal closing or opening, and the other is for the transformation
contact capacity
5A 250VAC 5A
30VDC
AL1:8A 250VAC 5A 30VDC AL2:6A 250VAC 5A 30VDC
reset mode
the on-the-spot one and the long-distance one,
the on-the-spot one, the long-distance one and the automatic one
power supply
voltage range
AC110V、AC220V
（permissible error±10%）
AC110V、AC220V、DC85-270V
（permissible error±10%）
power dissipation
≤5W
power frequency withstand voltage
The effective value of alternating current between the power supply, input and output: 2kV/1min
under the normal operation
temperature
operating temperature: -20℃ ~ +55℃
storage temperature: -30℃ ~ +70℃
humidity
≤95%RH, with moisture condensation, and corrosive gas place
Altitude
≤2000m
class of pollution
Grade three
installation category
Type Ⅲ
Residual Current CT
Type
Rated Current
L-45
16-100A
L-80
100-250A
L-100
250-400A
L-150
400-800A
L-200
800-1500A
Type
Rated Current
L-80*50II
16-200A
L-100*50II
16-100A
L-130*50II
100-200A
L-150*130II
100-300A
L-180II
100-200A
L-200*50II
250-400A
L-260-100II
450-800A
Typical connection
Wiring
Application
Solution

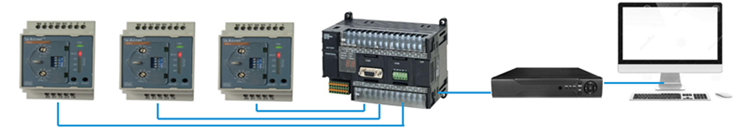

1. Through the PLC to collect the output state of the relay, and then judge the operation state of the relay.

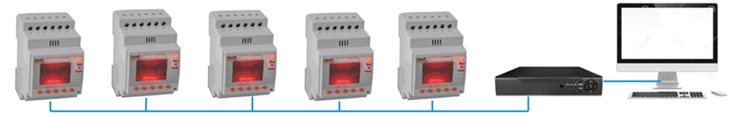

2. Through RS485 communication to network
