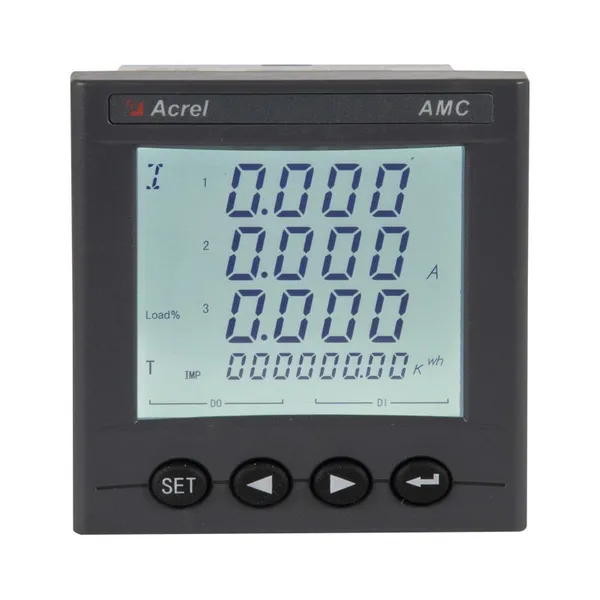

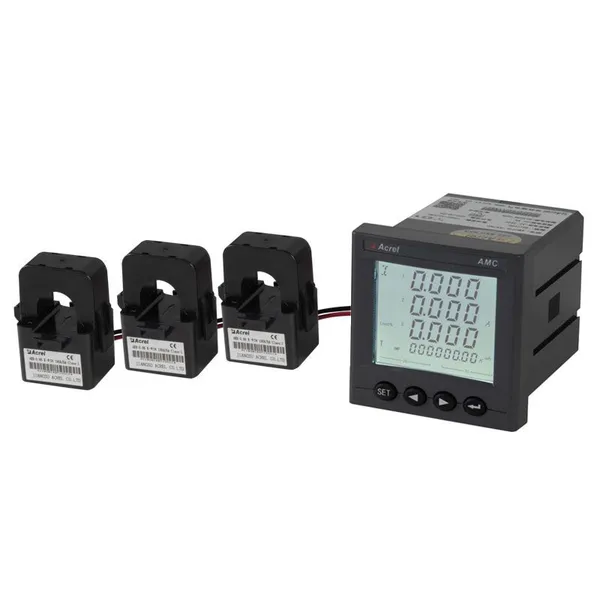

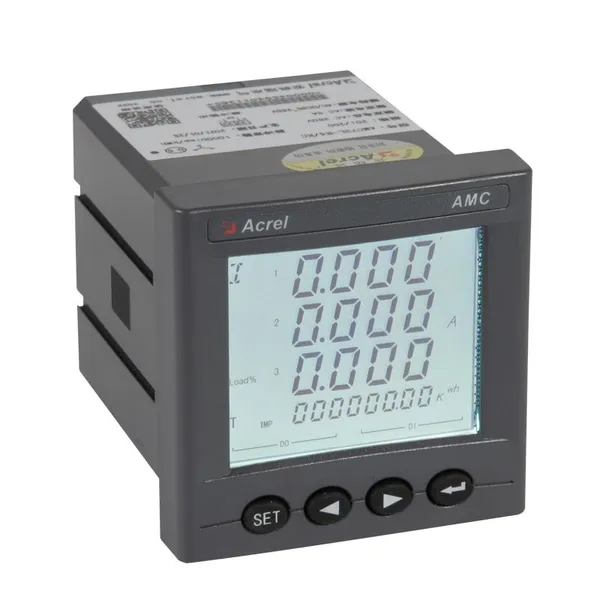

3 Phase 4 Wire Amp Volt Power Meter LCD AMC72L-E4/KC With Rs485 Commnucation
US$ 48 - 48
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
AMC96L-E4/KC Smart Power Collection And Monitoring Device Power Meter With RS485 4DI/2DO
-
Acrel AMC72L-AI/J Current Meter With 1 Channel Alarm LCD Display Single Phase Ammeters
-
Best Selling Acrel AMC72L-AI3 3 Phase LCD Programmable Current Meter
-
Best Selling Acrel AMC72L-AI3/C 3 Phase LCD Programmable Current Meter With RS485 Modbus Rtu
-
Best Selling Acrel AMC72L-AI3/K 3 Phase LCD Programmable Current Meter With 2DI+2DO
-
Best Selling Acrel AMC72L-AI3/J 3 Phase LCD Programmable Current Meter With 1 Channel Alarm Function
Product Details
| Brand Name | ACREL | Place of Origin | China | |
| Model Number | AMC72-E4/KC | Operating Temperature | -10~55 | |
| Dimensions | 75*75mm | Measuring Voltage Range | ~9999~+9999 | |
| Measuring Current Range | 0-999999 | Accuracy Class | 0.5 |
Product Description
General
AMC72L-E4/KC is an economical and practical, intelligent electricity collection and control device for collecting, monitoring and controlling the electrical parameters.
Electrical measurement:
Phase voltage, line voltage and phase current
Sub-phase active power and total active power
Sub-phase reactive power and total reactive power
Sub-phase apparent power and total apparent power
Sub-phasefactor and total power factor
Four-quadrant energy
Technical Features

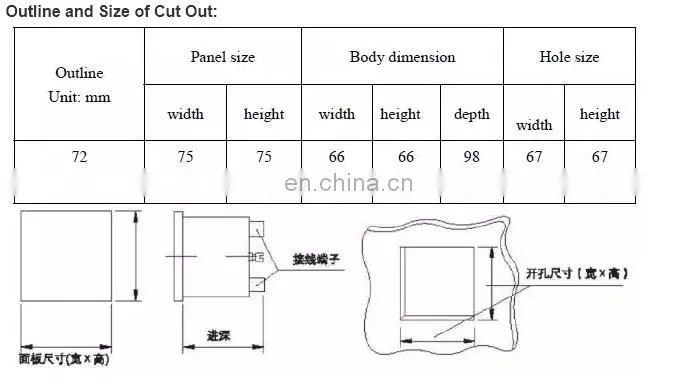

Outline size

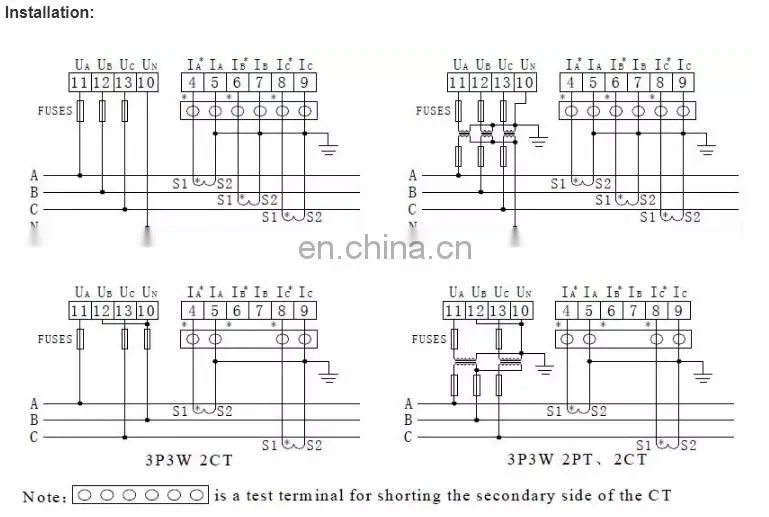

Wiring
Details
Shipping
