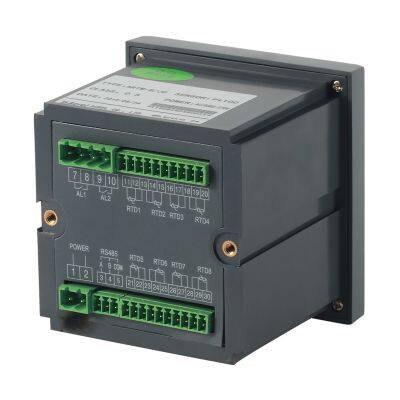

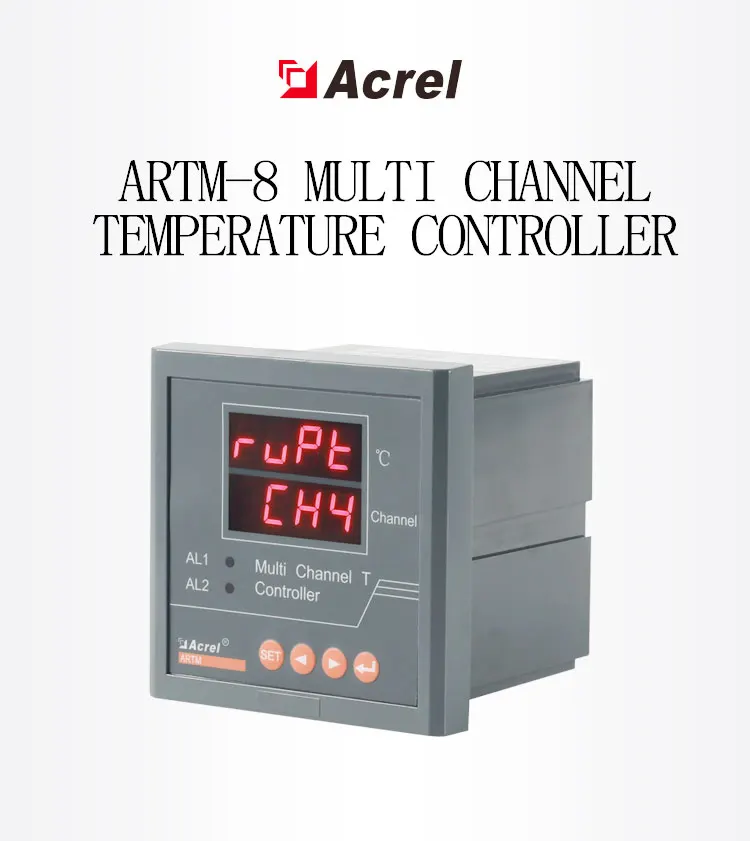

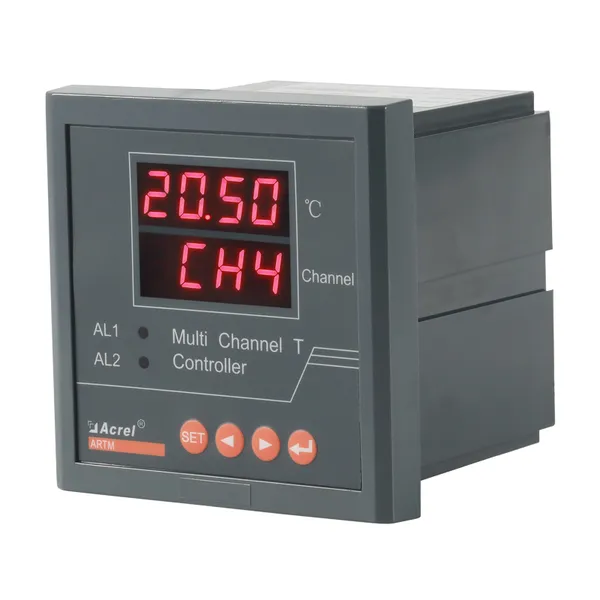

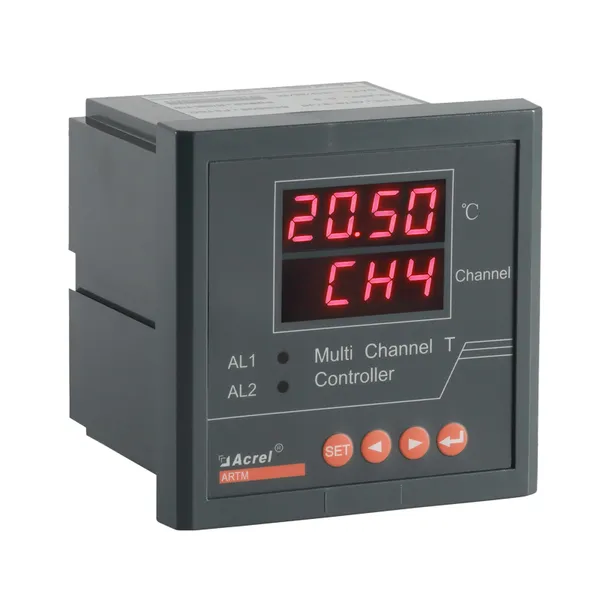

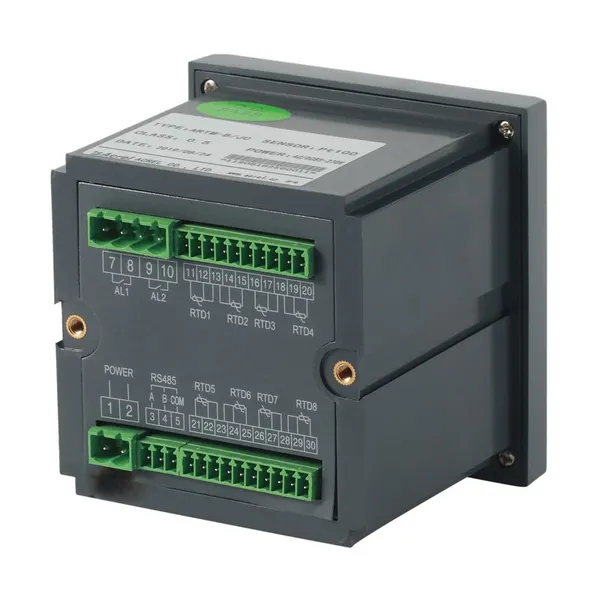

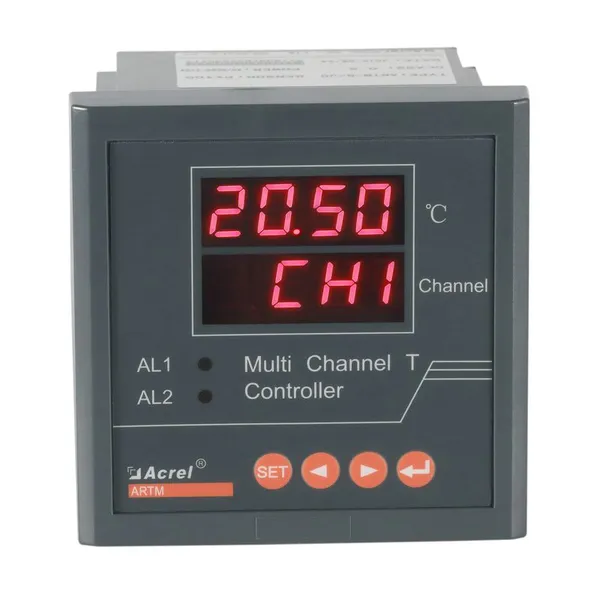

Acrel Multi-input Temperature Controller for Distribution Box ARTM-8
US$ 70 - 70
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ARTM-8
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel ASJ20-LD1C Protection Panel Earth Leakage RelayUS$ 91 - 91MOQ: 1 Piece -
Acrel ASJ20-LD1A Residual Current Relay/The Measurement of A-type Residual Current/The Setting of Rated Residual Action CurrentUS$ 112 - 112MOQ: 1 Piece
-
Acrel AM4-U1 Overvoltage Protection Medium Voltage Application Protection Relay Widely Used in SubstationsUS$ 518 - 518MOQ: 1 Acre
-
Acrel AM5-F Control Circuit Fault Alarm Protection RelayUS$ 777 - 777MOQ: 1 Acre
-
Acrel AM5-M Inverse Time Over Current Motor Protection RelayUS$ 777 - 777MOQ: 1 Acre
Brand Name
Acrel
Place of Origin
China
Model Number
ARTM-8

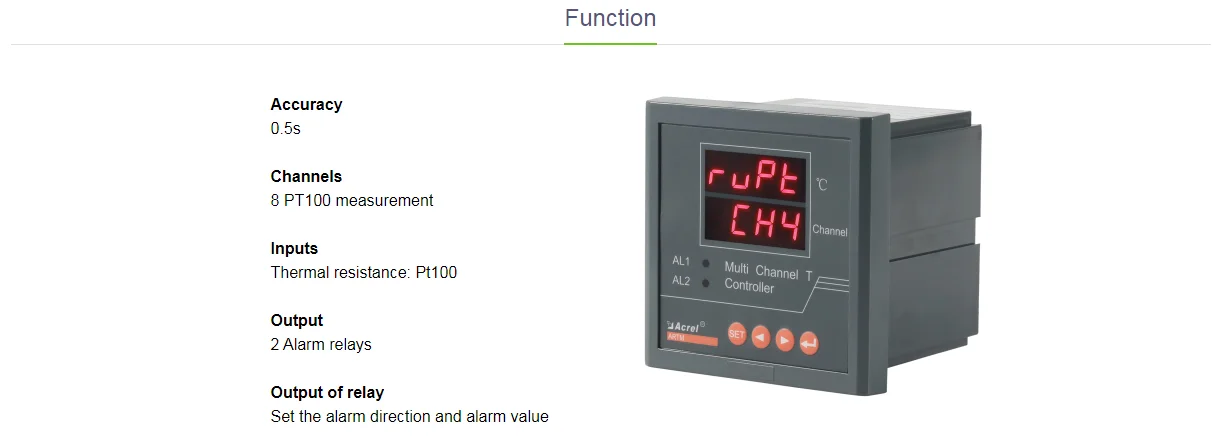

Technical Parameters
Channels | 8 | ||||||
Inputs | Termal resistance: PT100 | ||||||
Accuracy | 0.5S | ||||||
Auxiliary Power supply | Voltage | AC85-265V, DC100-350V | |||||
Consumption | ≤2W | ||||||
Alarm | Channels | 2 groups normally open | |||||
Capacity | AC250V/5A; DC30V/5A | ||||||
Communication | Protocol | Modbus-RTU | |||||
Interface | RS485 | ||||||
Baud rate(bps) | Can choose 1200, 2400,4800,9600,19200 | ||||||
Isolation | 2kV/1min Ac effective value | ||||||
Environment | Temperature | Working:-10℃~+55℃，Storage:-25℃~+70℃ | |||||
Humidity | ≤95%，No condensation) | ||||||
Altitude | ≤2000m | ||||||
