Home > Products > Temperature Monitoring > Acrel ARTM-Pn Panel Mounted 3P online wireless temperature measuring equipment for Electric Parameter Meausurement

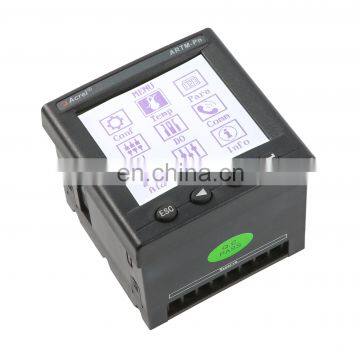

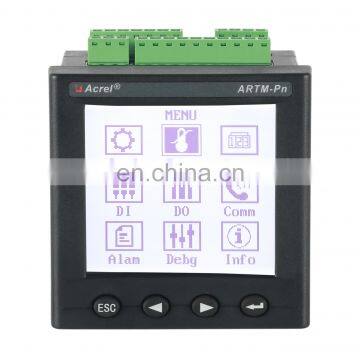

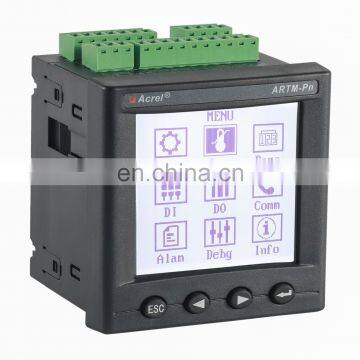

Acrel ARTM-Pn Panel Mounted 3P online wireless temperature measuring equipment for Electric Parameter Meausurement
USD $155 - $155
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- jiangsu
- T/T L/C D/P D/A Credit Card
You May Like
-
Acrel multi-input temperature controller for distribution box ARTM-8
-
Acrel ASJ20-LD1C protection Panel earth leakage relay
-
Acrel ASJ20-LD1A Residual Current Relay/The measurement of A-type residual current/The setting of rated residual action current
-
ASJ10-LD1C Measurement of type A residual currrent Earth Leakage Relay for on-the-spot and long-distance testing and resetting
-
Acrel ACR10R-D10TE solar power meter/Solar Inverter Energy Meter
-
Acrel ACR10R-D16TE single phase power energy meter for solar storage systems
Product Details
| Brand Name | ACREL | Place of Origin | China | |
| Model Number | ARTM-Pn |
Product Description
Product Description

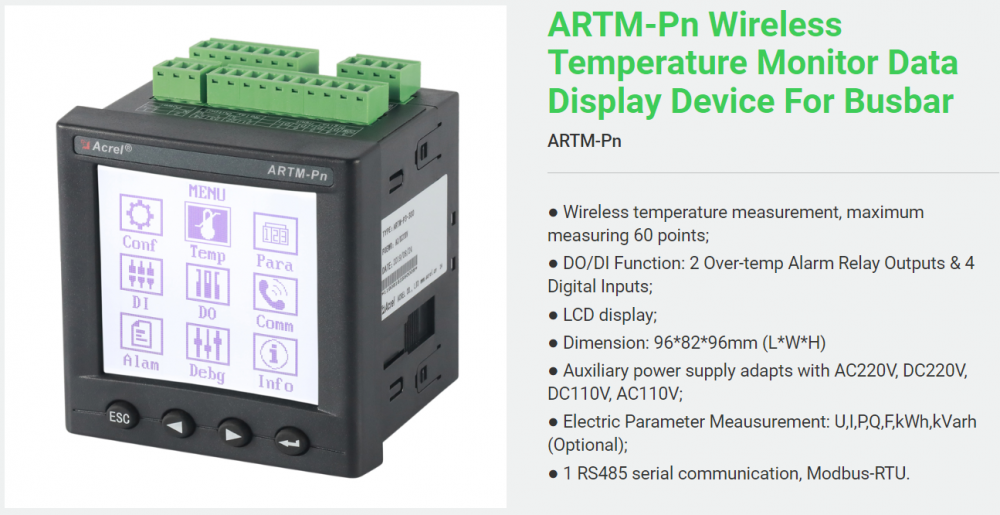

ARTM-Pn Wireless Temp Measuring Equipment
General
ARTM-Pn wireless temperature measuring equipment has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.

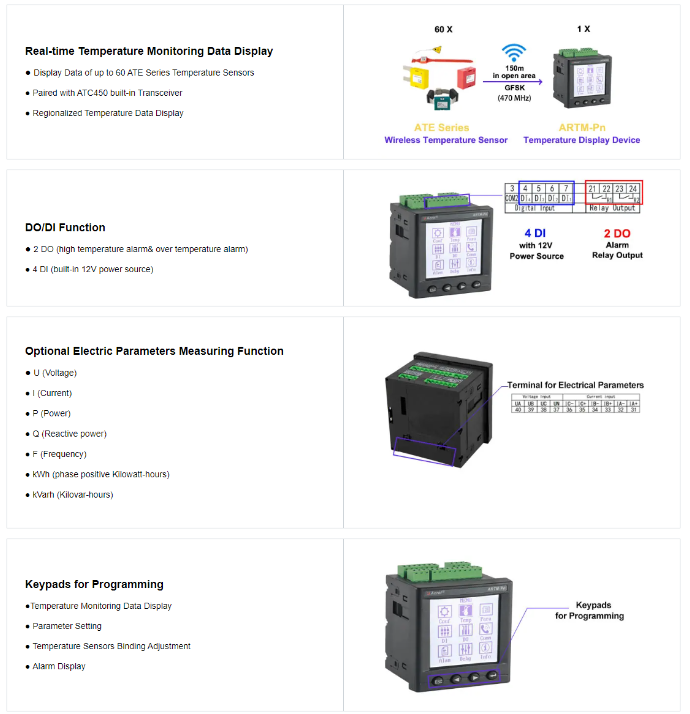

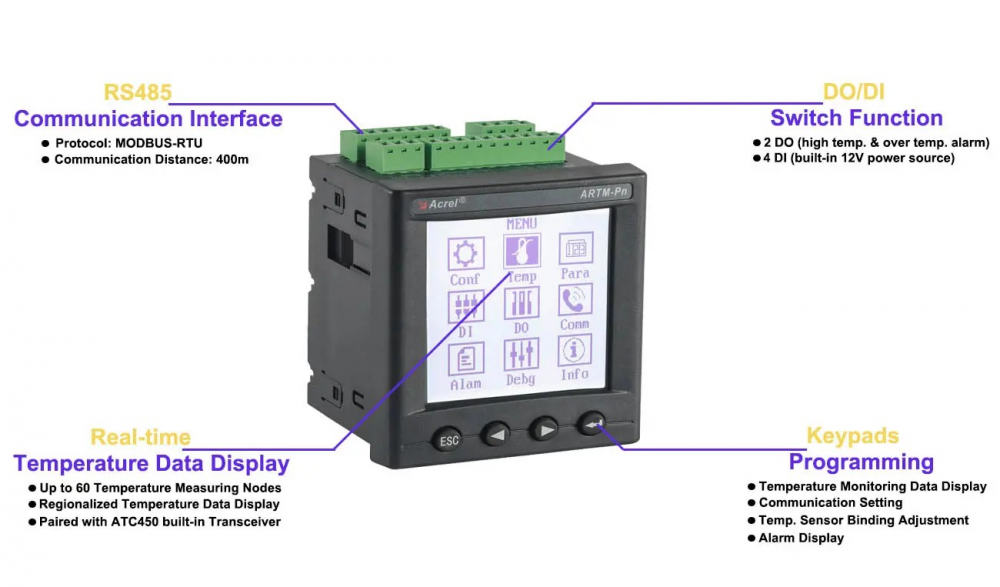

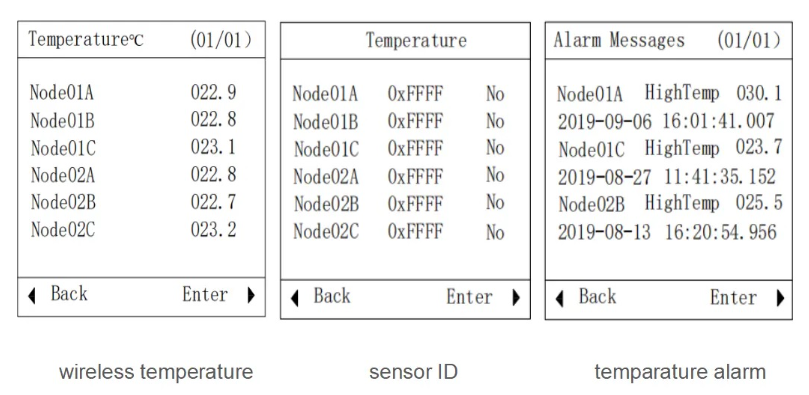

Features

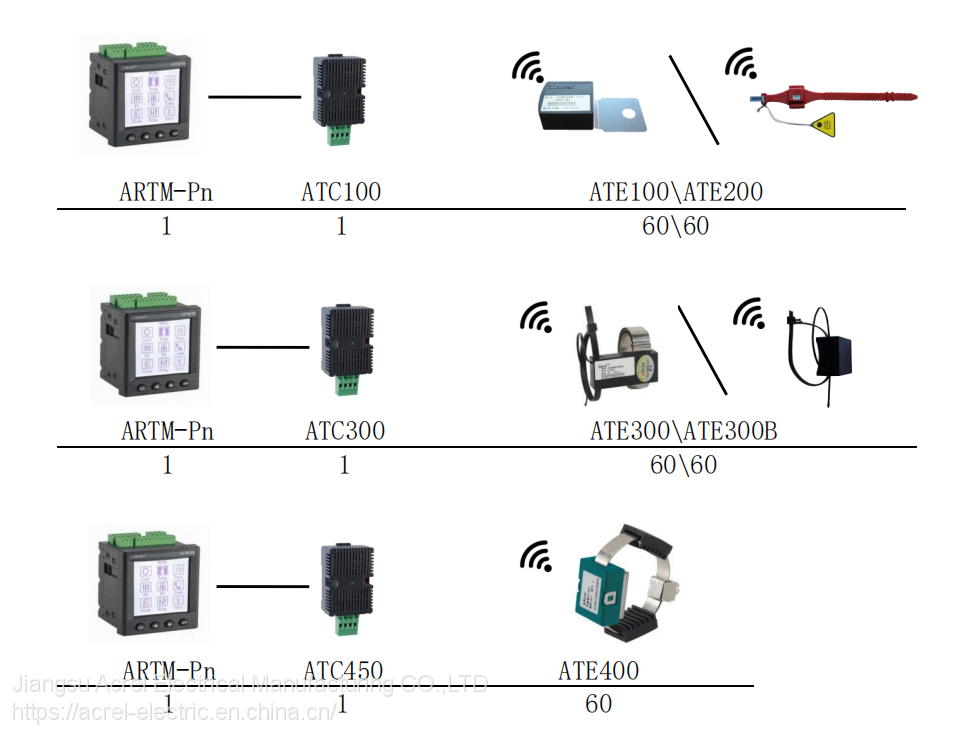

Product Selection
1. in high and low voltage cabinets--with display
ARTM-Pn Function:
Panel: 96*96*17mm，depth65mm，opencut 92*92mm；
Power supply:AC85-265V or DC100-300V；
one channel RS485 Modbus；
receive max.60pcs ATE100/200/300/400；
3 phases electric measurement.

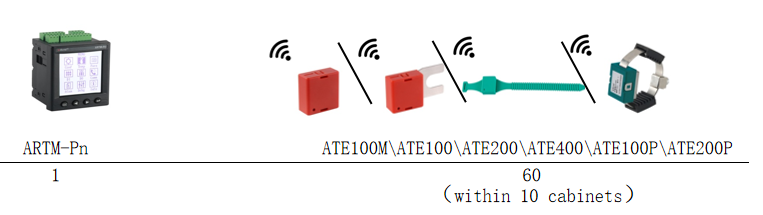

Sensors match:
1. quantity:up to 60；
2. distance: can receive within 10 cabinets.
Panel: 96*96*17mm，depth65mm，opencut 92*92mm；
Power supply:AC85-265V or DC100-300V；
one channel RS485 Modbus；
receive max.60pcs ATE100/200/300/400；
3 phases electric measurement.
Sensors match:
1. quantity:up to 60；
2. distance: can receive within 10 cabinets.

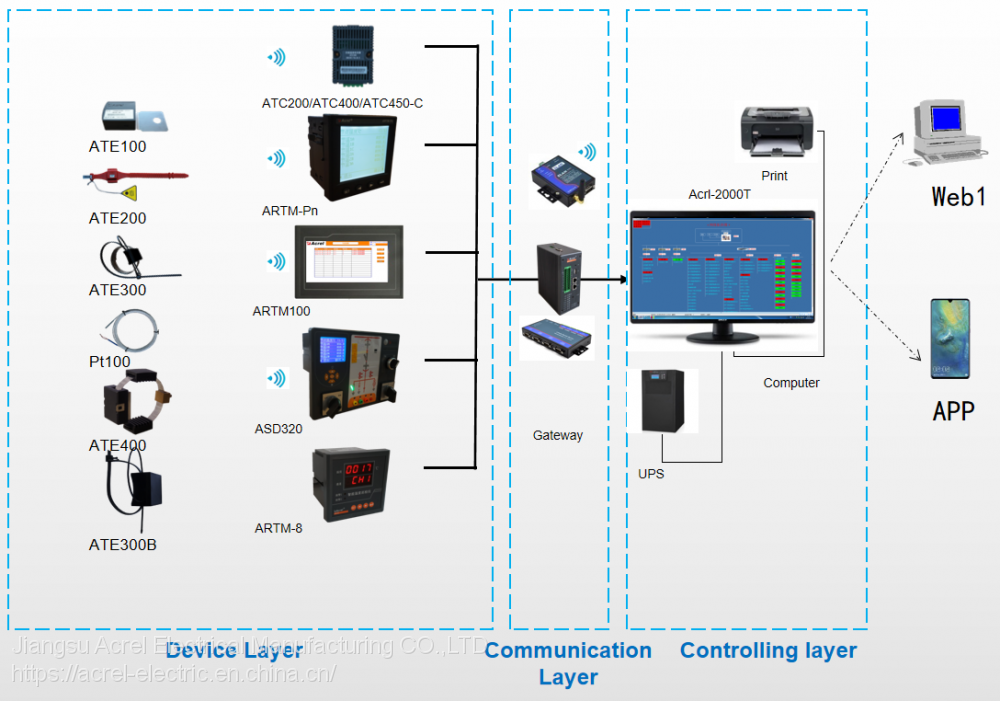

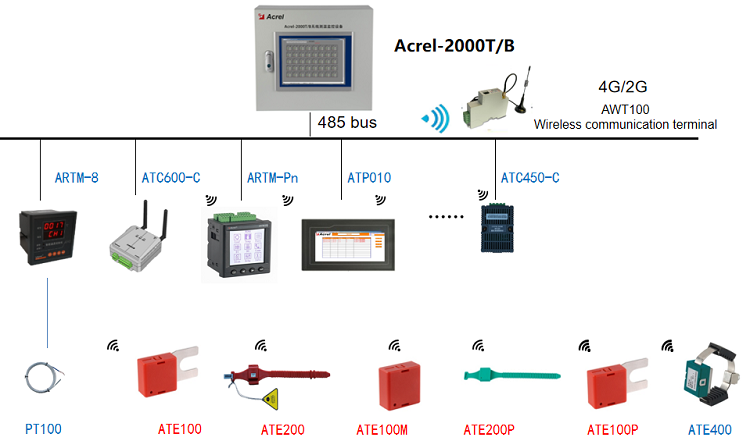

2. On-site wall-mounted centralized display solution
As above shown, the first configuration is only suitable for one cabinet.
The other two types of configurations can cross 5 cabinets.

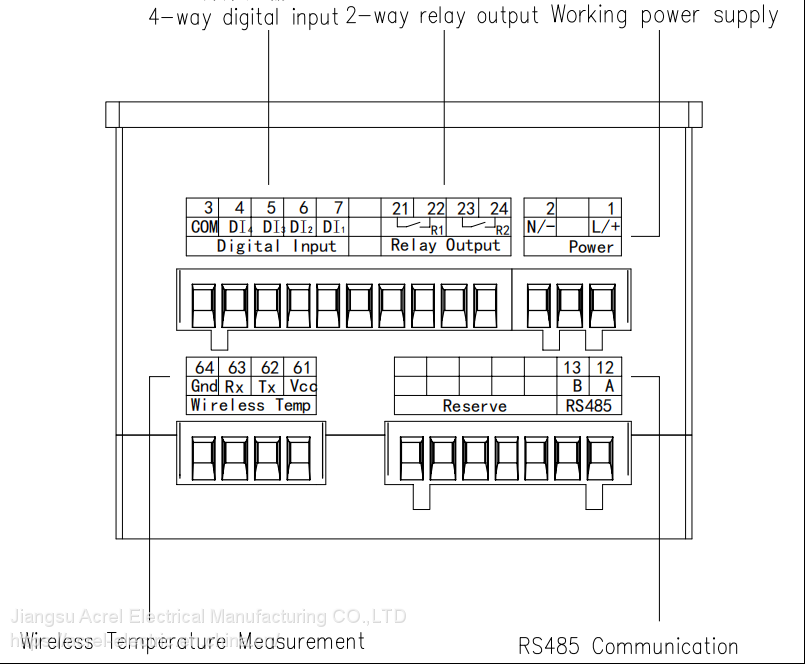

Wiring
Typical Connection
