Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > Industrial Welder Mold Handheld Laser Welding Machine Water Cooling System Laser Welder for Mould Repair

Industrial Welder Mold Handheld Laser Welding Machine Water Cooling System Laser Welder for Mould Repair

Industrial Welder Mold Handheld Laser Welding Machine Water Cooling System Laser Welder for Mould Repair photo-1

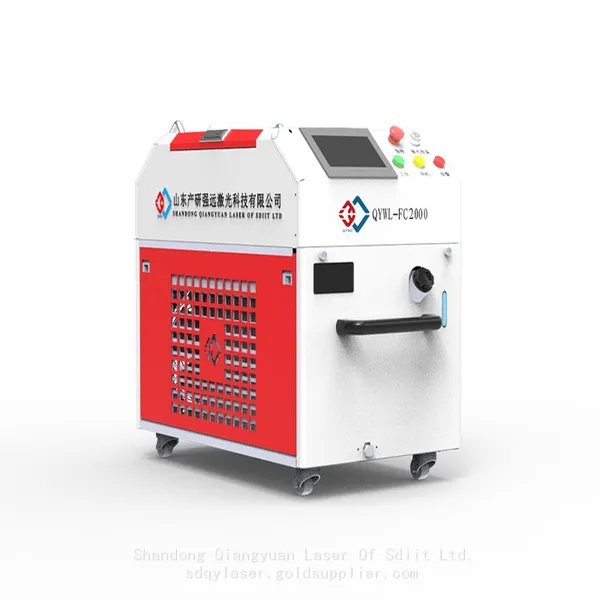

Industrial Welder Mold Handheld Laser Welding Machine Water Cooling System Laser Welder for Mould Repair photo-2

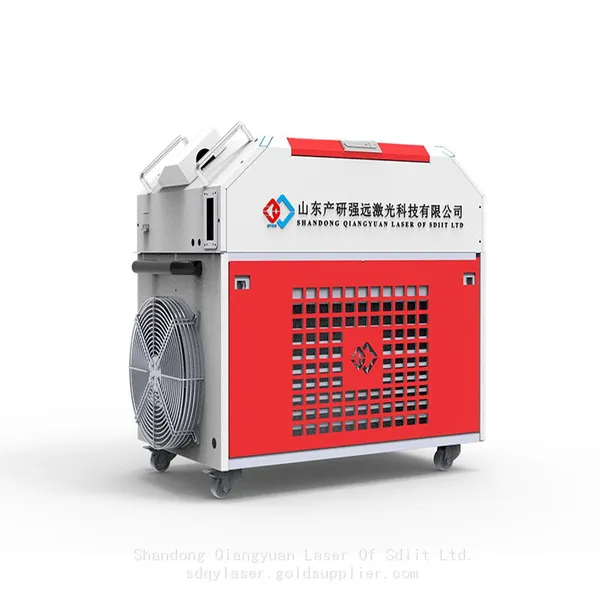

Industrial Welder Mold Handheld Laser Welding Machine Water Cooling System Laser Welder for Mould Repair photo-3
US$ 4200 - 8300 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
QIANGYUANLASER
Place of Origin:
China
Certification:
CE, ISO, SGS
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Brand Name QIANGYUANLASER
Place of Origin China
Certification CE, ISO, SGS
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Power(W) 1000w/1500w/2000w/3000w
Dimensions 1240*510*1040mm
Max. Output Power 3000w
Industrial Welder Mold Handheld Laser Welding Machine Water Cooling System Laser Welder for Mould Repair

Product Description

Handheld laser welding is easy to learn, simple and fast to set up and provides consistent high-quality results across a wide range of materials and thicknesses. Anyone can learn to weld with professional results in 5-30mins. Compare this to years of training with a traditional Mig/Tig welder. With almost no flash, no need for heavy duty protective clothing to like traditional welding.

Product Parameters

Model QYWL-FC1000 QYWL-FC1500 QYWL-FC2000 QYWL-FC3000
Hand-held head Single pendulum welding head (optional wire filling device)
Weight of hand-held head (kg) 0.8
Laser power (w) 1000 1500 2000 3000
Rated power (kw) 5 6.6 9.6 12.6
Power adjustment range (%) 10-100
Central wavelength (nm) 1060-1070
Cooling method Water Cooling
Fiber length (m) 10  (Optional 5/15) 20
Type of laser source  Continuous wave
Dimension of machine (mm) 917*490*750 1110*490*750 1240*510*1040
Weight of machine (kg) 115 145 220
Power supply 220V 380V



Product Details

1. High-quality core components
MAX/Raycus/JPT/IPG laser, famous brand, customized options Omron / Chint famous electrical brand, safe, stable and reliable.
Industrial Welder Mold Handheld Laser Welding Machine Water Cooling System Laser Welder for Mould Repair
Industrial Welder Mold Handheld Laser Welding Machine Water Cooling System Laser Welder for Mould Repair
2. Portable welding head
Light weight with portable and flexible torch structure design, suitable for welding operation habits, stable and reliable.
Handheld and automatic machine dual-purpose, suitable for welding operations in high-strength and complex environments.



3. Universal wheel movable structure
Equipped with universal wheels, flexible movement, with good inlet and outlet air design of the shell ensures the overall heat dissipation and provides reliable welding guarantee for complex working conditions.
Industrial Welder Mold Handheld Laser Welding Machine Water Cooling System Laser Welder for Mould Repair



Industrial Welder Mold Handheld Laser Welding Machine Water Cooling System Laser Welder for Mould Repair
4. Open functional design
Fast power plug suitable for more working conditions;
Visual control panel, one-key operation with multi-language interface.




Product Application

Industrial Welder Mold Handheld Laser Welding Machine Water Cooling System Laser Welder for Mould Repair





Company Profile



Industrial Welder Mold Handheld Laser Welding Machine Water Cooling System Laser Welder for Mould Repair
SDQY Laser is a professional manufacturer of laser cleaning machines and laser welding machines, committed to providing customers with high-quality products and excellent services. As a company with its own R&D team, we continue to develop and innovate to provide customers with better solutions.

We are well aware of our customers' needs and requirements for our products, so we also provide free testing services so that customers can better understand our products and services. Customers are welcome to send us samples for testing, and we will provide test results and solutions as soon as possible.




Industrial Welder Mold Handheld Laser Welding Machine Water Cooling System Laser Welder for Mould Repair

FAQ

1.Are you a factory or a trading company?
We are the factory, located in Liaocheng, China.
Expecting your visit at anytime.

2.Is the price on your website is the closing price?
No, it is just for your reference, an exact quotation based on your requirement.
Please contact us for details.

3.May I inspect before delivery?
Sure, welcome to inspect before delivery.And if you can't inspect by yourself, our factory has a professional quality inspection team to inspect the goods before shipment to ensure quality.

4.How long is the delivery time of samples and bulk orders?
Sample lead time: About 5 working days.
Order lead time: About 15 working days.
