Detailed product description

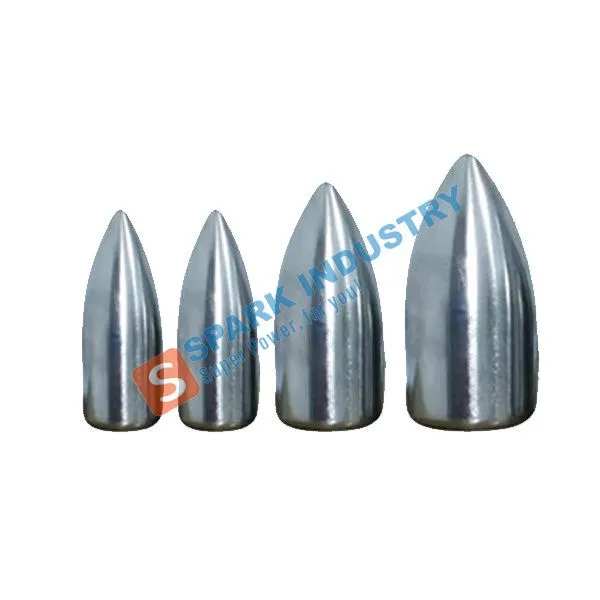

The molybdenum alloy top is made of molybdenum powder FMo-1 raw material with rare earth materials added. It is processed through mixing, forming, shape processing, high-temperature sintering and other processes, with a finished product density of ≥ 9.4g/cm3.
Product diameter specifications: Φ 20-300mm, and can be specially processed and made according to your drawing requirements. Mainly used for piercing seamless steel pipes such as stainless steel, brazing steel, bearing steel, and high-temperature alloy steel, and for hot rolling piercing of seamless pipes of different materials in high-temperature and harsh environments.
Density ≥ 9.3g/cm ³
Used for threading seamless steel pipes such as stainless steel, alloy steel, and high-temperature alloys.
Special specifications are available for customization.
Chemical composition: Made from high-purity molybdenum as the base material, in accordance with YS T245-2011
Model |
D |
L |
||
Basic dimensions |
Allowable deviation |
Basic dimensions |
Allowable deviation |
|
DM20 |
20 |
+3.0 |
60-80 |
+6.0 |
80-110 | ||||
DM60 |
60 |
+4.0 |
160-200 |
+8.0 |
DM90 |
90 |
+6.0 |
180-260 |
|
DM110 |
110 |
+8.0 |
200-300 |
+10.0 |
DM160-250 |
160-250 |
+10.0 |
280-450 |
+15.0 |
DM160-450 |
160-450 |
+10.0 |
300-800 |
+15.0 |
