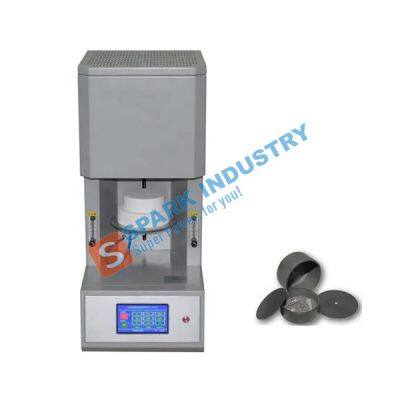

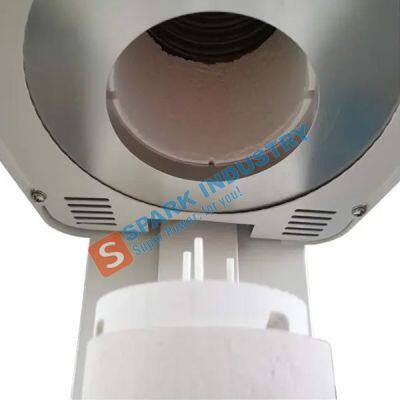

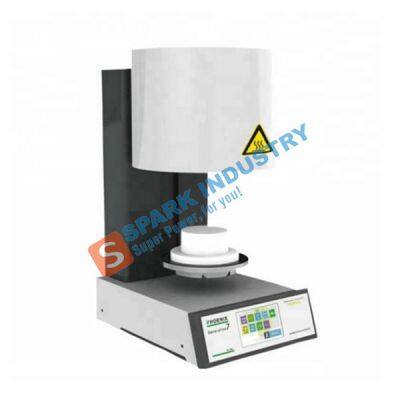

Features of the dental sintering furnace with high quality / dental lab furnace
1. touch screen controller for easy operation
2.Special MoSi2 heaters will not contaminate the heated dentures
3.High purity alumina fiber for good insulating property
4.lift tray for easy operation and avoid heart by the high temperature
Specification of the dental zirconia sintering furnace:
Model | CY-T1700 |
Chamber model | lift tray |
Display | Touch screen LCD |
Limiting Temperature | 1700℃ |
Usable Range | ≤1600℃ |
Heating Rate | Suggestion0~20℃/min |
Temperature Zone | Single |
Accuracy | ±1℃ |
Inside Chamber Size | Φ120×120mm |
Heating Element | MoSi2 |
Thermocouple | B Type |
Max. Power | 1.8KW |
Working Voltage | AC 208V-240V single phase, 50/60 Hz |
Temperature Control | PID automatic control via SCR power control |
Heating curves | 50steps programmable |
Communication interface | Rs485 |
Outside Size | 400×530×850(mm) |
Weight | 85kg |
Warranty | One year limited warranty (Consumable parts |
