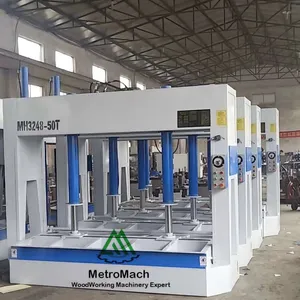

Woodworking Hydraulic Melamine Laminating Cold Press Machine for Fire Proofing Floor
USD $3000 - $6000
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Other
- 20 days
You May Like
-
Woodworking Hydraulic Hot Press Machine for Fire-proofing Floor, Door, Furniture
-
Woodworking Hydraulic Melamine Laminating Hot Press Machine for Fire-proofing Floor, Door, Furniture
-
Woodworking Hydraulic Decorative Paper Laminating Cold Press Machine for Fire Proofing Floor
-
Woodworking Hydraulic Decorative Paper Laminating Hot Press Machine for Fire-proofing Floor, Door, Furniture
-
Woodworking High Capacity Complete LVL Board Production Machine Line
-
Woodworking High Capacity Complete LVL Board Production Making Machine Line
Product Details
| Brand Name | METRO MACH | Place of Origin | China | |
| Model Number | BY814X8/5-I | Type | Cold Press | |
| Certification | CE, ISO, FDA | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 year | Weight | 2600KG | |
| Dimension(L*W*H) | 3600*1380*3750mm | Voltage | 220/380/415V | |
| Application | Furniture, Floor, Door | Condition | New | |
| Pressure | Customized | Power(W) | 30KW |
Product Description
1. Product Features:
Cold press machine is the auxiliary in plywood production line, which is used to shorten the cycle time of hot press and improve the quality of plywood before gluing board. Cold press machine belongs to the pressing machine. Cold press machine is mainly used to press the gluing veneer, so that make the initial shape, and then into the hot press machine to press. It is important to improve the quality of plywood, and it is an significant part. Cold press machine in general consists with the rack, fixed beam, moving beam, the plate device, cylinder and hydraulic system, electric control device components.
Advantages of our pre-press equipment:
1.Easy to operate, reasonable design, stable performance
2.fast and efficient pressing.
3.Emergency safety braking.
2. Technical Specification:
| Model | BY814X8/50 |
| Nominal Gross pressure | 500KN |
| Direction of feeding | Horizontal |
| Opening | 1000mm |
| Main Cylinders | 2xφ110mm |
| Size of workingbench | 2500x1250mm |
| Cylinder Stroke | 1000mm |
| Power | 3kw |
| Control method | Automatic pumping station |
| Machine weight | 2800kgs |
| Chain roller conveyor | Yes,optional |

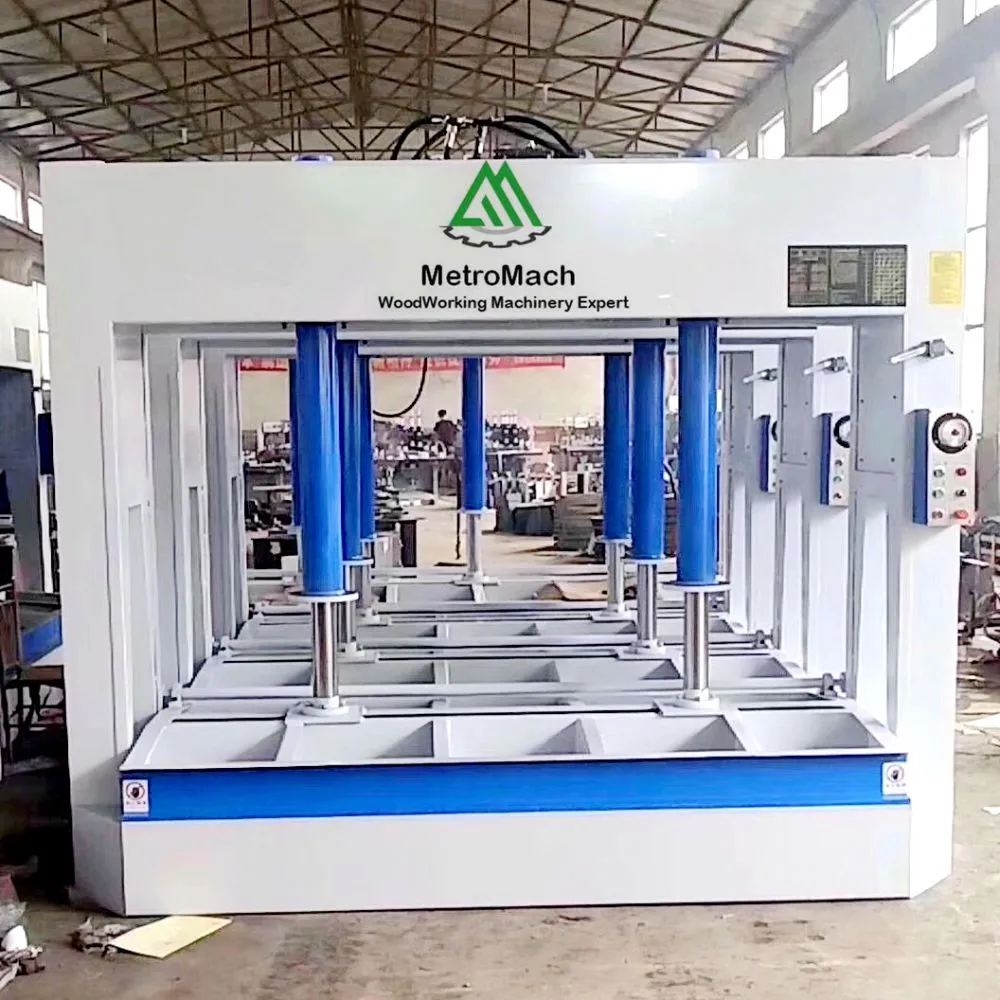

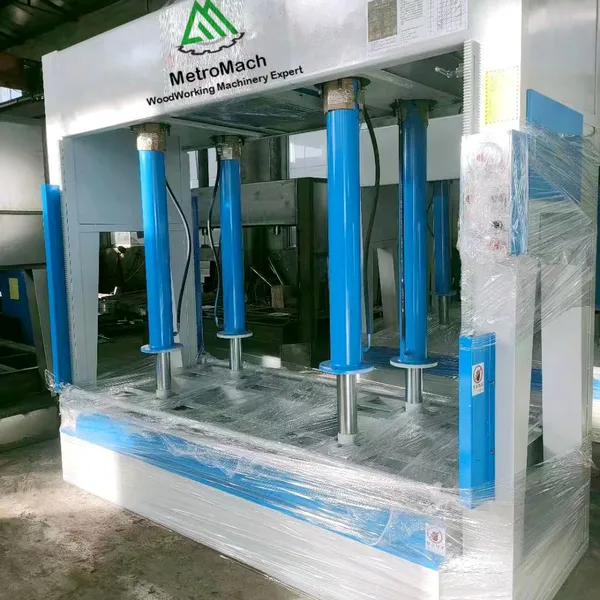

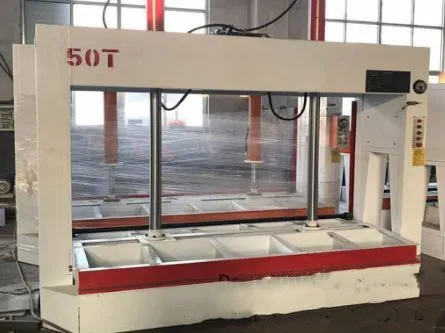

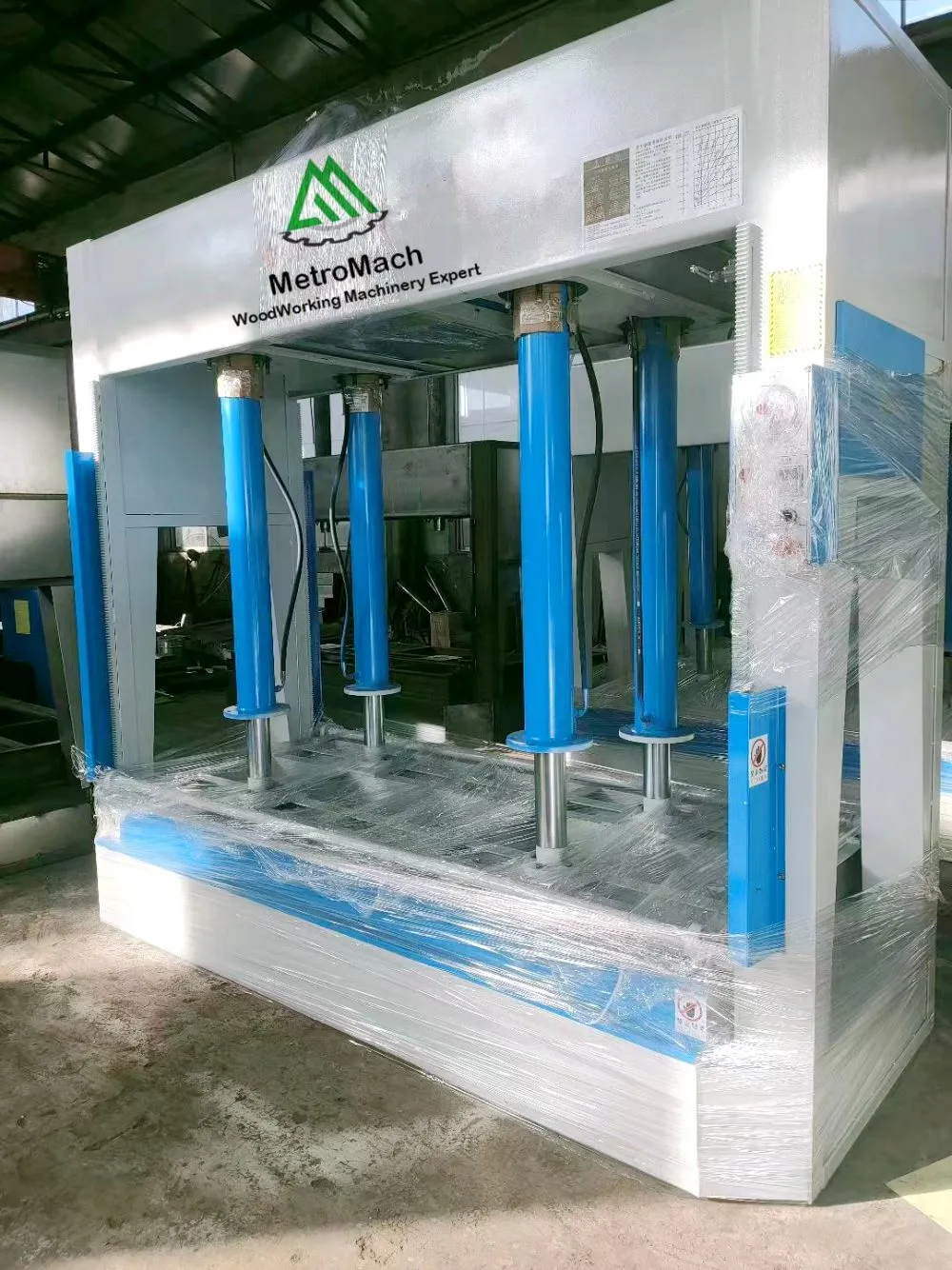

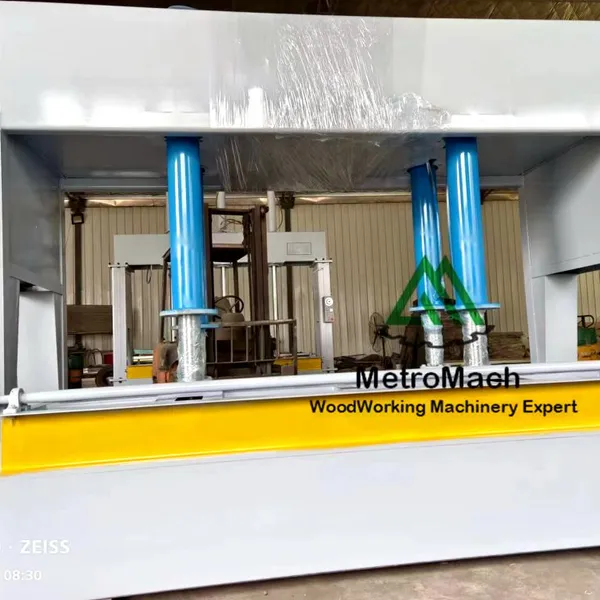

3. More Pictures:
