Woodworking Machinery Single Daylight Cold Press Machine Door Press Machine
- 0 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Other
- 30 days
- Automatic powder coating machine-ZHT-Made in China-Shenyang Liaoning
- LIVTER Fully Automatic Hydraulic Chilling Press Hydraulic Wooden Wood Door Press Machine
- 60T Hydraulic Multi-Layer Wooden Door Cold Pressing Machine For Multilayer Plywood Honeycomb Panel
- PL8-D High Quality Hydraulic Hot Press Plywood machine
- Pvc film vacuum membrane press machine for wood cabinet door PVC laminating machine for interior door making
- one table PVC foil vacuum press machine Pvc film vacuum membrane press for wood cabinet door
Product Details
Brand Name: | METRO MACH/ LEAD TOP | Place of Origin: | China | Model Number: | BY814X8/4-IIZ |
Type: | Cold Press | Certification: | CE,ISO, FDA, SGS, CCC | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 Year | Weight: | 2800kg | Dimension(L*W*H): | 3000*1380*3800mm |
Voltage: | 380/415V | Application: | Door, furniture, plywood and so on | Condition: | New |
Pressure: | 50T | Power(W): | 3kw |
Product Description

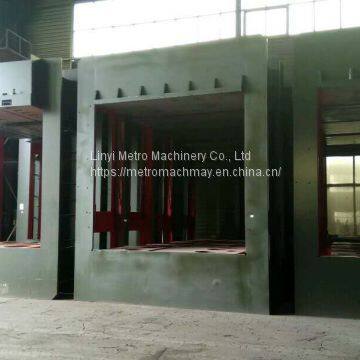

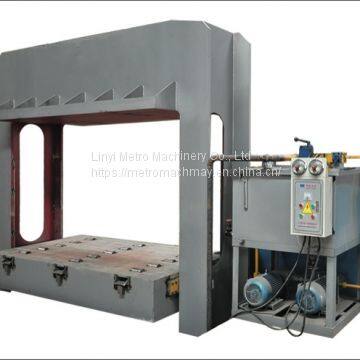

1. Cold Press machine, also know as Pre-press machine, is an essential equipment in the production of door panel etc.
2. It helps to shorten the cycle time of hot press, and initial shaping of glued veneers.
3. Two working ways for option, one is cylinders on top, another is cylinders downsides.
4. Strict quality control, Good quality NO.1 standard steel plate, Top hydraulic unit system, Wuxi solid cylinders, no oil leakage.
Technical Parameters
Various pressure:50T/80T/100T even higher is available.
Pressing size: 3x6ft, 4x8ft, 5x5ft etc.
Model | BY814X8/4-IIZ |
Nominal Gross pressure | 500KN |
Direction of feeding | Horizontal |
Opening | 1000mm |
Main Cylinders | 2xφ110mm |
Size of workingbench | 2500x1250mm |
Cylinder Stroke | 1000mm |
Power | 3kw |
Control method | Automatic pumping station |
Machine weight | 2800kgs |
Chain roller conveyor | Yes,optional |
