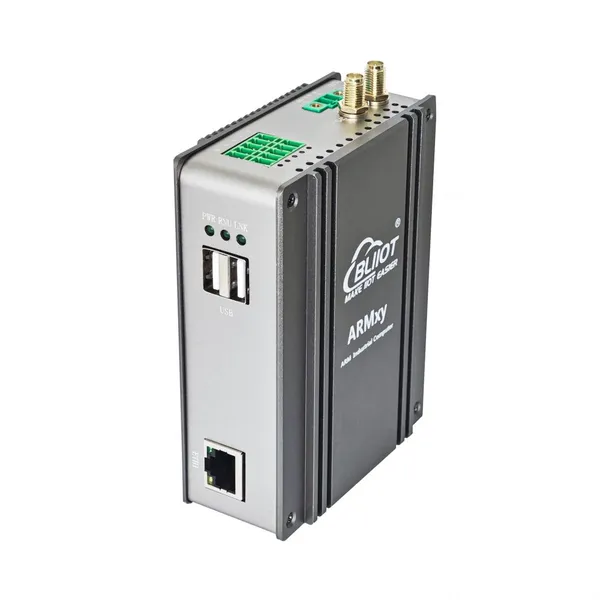

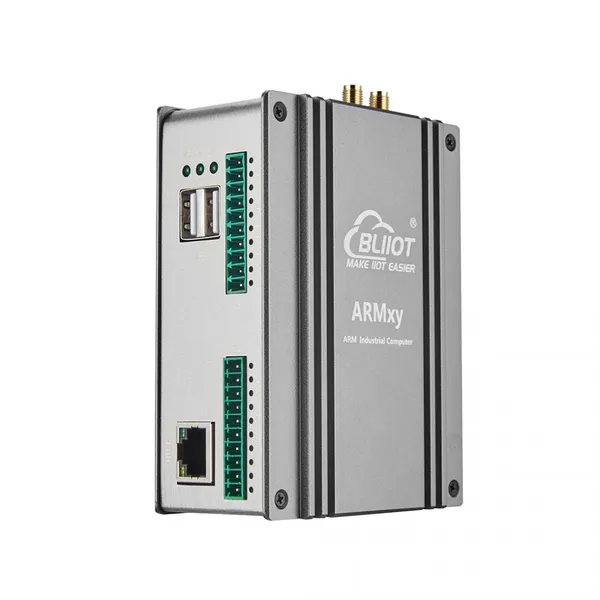

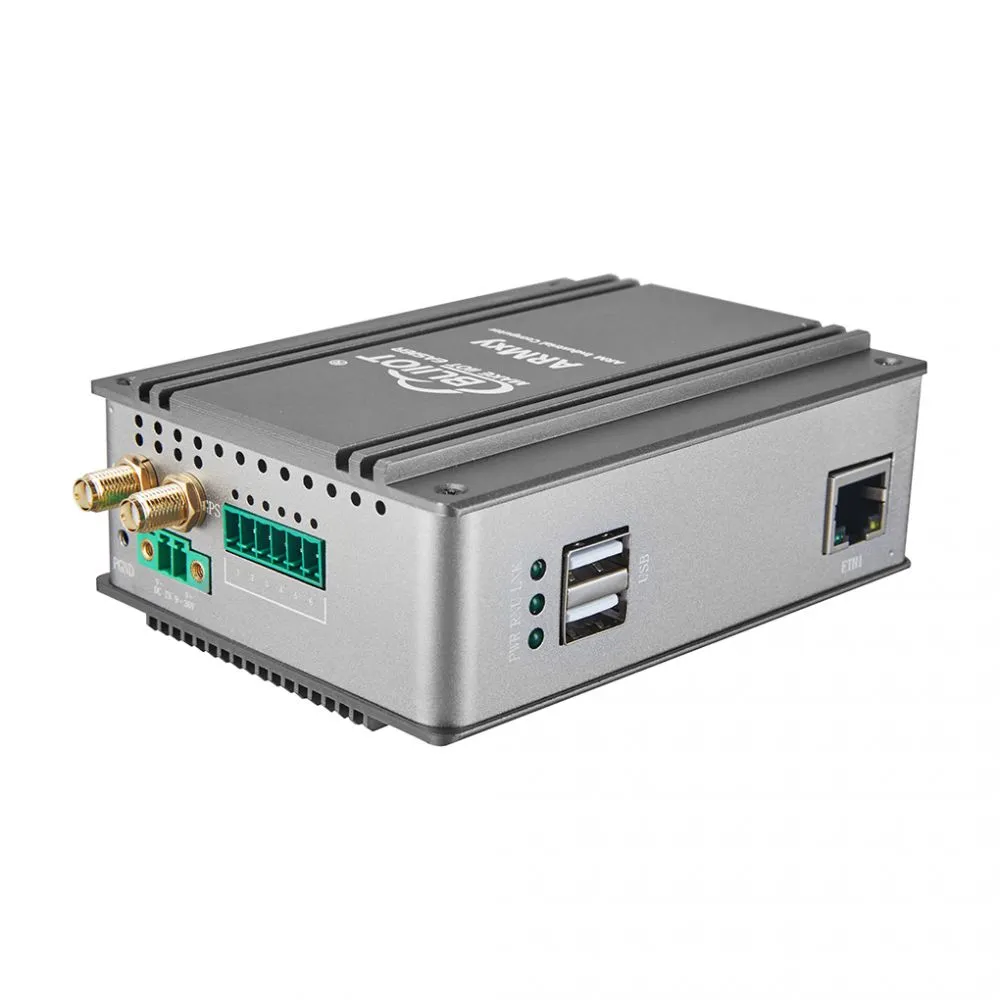

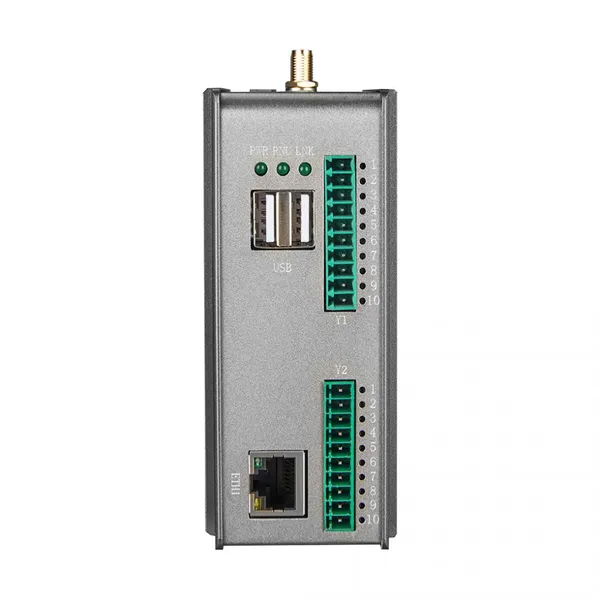

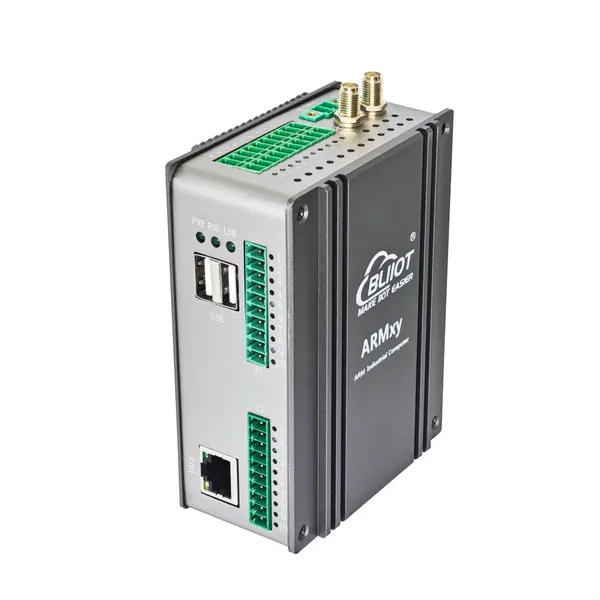

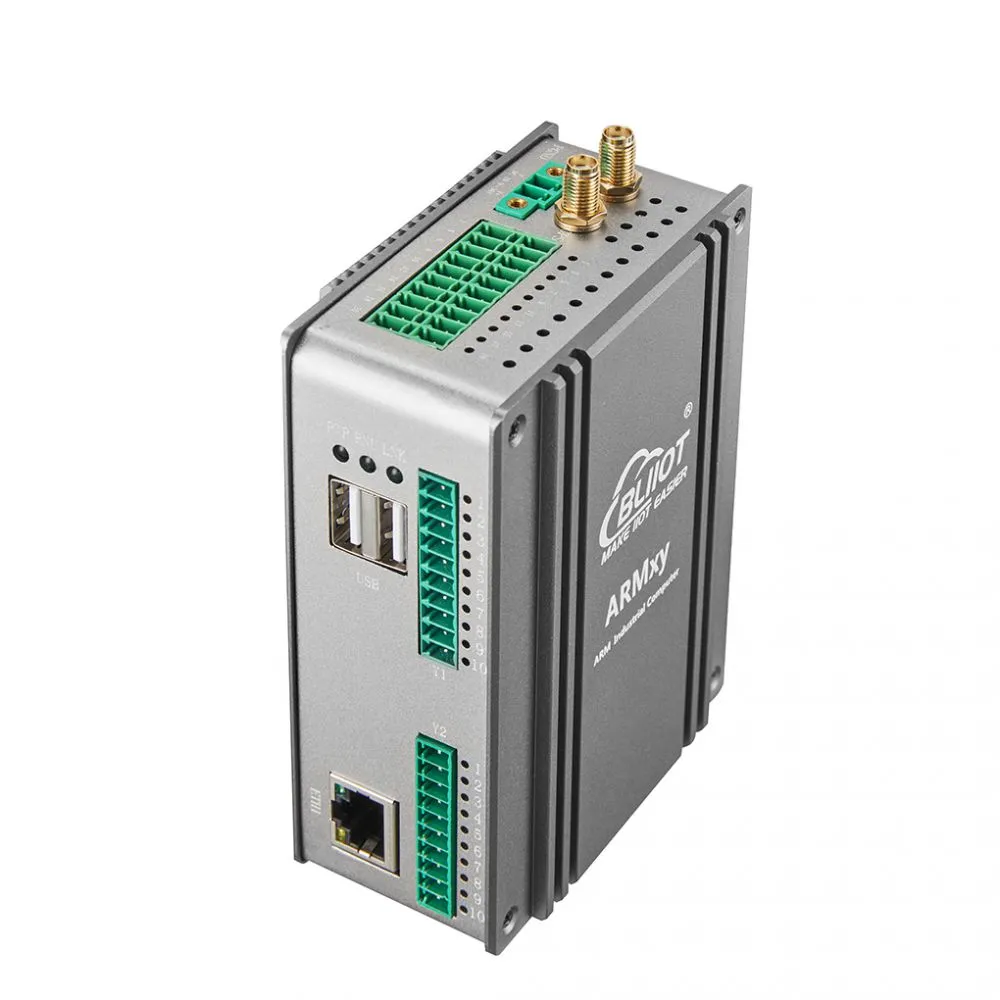

T113-i Cortex-A7 C906 RISC-V+HiFi4 DSP ARMxy Embedded Computer With 4G/WIFI/GPS

T113-i Cortex-A7 C906 RISC-V+HiFi4 DSP ARMxy Embedded Computer With 4G/WIFI/GPS thumbnail-1
T113-i Cortex-A7 C906 RISC-V+HiFi4 DSP ARMxy Embedded Computer With 4G/WIFI/GPS thumbnail-2
T113-i Cortex-A7 C906 RISC-V+HiFi4 DSP ARMxy Embedded Computer With 4G/WIFI/GPS thumbnail-3
T113-i Cortex-A7 C906 RISC-V+HiFi4 DSP ARMxy Embedded Computer With 4G/WIFI/GPS thumbnail-4
T113-i Cortex-A7 C906 RISC-V+HiFi4 DSP ARMxy Embedded Computer With 4G/WIFI/GPS thumbnail-5
T113-i Cortex-A7 C906 RISC-V+HiFi4 DSP ARMxy Embedded Computer With 4G/WIFI/GPS photo-1
T113-i Cortex-A7 C906 RISC-V+HiFi4 DSP ARMxy Embedded Computer With 4G/WIFI/GPS photo-2
T113-i Cortex-A7 C906 RISC-V+HiFi4 DSP ARMxy Embedded Computer With 4G/WIFI/GPS photo-3
T113-i Cortex-A7 C906 RISC-V+HiFi4 DSP ARMxy Embedded Computer With 4G/WIFI/GPS photo-4
T113-i Cortex-A7 C906 RISC-V+HiFi4 DSP ARMxy Embedded Computer With 4G/WIFI/GPS photo-5
US$ 78 - 183 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIoT
Place of Origin:
China
Model Number:
BL330
Contact Supplier Request Quote Chat Now
Shenzhen Beilai Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIoT
Place of Origin China
Model Number BL330

Product Description

The ARMxy BL330 series is a versatile industrial ARM controller designed for flexible I/O configuration. It is based on the T113-i dual-core ARM Cortex-A7 + C906 RISC-V + HiFi4 DSP heterogeneous multi-core processor. This industrial-grade computer features an ARM Cortex-A7 processor with clock speed of up to  1.2GHz. It is equipped with either 256Mbyte NAND Flash or 4/8GByte eMMC storage options and offers various combinations of 128M/256M/512M/1GByte DDR3 RAM and ROM.The BL330 series ARM embedded computer offers a rich array of interfaces including 1 x 1000Mhz Ethernet port,2 x optional 100Mhz Ethernet ports,2 x USB 2.0 ports,1 x optional HDMI 2.0a port,1 x optional X series IO board,2 x optional Y series IO boards.These interfaces support various functions such as communication, PWM output, pulse counting, and data acquisition and control. The BL330 also supports hardware decoding of 1080P@60fps videos.
Additionally, it features a built-in Mini PCIe interface to support communication modules such as Bluetooth, WiFi, and 4G modules.

The BL330 series ARM embedded computer supports a range of operating systems anddevelopment tools, including Linux-5.4.61 and Linux-RT-5.4.61 kernels,Ubuntu 20.04 operating system,Docker containers, Node-Red,Qt-5.12.5 and Qt-5.11.3 for graphical interface development.In addition,BL330 is compatible with BLIoTLink industrial protocol conversion software for data collection and transformation, and can seamless integration withvarious mainstream IoT cloud platforms and industrial SCADA software. Users can leverage the BLRAT for remote access and maintenance of the BL330 embedded computer. Additionally, with support for Node-Red, users can rapidly develop IoT applications on the BL330.
The BL330 series ARM embedded computer has undergone rigorous electrical performance design and high-low temperature testing to ensure stability and reliability. It is designed for DIN35 rail mounting, making it suitable for various industrial application environments.
This embedded computer is widely used in industrial IoT, photovoltaic power generation and energy storage systems, automation control, and transportation and rail applications.
 Product Selection Guide

The ARMxy series ARM embedded controllers adopt a flexible design concept, allowing users to customize ROM and RAM combinations by choosing different System-on-Module(SOM) boards as needed. Additionally, various X and Y boards can be selected to achieve diverse IO configurations, catering to the requirements of different application scenarios.
Product naming convention
Host Model Number - SOM Model Number - X Board Model Number - Y1 Board ModelNumber - Y2 Board Model Number
For example BL330-SOM330-X10, means 1 Ethernet port, 256MB NAND Flash, 256MB DDR3 RAM, and 2 RS485 ports.
If you need to add WiFi, then you would append "W" to the host model number. For example: BL330W-SOM330-X10
If you need to add a 4G module, you would append "L" to the host model number. For example: BL330L-SOM330-X10

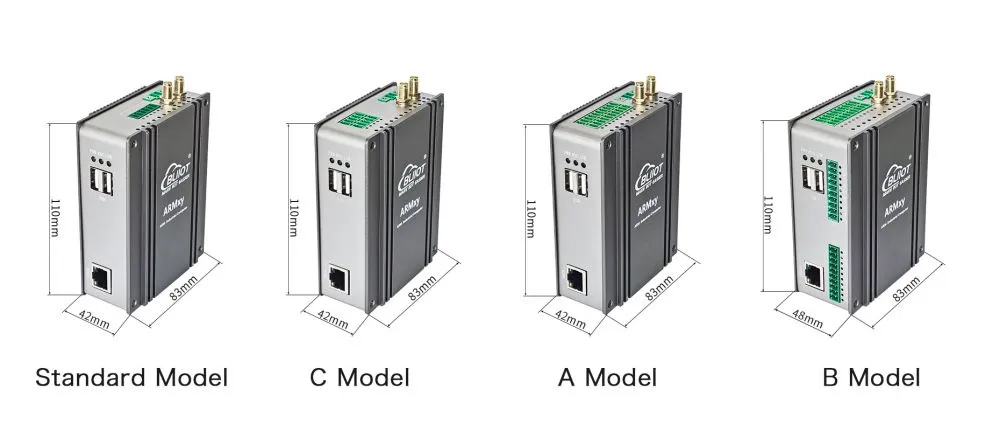

ARMxy BL330 Model List


Model ETH USB HDMI X board IO
Slot		 Y board IO
Slot		 Dimension
BL330 1x1000Mhz 2 X 1x6PIN X 42x83x110mm
BL330A 1x1000Mhz 2 X 1x20PIN X 42x83x110mm
BL330B 1x1000Mhz 2 X 1x20PIN 2 48x83x110mm
BL330C 1x1000Mhz 2 X 1x10PIN X 42x83x110mm
BL331 1x1000Mhz, 1x100Mhz 2 X 1x6PIN X 42x83x110mm
BL331A 1x1000Mhz, 1x100Mhz 2 X 1x20PIN X 42x83x110mm
BL331B 1x1000Mhz, 1x100Mhz 2 X 1x20PIN 2 48x83x110mm
BL332 1x1000Mhz, 2x100Mhz 2 1 1x6PIN X 42x83x110mm
BL332A 1x1000Mhz, 2x100Mhz 2 1 1x20PIN X 42x83x110mm
BL332B 1x1000Mhz, 2x100Mhz 2 1 1x20PIN 2 48x83x110mm


ARMxy BL330 SOM Model List


Model MCU Clock Speed Kernel Nand Flash eMMC DDR3 Temperature
SOM330 T113-i 1.2GHz 2 x A7 256Mbyte / 256MByte  -40~85°C
SOM331 T113-i 1.2GHz 2 x A7 256Mbyte / 128MByte  -40~85°C
SOM332 T113-i 1.2GHz 2 x A7 / 4GByte 256MByte  -40~85°C
SOM333 T113-i 1.2GHz 2 x A7 / 4GByte 512MByte  -40~85°C
SOM334 T113-i 1.2GHz 2 x A7 / 8GByte 512MByte  -40~85°C
SOM335 T113-i 1.2GHz 2 x A7 / 8GByte 1GByte  -40~85°C
SOM336 T113-i 1.2GHz 2 x A7 / 4GByte 256Mbyte  -20~70°C


X Series IO Board Model List

Model RS232/RS485 CAN DI DO GPIO PIN
X10 2 x x x x 6PIN
X11 1 1 x x x 6PIN
X12 x x 2 2 x 6PIN
X13 x x 4 x x 6PIN
X14 x x x 4 x 6PIN
X15 x x x x 4 6PIN
X20 4 x x x x 10PIN
X21 2 2 4 4 x 20PIN
X22 4 x 4 4 x 20PIN
X23 2 x 8 8 x 20PIN
X24 2 x 16 x x 20PIN
X25 2 x x 16 x 20PIN
X26 x x x x 16 20PIN
X27 8 x x x x 20PIN

Y Series IO Board Model List

Model Description
Model Description
Y01 4DI+4DO, NPN
Y41 4AO, 0/4~20mA
Y02 4DI+4DO, PNP
Y43 4AO, 0~5/10V
Y03 4DI+4DO, Relay
Y46 4AO, ±5V/±10V
Y11 8DI, NPN
Y51 2RTD, 3-Wire PT100
Y12 8DI, PNP
Y52  2RTD, 3-Wire PT1000
Y21 8DO, PNP
Y53 2RTD, 4-Wire PT100
Y22 8DO, NPN
Y54  2RTD, 4-Wire PT1000
Y24 4DO, Relay
Y56 Resistance measurement
Y31 4AI, single-ended, 0/4~20mA
Y57 Voltage measurement
Y33 4AI, single-ended, 0~5/10V
Y58 4TC
Y34 4AI, differential, 0~5/10V
Y91 4 high-speed counting module
Y36 4AI, differential, ±5V/±10V
Y61 4 RS485 or RS232



Y62 1CAN+3RS485 or RS232


Product Parameters
Hardware Parameters
CPU T113-i, 22nm, 2x ARM Cortex-A7, clock speed up to 1.2GHz
2x ARM Cortex-A7, clock speed up to 1.2GHz
1x HiFi4 DSP, clock speed up to 600MHz
1x XuanTie C906 RISC-V(64bit), clock speed up to 1008MHz
Encoder:
H.265 MP@L5.0 up to 4K@30fps
H.264 BP/MP@L5.0 up to 4K@24fps
MPEG-4 SP/ASP L5.0 up to 1080p@60fps
MPEG-2/MPEG-1 MP/HL up to 1080p@60fps
JPEG/Xvid/Sorenson Spark up to 1080p@60fps
MJPEG up to 1080p@30fps
Decoder: JPEG/MJPEG up to 1080p@60fps
ROM 256Mbyte Nand Flash or 4/8GByte eMMC
RAM 128M/256M/512M/1GByte DDR3
ETH RJ-45, 1~3, 1x1000M, 2x100M, ESD Level 3, EFT Level 3
USB 2x USB2.0 HOST(USB1, USB2), ESD Level 3
HDMI 1x HDMI2.0a, compatible with HDCP2.2, HDCP1.4 standard, supports up to 1080@60fps
IO Slot X series IO board slot: 1, X series IO board, support RS485, CAN, RS232, RS422, DI, DO, GPIO, etc;
Y series IO board slot: 2, Y series IO board, support RS485, CAN, RS232, RS422, DI, DO, Relay output, AI, AO, PT100, PT1000, TC, etc.
LED 1x power indicator light
2x user-programmable indicator light
Mini PCIE 1, Supports Bluetooth, WiFi, 4G module, etc.
SIM Slot 1 slot, NANO
Antenna 2, For 4G/WIFI/GPS
Debug 1x Micro USB debug port
SD Slot 1
Reset 1 reset button
Watchdog Onboard independent hardware watchdog
Power Rated DC 24V, supports wide voltage range of 9-36VDC
Equipped with reverse polarity protection and overcurrent protection
3-pin terminal block with screw terminals
Grounding 1-pin GND terminal
Installation DIN35 rail mounting, wall mounting
Material Aluminum alloy casing + stainless steel
Dimension 110*83*42mm or 110*83*48mm
