Solar cleaning equipment machine car roof water brush power tool X3

FOB Price

USD $400 - $600 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow
Delivery Detail3 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin

China

Type

Other, Rotable

Product Description

Key attributes

Other attributes

Place of Origin

Guangdong, China

Warranty Time

1 year

Model Number

Keyword

Photovoltaic cleaning tool

Usage

Cleaning brush Tools

Place of Origin

China

Customized

Yes

Certification

China

Four reasons for choosing

Single-head photovoltaic cleaner X3

specification

Product parameter

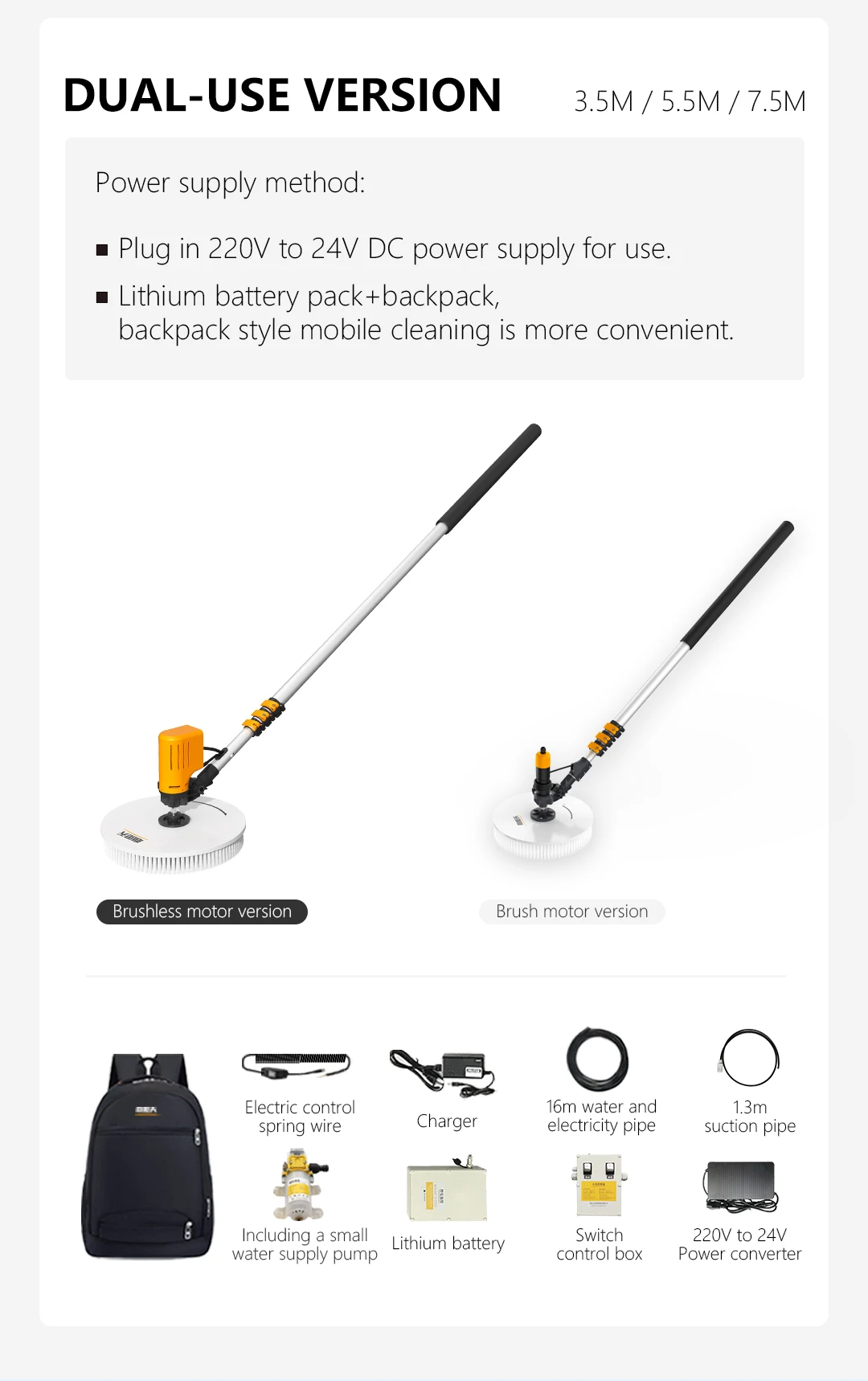

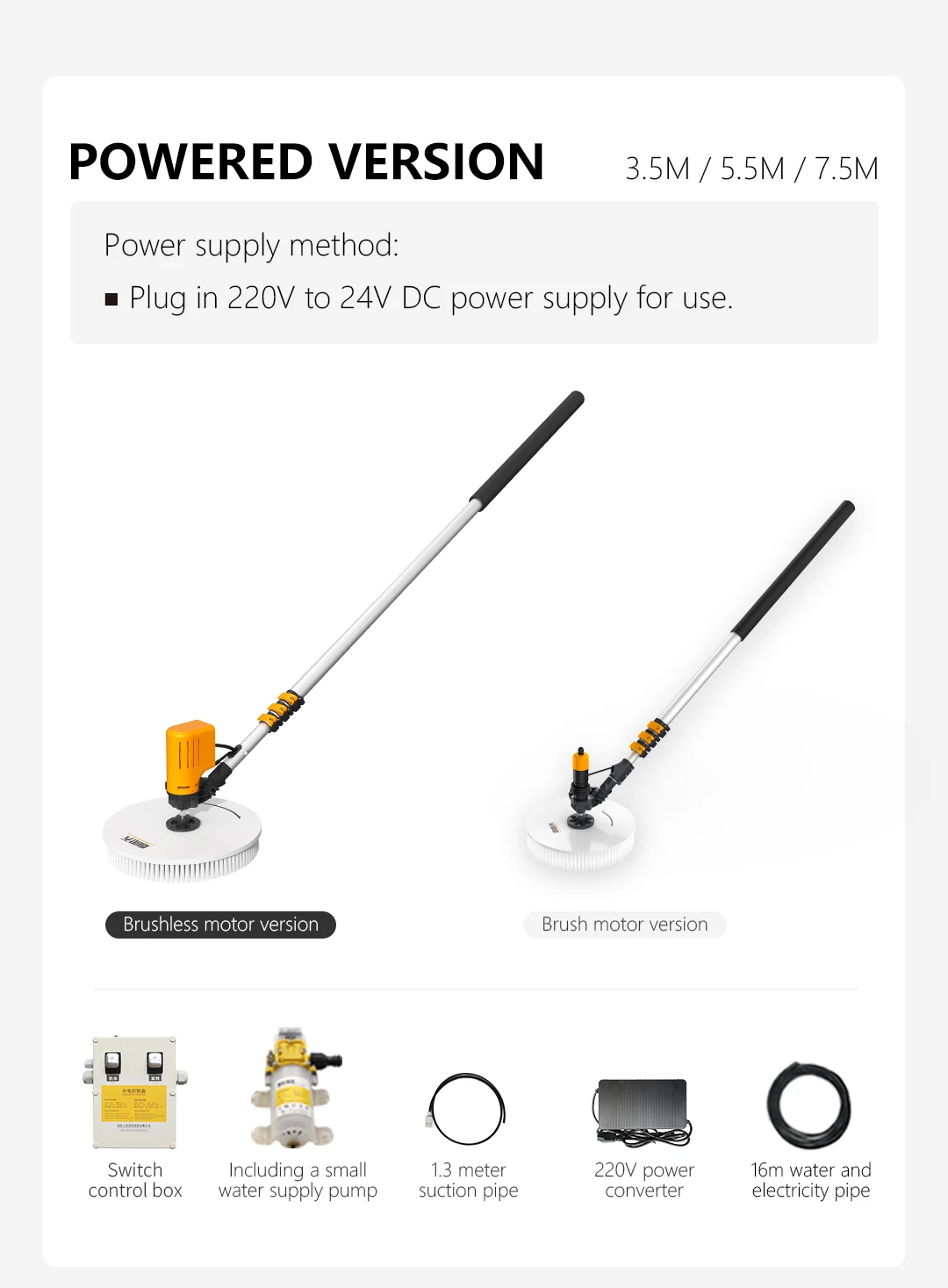

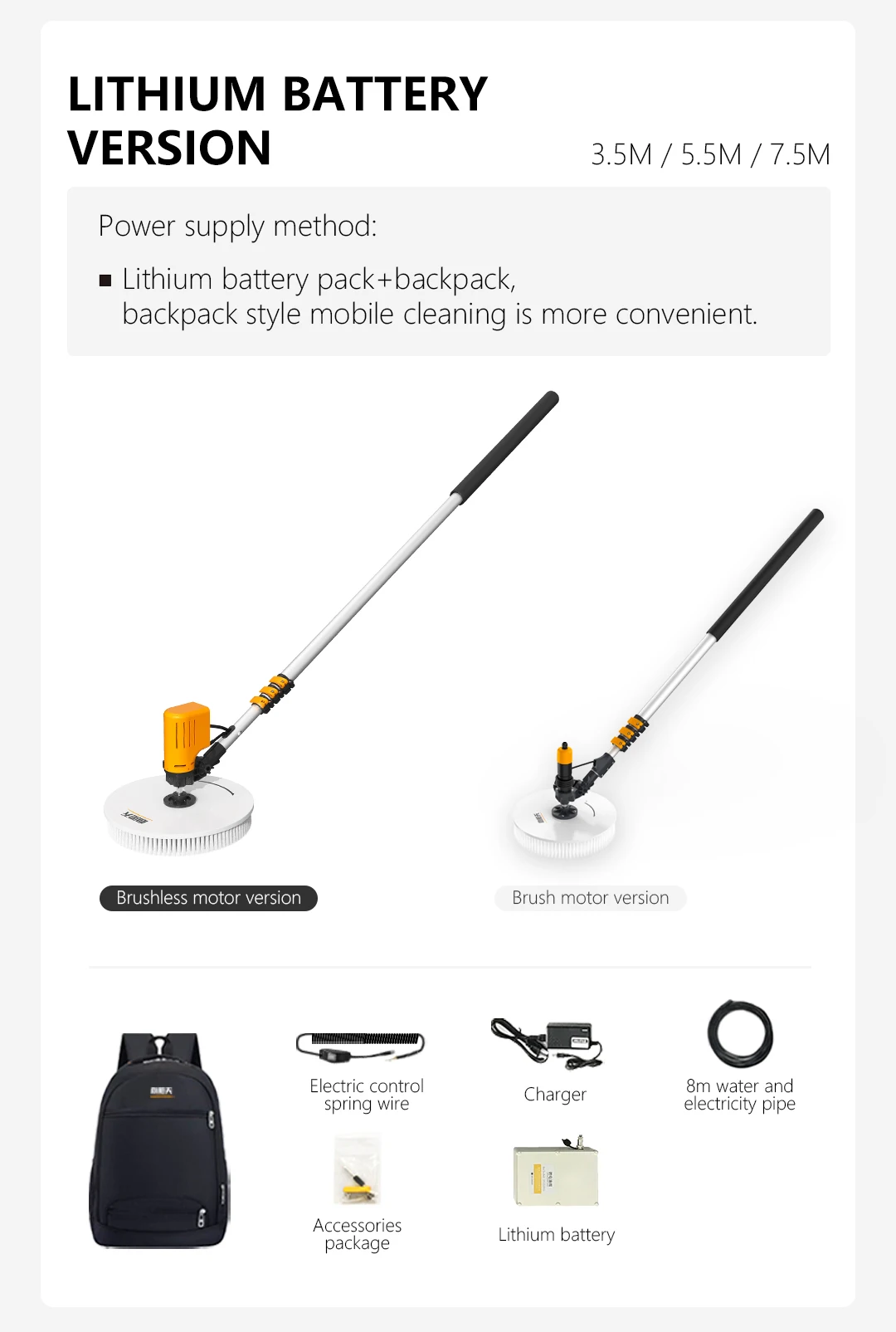

Version	Powered version	Lithium battery version	Dual-use version
Battery life		4-5h	4-5h
Charging time		8-10h	8-10h
Lithium battery voltage		24v	24v
Lithium battery capacity		26ah	26ah
Wire length	16m	8m	16m
Water pipe length	8m
Motor voltage	24V
power of motor	120W
Motor speed	320r/min
Cleaning width	30cm
Brush material	New nylon yarn
Water pump parameters	24V/100W
Power supply parameters	100-240V AC to 24V DC
Telescopic rod parameters
texture of wood	aluminium alloy
3.5m telescopic rod	Shorten the size 158cm/3 knots
5.5m telescopic rod	Reduce the size 183cm /4 knots
7.5m telescopic rod	Shorten the size 201cm/5 knots

Packing size	Length * width * height (cm)	weight (kg)
3.5m rod body packaging	1581010	2.8
5.5m rod body packaging	1831010	3.4
7.5m rod body packaging	2011010	4.5
Commercial power version box packaging	463827	8.5
Box packaging of lithium plate	463827	9.8
Dual-purpose box packaging	463838	5
* Note: The product is packaged in split type with rod body and box body, which may lead to two deliveries;

Rotation speed	350 rpm	300 rpm
	The rotating speed of the brushless motor version is increased by 15%The cleaning efficiency has been steadily improved.
Twist moment	150W	120W
	Brushless motor version has more power and torque,and it is more powerful, and it is still stable in dealing with oil pollution and rust environment.
Waterproof	IP7 level	IP5 level
	Brushless motor version can provide up to lP7 waterproof, and it can still run after being immersed in water for a short time to deal with highly polluted environment.
Lifespan	Theoretical life 20,000 hours	Theoretical life 5000 hours
	Brushless motor version adopts brushless technology,which reduces excitation loss and carbon brush loss,and has no spark inside,good stability and greatly improves product life.

Manufacturing Technique

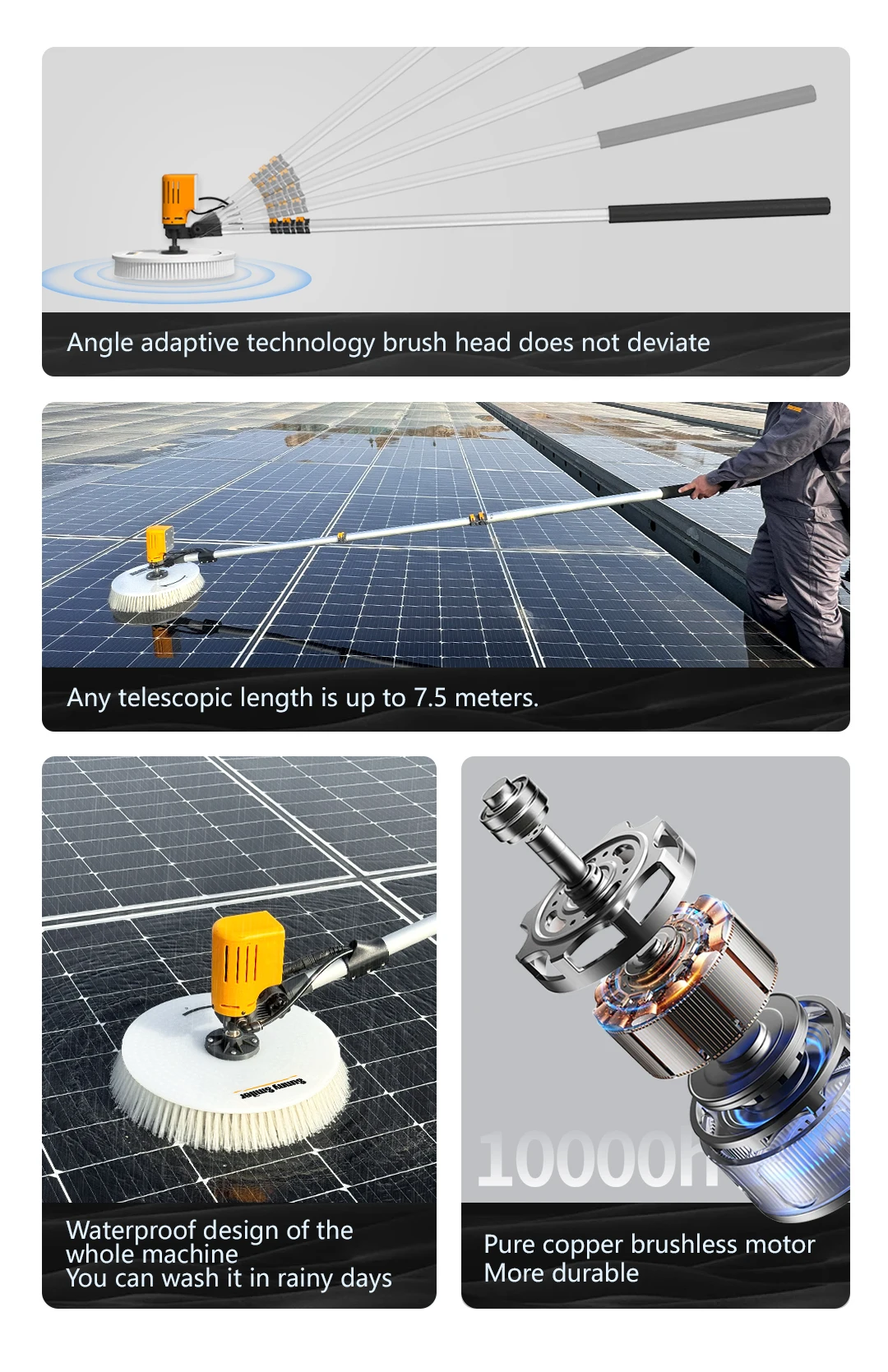

Angle adaptation Brush head does not deviate

During cleaning, a certain range of self-adaptive brush head angles can be provided according to the angle of the photovoltaic panel, and the self-adaptive angle range can be adjusted.The brush head is completely attached to the photovoltaic panel, so that the force is uniform, and it is not easy to deviate so it is better to control.

Arbitrary telescopic length Up to 7.5 meters long

The telescopic rod adopts the locking buckle structure for arbitrary telescopic locking, providing three lengths of up to 3.5m/5.5m/7.5m, which can be easily cleaned from the foot to a long distance, and the vertical photovoltaic panel array can be cleaned for up to 4 rows;(lf you need to customize a longer telescopic rod, please contact customer service.)

Pure copper brushless motor, more durable

More durable than ordinary brush motor, with a theoretical life of more than 10000 hours; At the same time, the motor itself has high dustproof and waterproof performance, and the dusty environment can be guaranteed not to be affected;

Principle of popular science: Brushless motor is electronically commutated without carbon brush; Brush motor commutates through carbon brush; Brushless motor is electronically commutated without carbon brush; Brush motor commutates through carbon brush;
Motor difference: Brushless motor has high efficiency, small size, no carbon brush wear and long life, but high cost; Brushed motor has low efficiency, large volume, worn carbon brush, short life, but low cost.

The whole machine is waterproof design, can be cleaned even in rainy days

to cope with the harsh environment of outdoor cleaning and the summary of product practice, the waterproof per-formance of the whole product can greatly improve the service life.

Therefore, this product adopts export-grade waterproof buttjoint and brushless waterproof motor. At the same time, the motor adopts integrated waterproof structure, which prevents water from soaking, prevents short circuit and oxidation rust,and is still reliable in rainy days.
