1) For maintenance of large scale power substation transformers, rapid and deep treatment of new transformer oil, imported
insulation oil. As well as vacuum filtering and purifying of mutual inductor oil, capacitor oil, refrigerator oil.
2) Especially suitable for purifying of large scale power transmission units higher than 110KV and transformers of main state grid
.

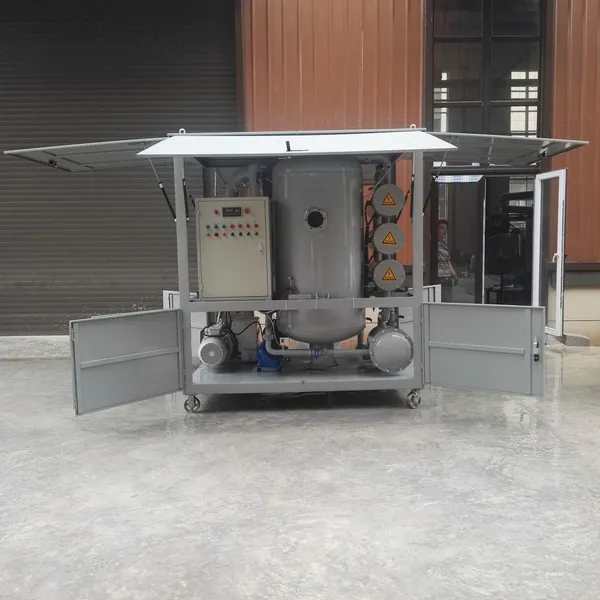

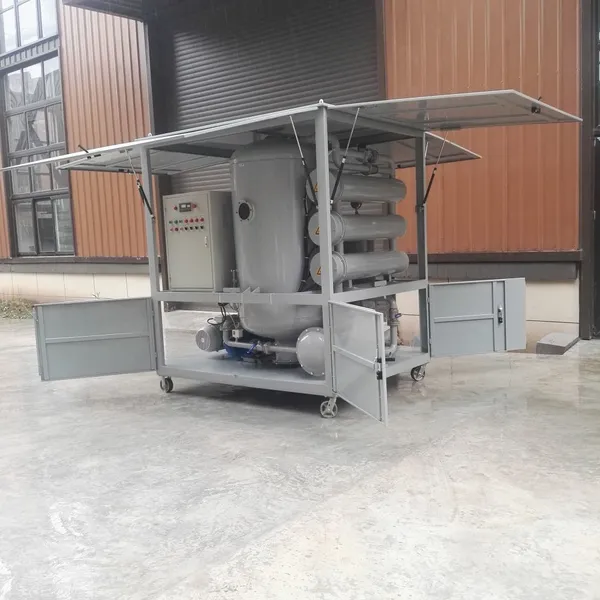

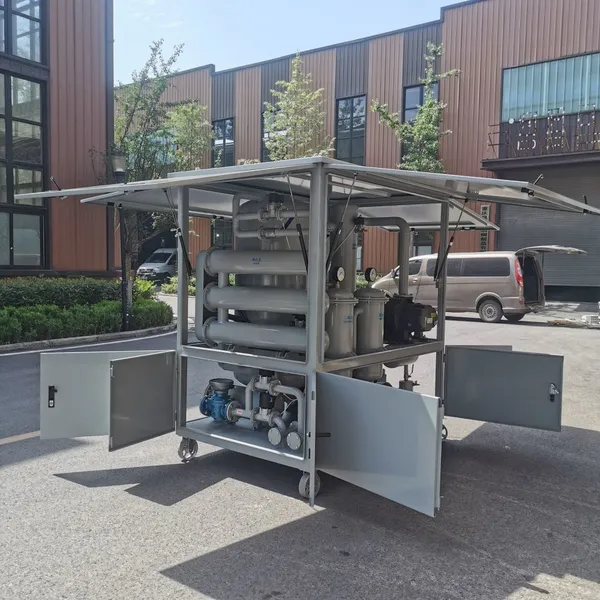

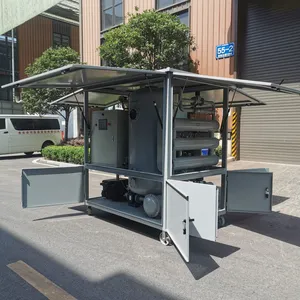

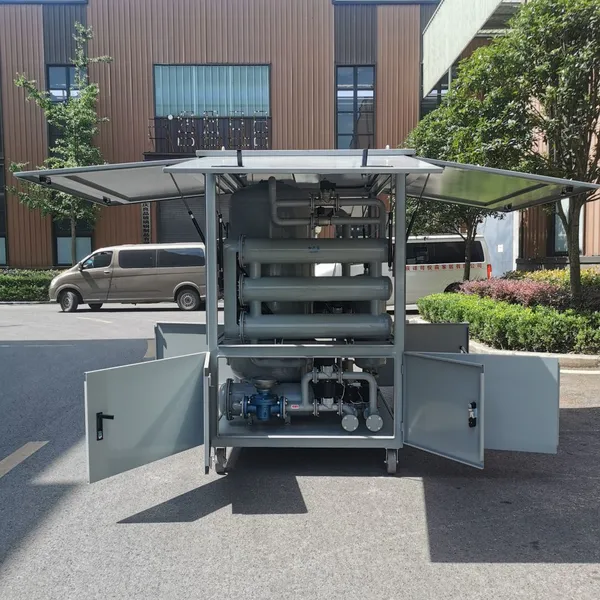

ZJA is double stage vacuum transformer oil purifier, which contain vacuum pump and roots pump. We can do more big capacity of m
achine, and the smallest one is ZJA-30, 1800L/H, The biggest one is more than 30,000L/H. The machine is adopted the rustproof and
moisture film and wood cases packages. We can take special order for you, like the machine face, color, weight, size, filter
precision, filter numbers, spare parts, oil specification tester, etc.
2. UK G technology by which the trace water that is show chain, such as dissolved water, can be removed ffectively.
3. Distinctive removing impurities system filtering through double FH trapezoidal network and absorbing by high polymer without
the mechanical power
4. Carbon fiber infrared heating system that can make the oil contains zero sum of ethyne after the treatment
5. Especially applied to vacuum oiling and drying for power transmission equipments which are over 110KV
6. The oil of any grades can be treated on line at the working site.
7. Can be operated both on-load and off-load.
8. Can be operated fully-automatically with PLC controller.
9. this Oil purifier can be made in hermetical, canopy-covering, open and frame style.
Advantage of Structures (ZJA)
1.To remove free, soluble water, carbon, free and dissolved gases and particulate matters, dust from insulating oil effectively
and rapidly.
2.With Vacuum pump and Roots pump.
3.Enhance the value of breakdown voltage greatly.
4.Easy handling and maintenance.
5.Inject oil into the transformers.
6.Lower maintenance and replacement expenses.
7.High performance security system including pressure protection device and automatic temperature controller makes purifier
operate safely.
8.Utilizes coacervation technology, coalescing technology, separating technology and refined purification technology. To remove
free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
9.Can design the machine according to your requirement, add weather-proof cover, close/open ventilation window, skid basic mounted
and enough lifting hook
10.Also can add 2 pneumatic tires and 1 pre-leg, it's convenient to move at any site.
