Portable Oil Filtration Machine
- Shanghai,Chongqing,any port of China
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 3 days
You May Like
-
Multifunctional Regeneration Two-Stage Vacuum Transformer Oil Filter
-
Turbine Oil Purification System
-
Automatic Hydraulic Oil Purification Machine
-
Purifier Hydraulic Oil Machine High Precision Oil Purifier Manufacturers
-
ZJA-J100 Insulation Oil Filtration Equipment Transformer Oil Treatment Plant
-
Press Filter Type Multifunctional Hydraulic Oil Purifier Machine
Product Details
| Brand Name | COREBAO | Place of Origin | China | |
| Model Number | YL-J50 | Certification | ISO9001:2015,CE,SGS | |
| After-sales Service Provided | No overseas service provided | Voltage | 380V/50Hz(On-demand customization) | |
| Usage | Lubricant Oil | Condition | New | |
| Power(W) | 1.1kW | Working Pressure | ≤0.4Mpa | |
| Flow | ≥3000L/h |
Product Description
Usage:
Portable and flexible size, easy to operate, portable oil filtration machine mainly used to clean and remove solid impurities, tiny particles from turbine oil, Lubricant oil, hydraulic oil, gear oil and other industrial oil with low viscosity. it also can use in the long-distance and the high-lift oil pumping and oil filling.
Parameter of YL portable oil filtration machine
Item | YL-B-30 | YL-B-50 | YL-B-80 | YL-B-100 | YL-B-150 | YL-B-200 | YL-B-250 | YL-B-300 | |
(L/H) Flow rate | 1800 | 3000 | 4800 | 6000 | 9000 | 12000 | 15000 | 18000 | |
(m) Lift distance | 6 | 8 | 8 | 10 | 12 | 15 | 15 | 15 | |
Filtration precision | 5 µm(or design according to requirement) | ||||||||
Working pressure | ≤0.4 MPa | ||||||||
Power consumption | 0.75 | 0.75 | 1.5 | 2.2 | 3 | 4 | 4 | 5 | |
Diameter of oil pipe | 25 | 25 | 42 | 42 | 50 | 50 | 60 | 60 | |
Power supply | 380V/50HZ3 phases(220V) | ||||||||
Weight | 78 | 82 | 105 | 135 | 150 | 180 | 225 | 265 | |
dimension | L mm | 700 | 720 | 850 | 900 | 1100 | 1150 | 1200 | 1250 |
W mm | 350 | 400 | 700 | 750 | 900 | 900 | 950 | 1000 | |
H mm | 900 | 900 | 950 | 950 | 1050 | 1050 | 1100 | 1100 | |
Features:

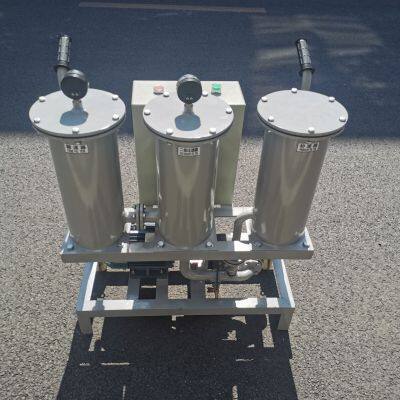

1. This machine has three filters, which respectively pre-filter, intermediate filter and fine filter.(just like the right
picture).The stainless steel filters element are applied that imported from Japan, ensure this machine can run safely with high performance and can continuously run about 720 hours.
2. Portable and flexible, and it is designed looks like go-cart for easy to operate.
3. Environment-friendly and energy-saving, without filtration paper and will not pollute the location.
4. There is a wider usage and longer life-span compare with ordinary pressure oil purifier.
--YL-B contain pressure protector, which will alarm automatically when it’s overpressure
--YL-R contain heating system, when oil viscosity≥200cSt, you can choose this one
--YL-A hand-held single-stage oil purification plant, which widely used in factory, power plant, oil storage and laboratory, also it can be used to clean oil filling.
Packing & Shipping
Wooden Cases: strong wooden cases, suitable for long distance ocean freight transportation and changing climate, good resistance to moisture and shocks
And to your requirement, by Express, by Sea and by Air.
