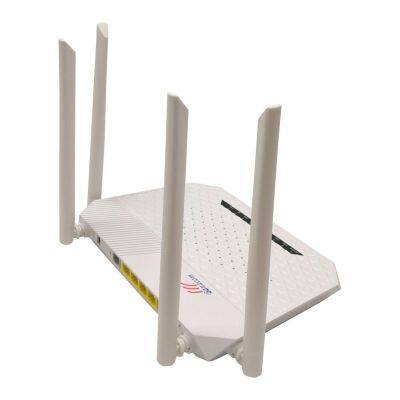

4GE ONU GPON Wifi ac 2.4G and 5G, Compatible With Most Brands OLT photo-2

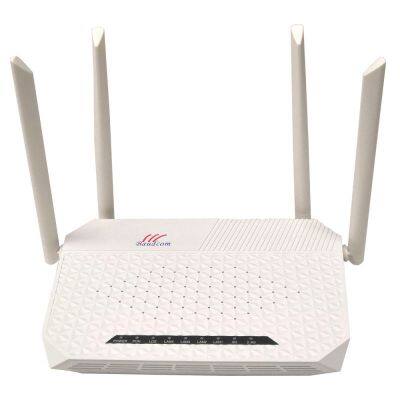

4GE ONU GPON Wifi ac 2.4G and 5G, Compatible With Most Brands OLT photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
South America, South Asia
Contact Supplier Request Quote Chat Now
Shanghai Baudcom Communication Device Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

The ONU GPON wifi ac is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access .BD-ONU-114HW-AC is based on mature and stable, cost-effective XPON technology. The dual band wifi ONU could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT. BD-ONU-114HW-AC adopts high reliability, easy management, configuration flexibility and good quality of service  guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X

ONU GPON wifi ac Feature


    • dual band wifi ONU support EPON/GPON mode and switch mode automatically

    • Support Route mode for PPPoE/DHCP/Static IP and Bridge mode

    • Support IPv4 and IPv6 Dual mode

    • Support 2.4G&5.8G WIFI and Multiple SSID

    • Support SIP Proctol for Voip Service

    • Support LAN IP and DHCP Server configuration

    • Support Port Mapping and Loop-Detect

    • Support Firewall function and ACL function

    • Support IGMP Snooping/Proxy multicast feature

    • Support TR069 remote configuration and maintenance

    • Specialized design for system breakdown prevention to maintain stable system

    • The ac wifi onu can be compatible with most brand GPON OLT, Huawei/ZTE/Baudcom/BDcom etc.

Specification

Hardware Specification

Technical item Details
PON Interface 1 GPON BoB（Bosa on Board）
Receiving sensitivity: ≤-27dBm
Transmitting optical power: +1~+4dBm
Transmission distance: 20KM
Wavelength TX: 1310nm, RX: 1490nm
Optical Interface SC/APC Connector
Design Scheme RTL9607C+RTL8192FR(2.4G)+RTL8812ER(5G)+Si32192 BOB(RTL8290B)
RAM 2Gbit DDR3
Flash 1Gbit SPI NAND Flash
LAN Interface 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
ONU GPON wifi ac Wireless onu gpon wifi ac compliant with IEEE802.11b/g/n, 802.11ac (2.4G and 5G)
2.4G Operating frequency:2.400-2.4835GHz
5.8G Operating frequency:5.150-5.825GHz
TX power: 11n–22dBm/11ac–24dBm
2.4G 2*2 MIMO, rate up to 300Mbps
5.8G 2*2 MIMO ,rate up to 867Mbps
4 external antennas 5dBi
Support Multiple SSID
USB Standard USB2.0
LED 11 LED, For Status of PWR、LOS、PON、LAN1~LAN4、2.4G、5.8G


Worn、 Normal(CATV)
Push-Button 2 ,For Function of Reset and WPS
Operating Condition Temperature: 0℃~+50℃
Humidity: 10%～90%（non-condensing）
Storing Condition Temperature: -30℃~+60℃
Humidity: 10%~90%（non-condensing）
Power Supply DC 12V/1A
Power Consumption ≤6W
Dimension 260mm×158mm×192mm（L×W×H）
Net Weight 0.35Kg
Storing Condition Temperature: -30℃~+60℃
Application
ONU GPON wifi ac application

GPON ONU wifi ac application

Order information
Product Model Descriptions Inquiry
BD-ONU-114HW-AC 4G+USB+wifi dual band (2.4G&5G), XPON ONU, power AC220V Request Price
