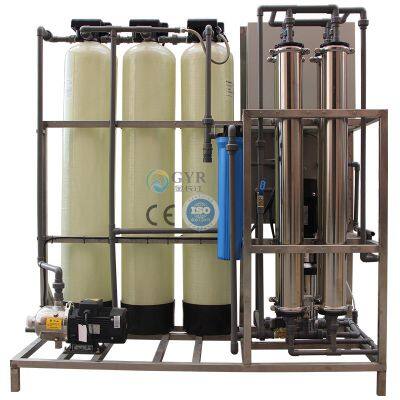

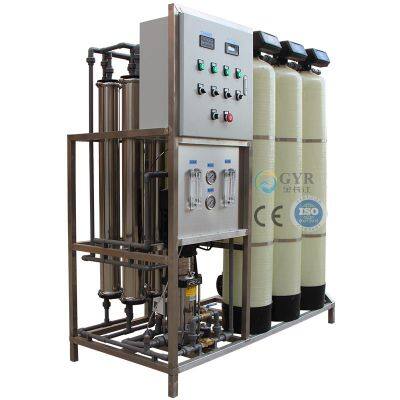

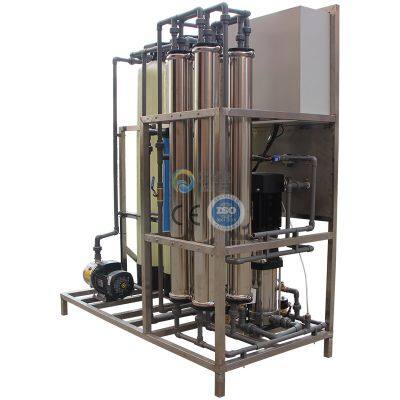

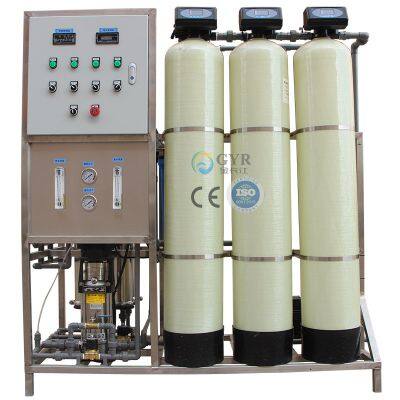

Help Center1 Ton Pure Water Equipment Reverse Osmosis 1000L Industrial Water Purification Water Quality Processor
Related Products
-
Reverse Osmosis Water Filter MachineNegotiableMOQ: 1 Set -
Automatic Packing Production Line Single Grade Reverse Osmosis Water PretreatmentNegotiableMOQ: 1 Unit
-
Reverse Osmosis MachineUS$ 1,500 - 35,000MOQ: 1 Set
-
Reverse Osmosis Water PurifierUS$ 1,500 - 3,000MOQ: 1 Set
-
Desalination Reverse Osmosis Use N08926 Stainless Steel Bars, Brine Resistance, Super Austenitic, Precision Bar, Cold Drawing, ASTM A479NegotiableMOQ: 10 Kilograms
Process flow description of purified water equipment:
The first stage pre-treatment system adopts a quartz sand multi-media filter, mainly aimed at removing harmful substances to human body such as sediment, manganese, rust, colloidal substances, mechanical impurities, suspended solids and other particles above 20UM in water. The automatic filtration system adopts a lubrication controller, which can automatically perform a series of operations such as backwashing and positive flushing. At the same time, the equipment has a self maintenance system and low operating costs. The filter materials mainly include: PPF, AC coconut carbon, etc.
Second level pretreatment system: using activated carbon filters to remove pigments, odors, and a large amount of biochemical organic compounds from water, reducing residual chlorine value, pesticide pollution, and other harmful pollutants to human health. The automatic filtration system adopts a lubrication controller, which can automatically perform a series of operations such as backwashing and positive flushing.
Third level pretreatment system: Cationic resin is used to soften water, mainly to remove the hardness of the water. The hardness of water is mainly composed of calcium (Ca2+) and magnesium (Mg2+) ions. When the raw water containing hardness ions passes through the resin layer, the Ca2+and Mg2+in the water are exchanged and adsorbed by the resin. At the same time, sodium and Na+ions are released by the same mass of substances. The water flowing out of the water softener is softened water without hardness ions. This effectively prevents scaling of the reverse osmosis membrane. The system can automatically perform recoil, forward thrust, etc. And intelligent resin regeneration can be carried out to extend the service life of the system.
The fourth level pre-treatment system: uses a 5-micron aperture precision filter to further purify the water, optimizing its turbidity and chromaticity. Ensure the water inlet requirements of the RO system. The main system of the purified water equipment adopts reverse osmosis technology for desalination treatment. The pore size of the reverse osmosis membrane is only 0.0001 micrometers, which can remove harmful soluble solids, bacteria, viruses, etc., with a desalination rate of over 99.6%, producing purified water that meets national standards. The main system includes a security filter, high-pressure pump, and reverse osmosis membrane. The security filter is the fourth level pre-treatment system mentioned above. The high-pressure pump is one of the core equipment on the main unit, providing sufficient pressure for the reverse osmosis membrane components to overcome osmotic pressure and operational resistance, and meet the rated water output of the device.
The ozone sterilization system has strong oxidizing properties and four main functions: sterilization, oxidation, decolorization, and deodorization. When used for water disinfection, when the concentration is 4mg/l, it can kill all bacteria in 0.5-1 minutes. At the same time, ozone dissolves in water to form oxygen rich water, ensuring the purity and freshness of the water without losing its water activity.
Application scope:
Preparation of pure and ultrapure water in industries such as electronics, medicine, and food;
Purification and preparation of water for textile and chemical industries;
Purification and preparation of water for food and beverage, as well as brewing processes;
◆ useful substances and concentration and recovery of aqueous solutions in industrial production;
Pre desalination treatment of supply water for high-pressure boilers in power plants and other enterprises;
Desalination and desalination of brackish water and seawater;
◆ As a primary desalination equipment for high-purity water production.
Various enterprises and institutions with a large number of people, such as communities, schools, factories, hospitals, tea houses, hotels, beauty salons, canteens, etc
Can be used for the production of bottled water such as bottled water and mineral water. Maintenance: RO (0.25T/H, 0.5T/H, 0.75T/H, 1.0T/H) reverse osmosis equipment will integrate a complete and formal process for producing purified drinking water, with clear processes and easy maintenance.
