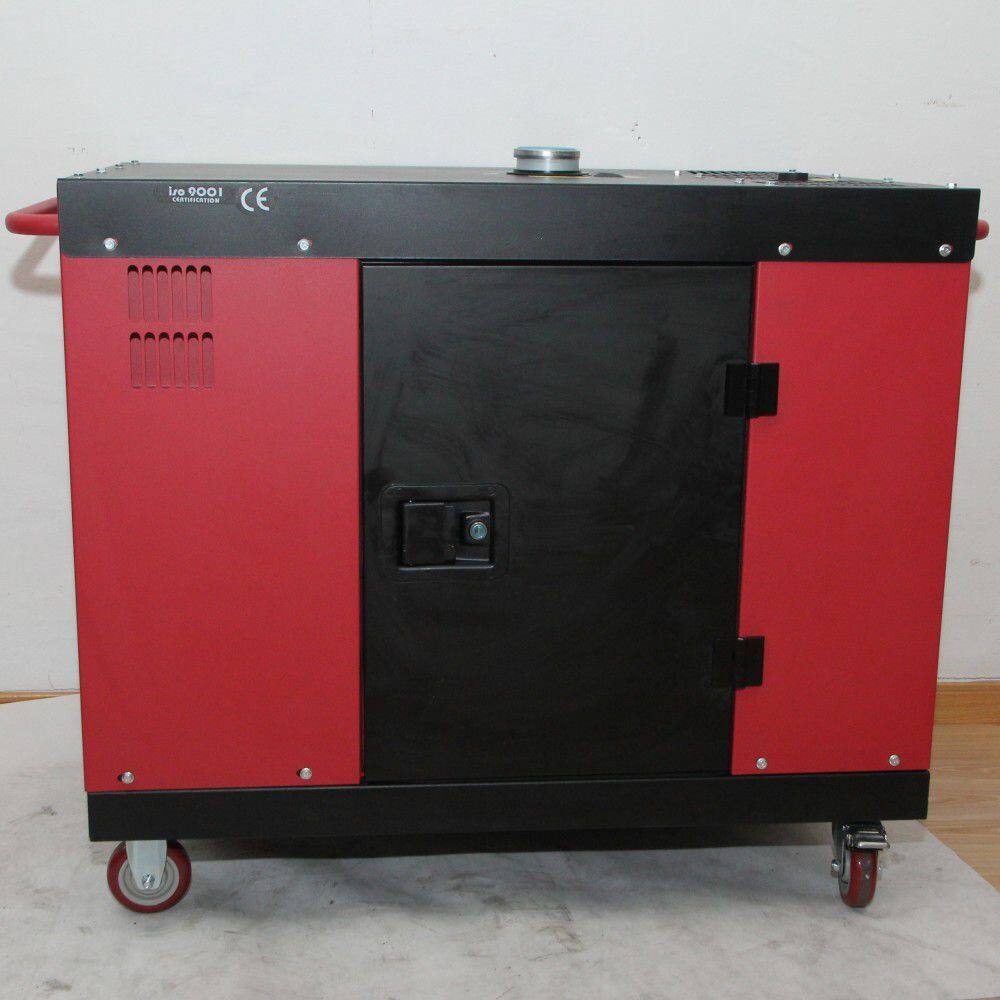

7kW 3-Phase 380V Silent Diesel Generator 1100F Engine
Product Spotlights
Rated Power 7kw, Max Power: 7.5kw 3-phase 380V, powered by 1100F single-cylinder air-cooled diesel engine. • 100% pure copper alternator with AVR, stable voltage for industrial & home use. • Silent canopy ≤72dB, air-cooled design for easy maintenance. • Electric start, 25L tank, 12hrs runtime, wheel kit for mobility.
US$ 860 - 910
MOQ: 20 Sets
Key Specifications
Get Latest Price
Type:
Basic Diesel Generator
Warranty:
1 Year
Stroke:
Four Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
20 days
Related Products
-
7kw Single Phase 220v Air-cooled Silent Diesel Generator 1100Fdiesel EngineUS$ 840 - 890MOQ: 20 Sets -
Belon Power DGW190AC Diesel Welding GeneratorUS$ 530 - 580MOQ: 20 Sets
-
Belon Power DGW230AC Diesel Welder Generator With 2kW Auxiliary Power, for Industrial Outdoor Construction & Pipeline WeldingUS$ 590 - 640MOQ: 20 Sets
-
10KW Single Phase 220V Diesel Generator With 2V88F Engine & 100% Copper AlternatorUS$ 1375 - 1475MOQ: 10 Sets
-
10kw Three Phase 380v Diesel Generator 2V88F Diesel EngineUS$ 1421 - 1521MOQ: 10 Sets
Type
Basic Diesel Generator
Warranty
1 Year
Stroke
Four Stroke
Usage
Common Units
Speed
HSS
Cooling Method
Air Cooled
After-sales Service
Send parts with next order
Installation Method
Portable
Excitation Mode
Other, Self-excited
Conditions of Use
Land Use
Landuse Type of Unit
Ordinary
Output Type
AC Three Phase
Transport Package
Carton
Specification
DG11000SE-3
Trademark
Belon Power
Origin
Chongqing, China
7kW 3-Phase 380V Silent Diesel Generator 1100F Engine
| Model | DG11000SE-3 |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 220/380.230/400.240/415 |
| Rated Power( KW) | 7.0 7.5 |
| Max. Power(KW) | 7.5 8.0 |
| Rated Output Current（A ) | 10 10.8 |
| DC Output | 12V 8.3A |
| Phase | Three phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 25 |
| Engine Model | 1100FE |
| Start Method | Electric Start |
| Engine Type | Single cylinder,4-stroke,air-cooled, vertical |
| Bore*Strokke[mm] | 1-100*85 |
| Displacement | 0.667L |
| Compression Ratio | 19.5：1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 10 10.5 |
| Oil Capacity[L] | 2 |
| Fuel Consumption[g/kwh] | ≤285 ≤295 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS |
| Remote Control | |
| Intelligent digital display panel | |
| Size [mm] (L*W*H) | 1140*670*770 |
| Packing Size [mm] (L*W*H) | 1220*795*1000 |
| Net Weight/Gross Weight[Kg] | 175/185 |
