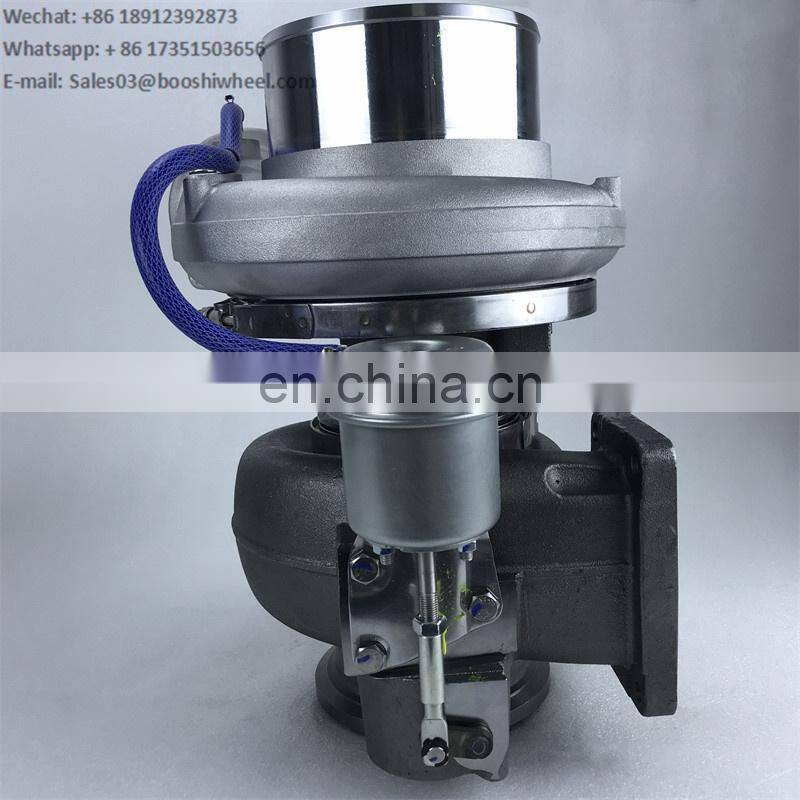

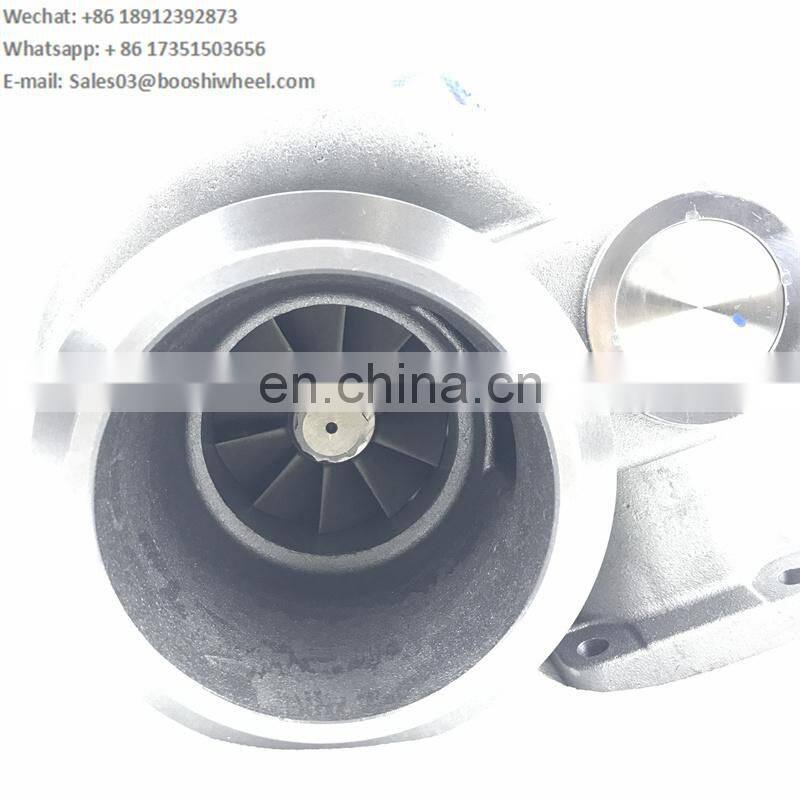

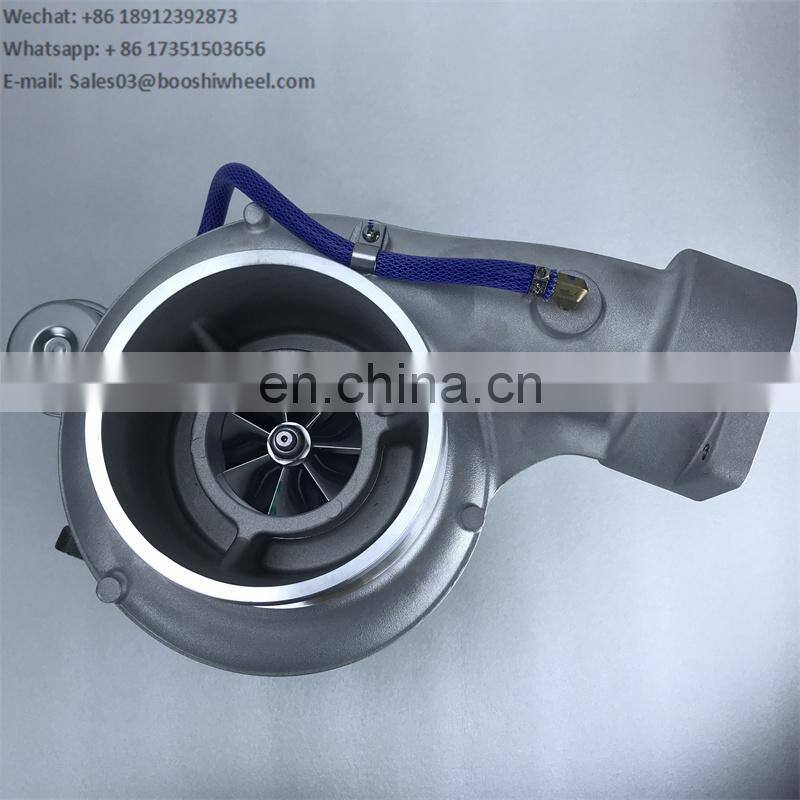

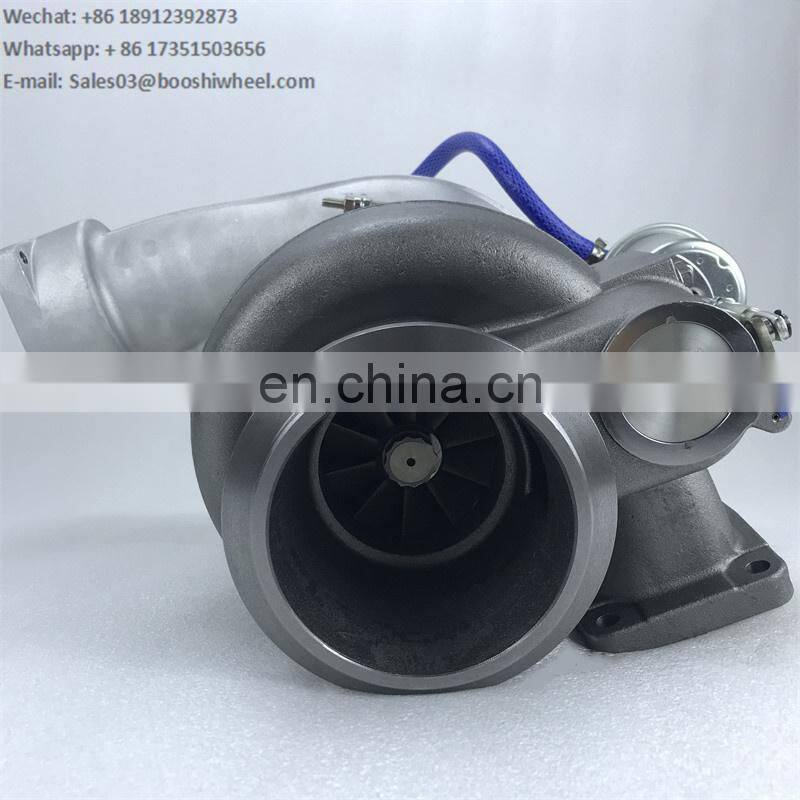

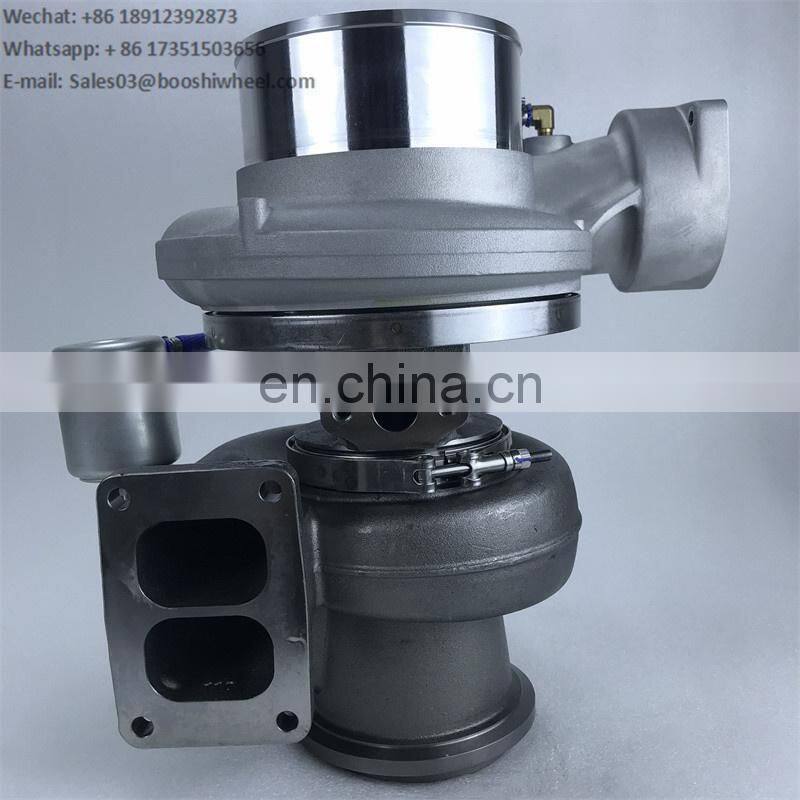

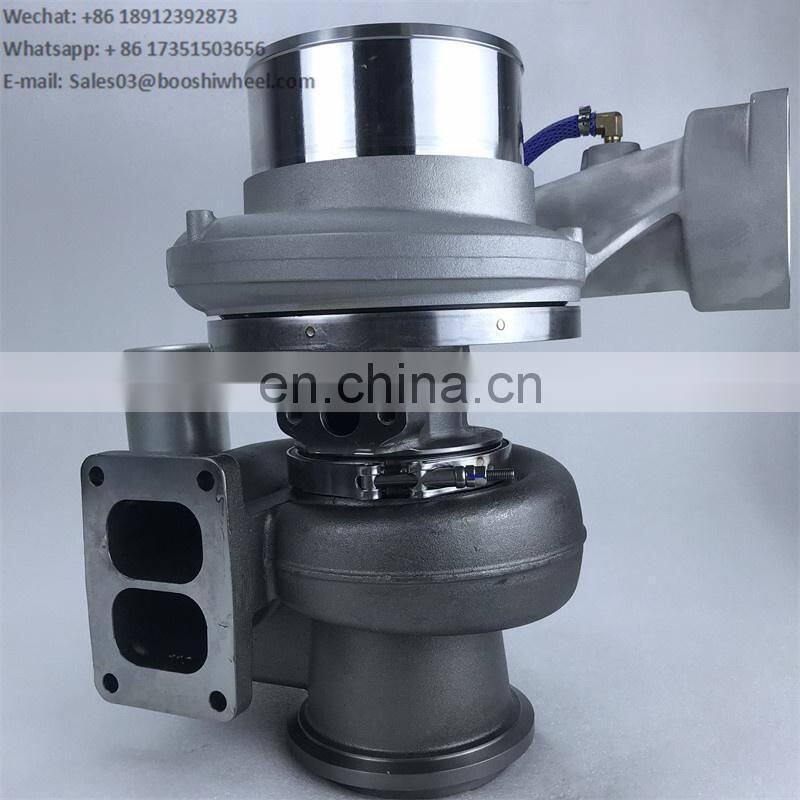

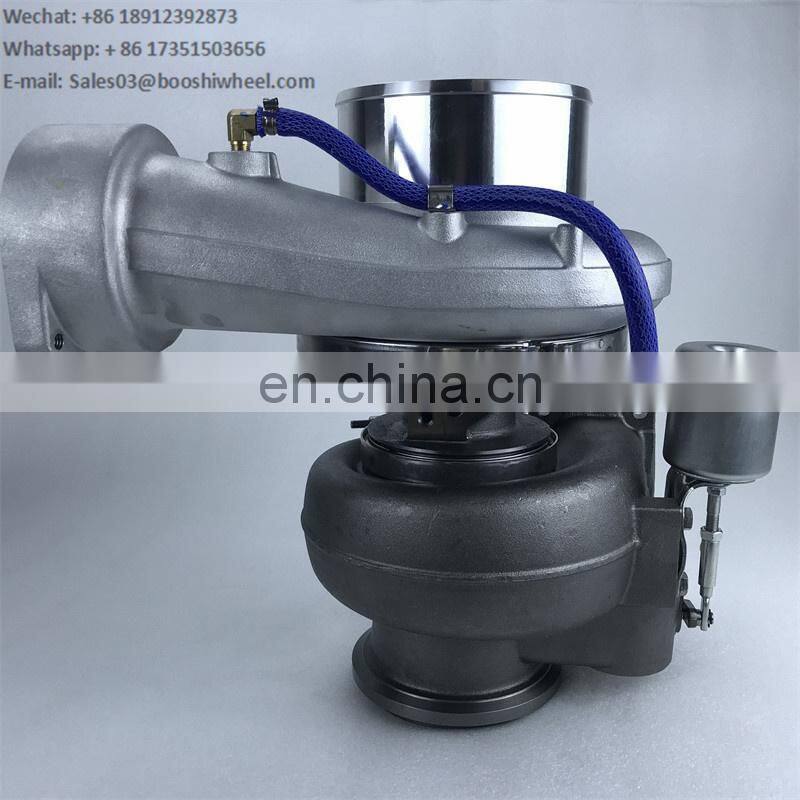

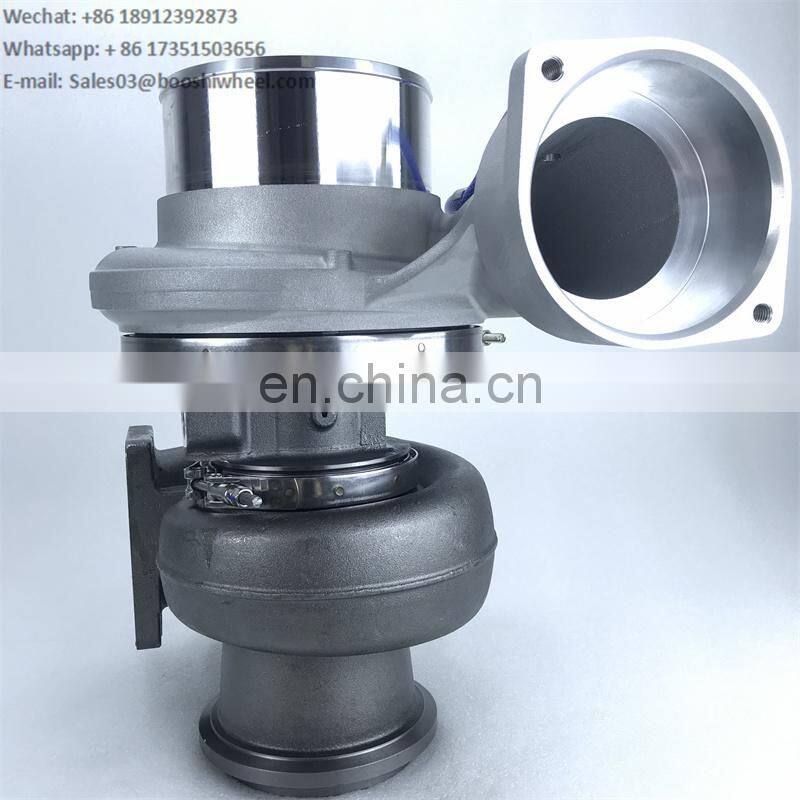

New Turbo S410G 174260 1323649 1243759 0R7205 0R6990 Turbocharger for CAT Industrial Truck 3456 3406C 3406E 14.64L Engine

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2007

Overseas Office:

Yes

Sunshinepower (wuxi)co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

New turbo S410G 174260 1323649 1243759 0R7205 0R6990 turbocharger for CAT Industrial Truck 3456 3406C 3406E 14.64L engine

Product Description

Specification

Part Number	174260
OE number	0R7205, 132-3649, 1323649, 1243759, 124-3759, 0R6990
Year	1994-01
Description	Truck
Manufacturer Part Number	471120-0001
CHRA	174248 (169062, 161-6780, 10R-0510, 0R7287, 451686-0006) $450.00 NEW IN STOCK, MADE IN USA
Turbo Model	S410G
Prefix	4AS, 5EK, 6TS, 3LW
Displacement	14.64L, 14640 ccm
KW	372/500
Engine	3406C, 3406E, (Earlier 3406E)
Engine Manufacturer	Caterpillar
Fuel	Diesel
Engine speed	1800
Truck Engine	3406E
Industrial Engines	3456
S/N	5EK99999-99999, 6TS681-99999
Fuel	Diesel
Bearing Housing	174246 NEW IN STOCK
Turbine Wheel	169346 (Ind. 81.74 mm, Exd. 91.44 mm, 10 Blades) NEW IN STOCK
Comp. Wheel (Hipped)	171691 (Ind. 74.57 mm, Exd. 105.3 mm, Trm 53, 7+7 Blades, Billet) $149.00 NEW IN STOCK
Back plate	167783 $47.75 NEW IN STOCK
Heat shield Number	167790 NEW IN STOCK
Repair Kit	318396 (318397)(1253400750) $89.90 NEW IN STOCK
Turbine Housing	1243762 $1269.05
Compressor Cover	1267966, 1963846 $734.39
Gasket Kit	318417 $14.00
174260	Up-graded 174259
NOTE	The 174260 and the 177148 are very similar turbos, the wheel measurements are exactly the same, the only difference is the exhaust housing, the 174269 uses a W/G 1.10 A/R housing while the 177148 uses a 1.32 A/R housing the overall horsepower different between the two and what they will support is 100 hp, the larger housing allows the engine to breathe a little better and will support 600 hp versus 500 hp for the smaller housing.
Replaced By	471120-0001
