Home > Products > Modify performance turbo > G35 1050 G35-1050 Turbo 880695-5002s Standard Rotation Ball Bearing Stainless Steel Turbocharger

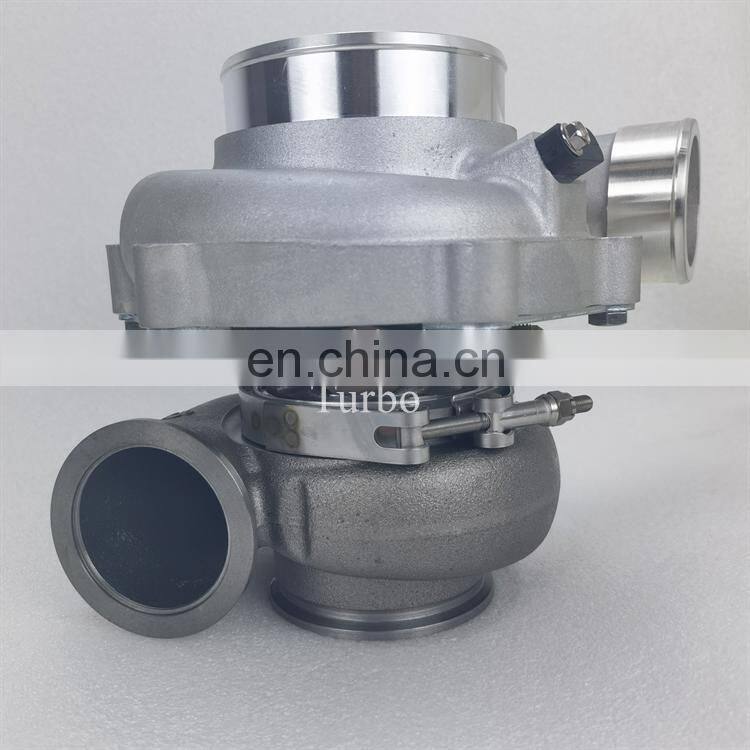

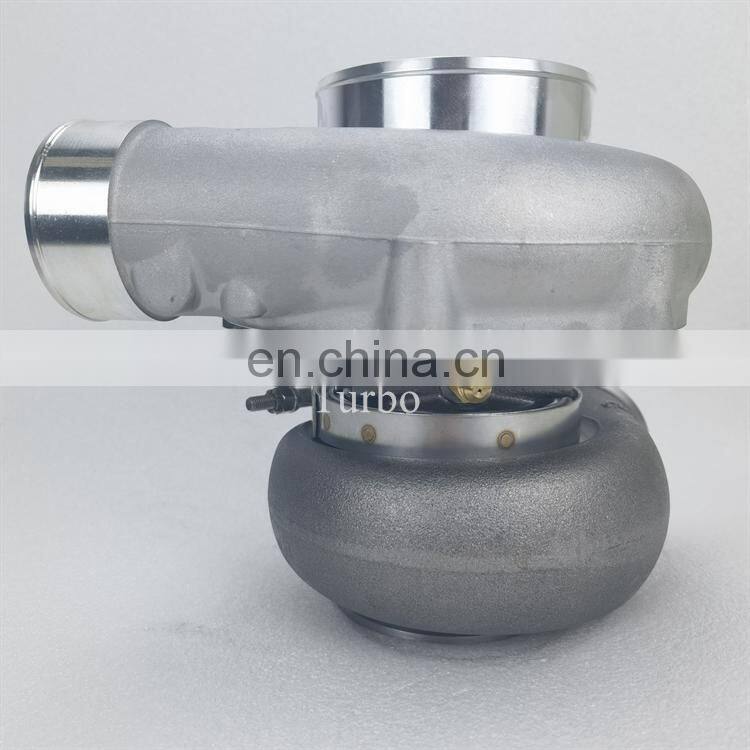

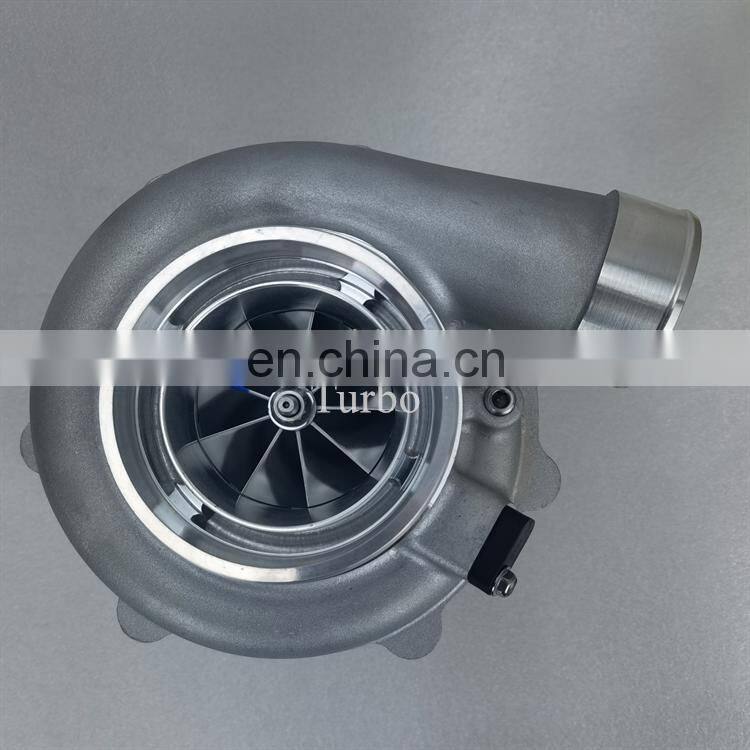

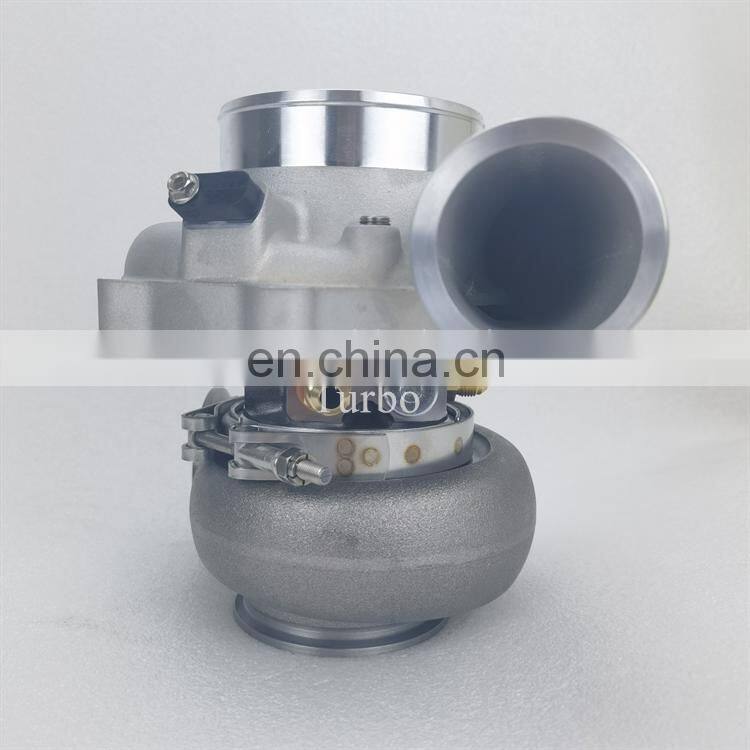

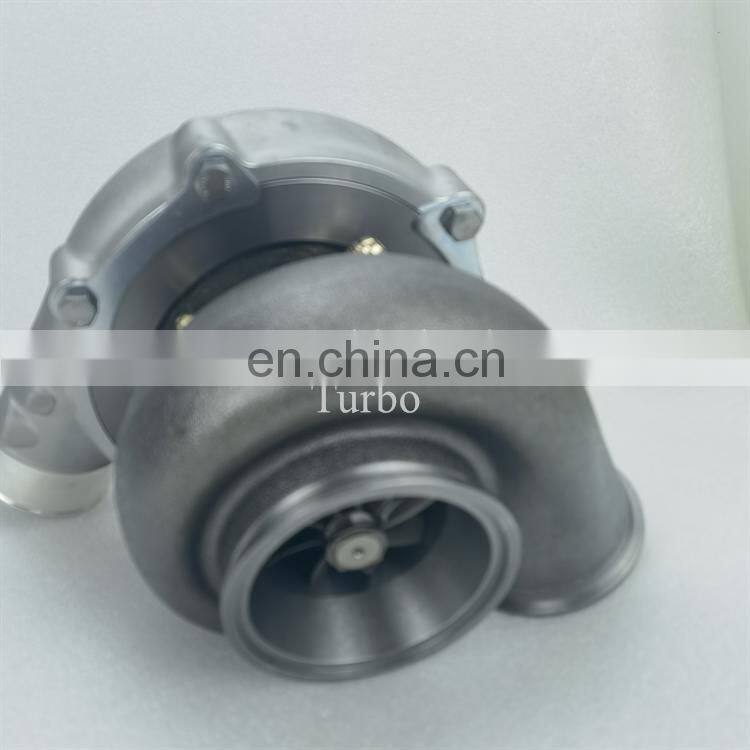

G35 1050 G35-1050 Turbo 880695-5002s Standard Rotation Ball Bearing Stainless Steel Turbocharger

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

G35 1050 G35-1050 turbo 880695-5002s Standard Rotation ball bearing stainless steel turbocharger

Welcome to contact us :

November Gao.

Mob/Wechat/WhatsApp: 8618912476630

produtct description

Horsepower: 700 - 1050HP
Displacement: 2.5 - 5.5L
Garrett^® G Series Compressor Aerodynamics for maximum HP.
Fully machined Speed Sensor and pressure ports.
New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC
Stainless Steel wastegated and non wastegated turbine housing option capable of 1050°C.
Oil restrictor and water fittings included.
Reverse rotation.
Compressor side: TRIM 65 A/R 0.75
Compressor Air Inlet: Hose 4.00" (101.60mm)
Compressor Air Outlet: Hose 2.00" (51.15mm)
Bearing housing: Water and Oil cooled system.

Product Description:
Garrett® G35-1050 REVERSE Rotation Supercore (Turbo without turbine housing).
Product Features:
New G Series compressor wheel aerodynamics
Fully machined speed sensor and pressure ports
Standard and reverse rotation configurations available
Oil restrictor and water fittings included with purchase
One piece center housing and backplate for increased durability
4 water jacket ports for customizable installation
Mar-M turbine wheel material rated up to 1050° C | 1922° F
Product Specifications:
Compressor Wheel Inducer: 68mm
Compressor Wheel Exducer: 84mm
Compressor Wheel Trim: 65
Compressor Housing A/R: 0.72
Turbine Wheel Inducer: 68mm
Turbine Wheel Exducer: 62mm
Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
Oil feed fitting with .035" restrictor: ATP-OIL-021
Oil drain flange: Product Code: ATP-FLA-010
Oil drain gasket: Product Code: GRT-GSK-008
Oil drain fasteners: Product Code: MIA-FST-034
Boost Pressure Port Fitting: ATP-FTG-198

NOTE: Alternate coolant and oil fittings and flanges are available.
