Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Engineering & Construction Machinery Parts > G35 900 G35-900 Turbocharger 880696-5001S 880696 Turbo With Ball Bearing and Stainless Steel Turbine Housing

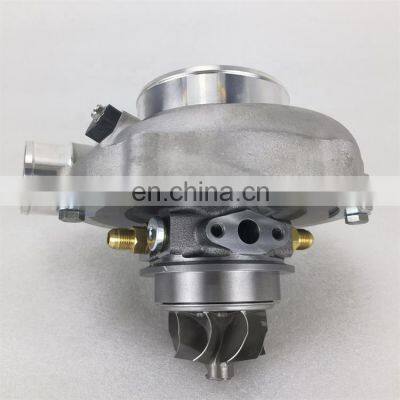

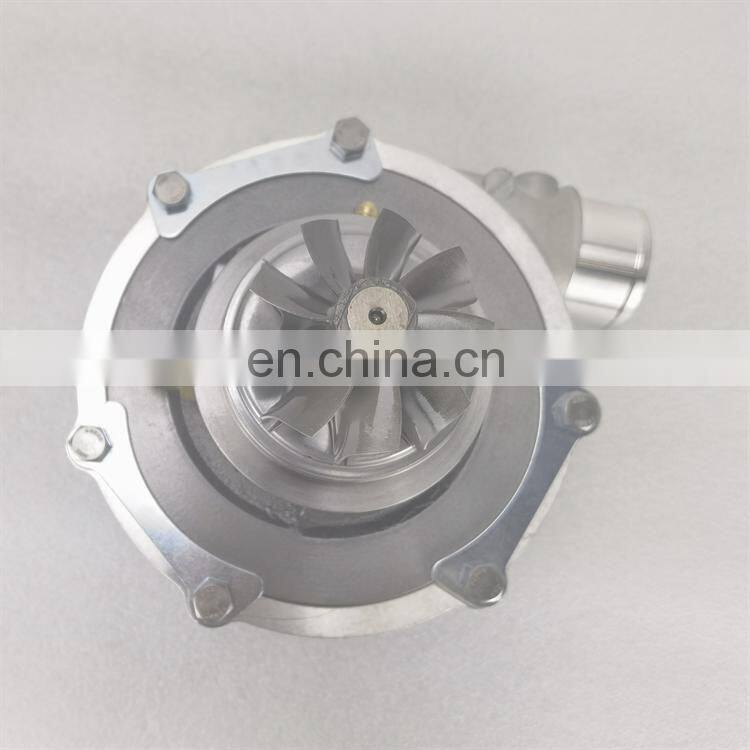

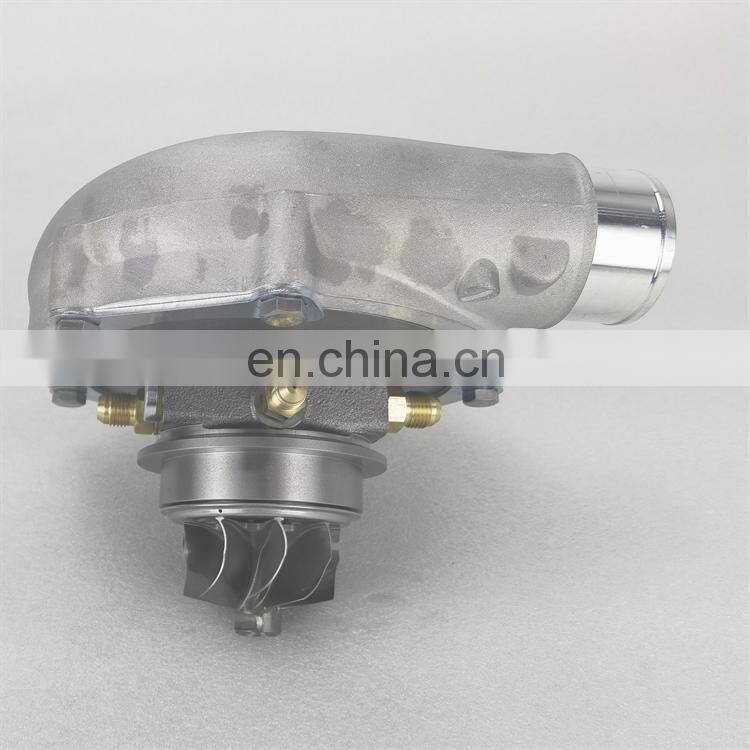

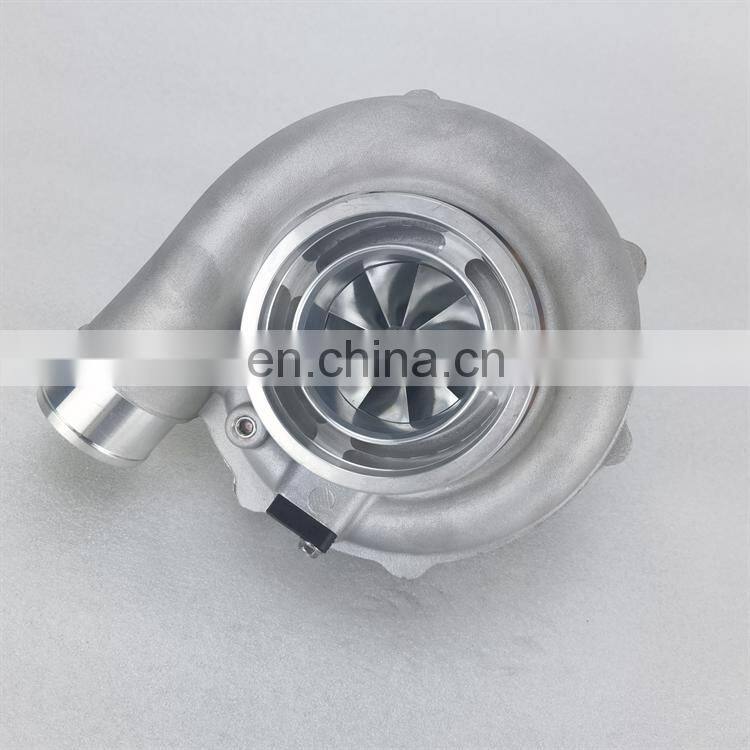

G35 900 G35-900 Turbocharger 880696-5001S 880696 Turbo With Ball Bearing and Stainless Steel Turbine Housing
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2007
Overseas Office:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Genuine G25-660 871388-5002S Turbocharger Reverse Rotation AR 0.72 Ball Bearing Performance TurboNegotiableMOQ: 1 -
Genuine 871389-5002S G25 G25-660 Modify Turbo Dual Ball Bearing AR 0.92 TurbochargerNegotiableMOQ: 1
-
Tial MVS 38mm Upgrade 908827-0002 Black Water Cooled Valve GVW-40 External Wastegate Kit 40mm V-BandNegotiableMOQ: 1
-
New G25-550 Standard Rotation AR 0.49 T25 Stainless Steel Turbine Housing G25 877895-5001s 877895 877895-5001S 877895-5011sNegotiableMOQ: 1
-
New Products G25 G25-660 AR 0.49 T25 Stainless Steel Turbine Housing Standard Rotation Flapper K418 MaterialNegotiableMOQ: 1
G35 900 G35-900 turbocharger 880696-5001S 880696 Turbo with ball bearing and stainless steel turbinehousing
Welcome to contact us :
November Gao.
Mob/Wechat/WhatsApp: 8618912476630
produtct description
| Turbo Model |
G35-900 |
| part number |
880696-5001S |
| Rotation | Reverse |
| Condition | Brand New |
- Horsepower: 550 - 900HP
Displacement: 2.5 - 5.5L - Garrett® G Series Compressor Aerodynamics for maximum HP.
- Fully machined Speed Sensor and pressure ports.
- New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC

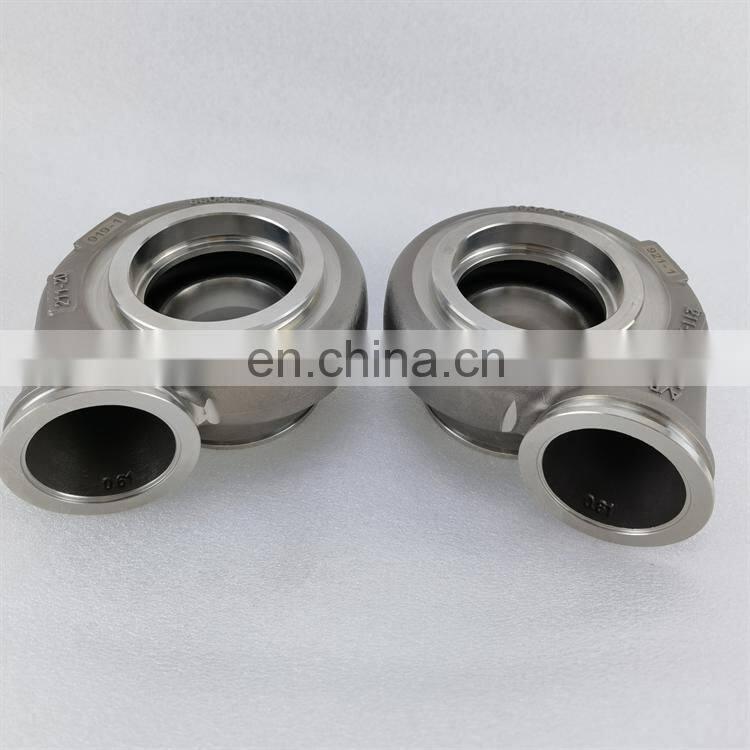

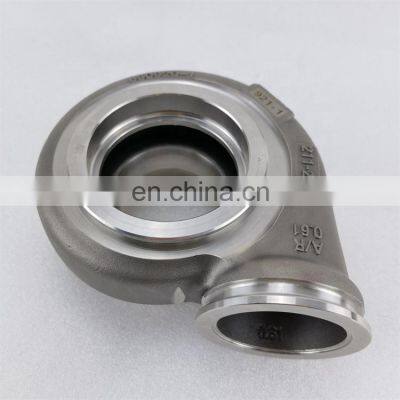

- Stainless Steel wastegated and non wastegated turbine housing option capable of 1050°C.
- Oil restrictor and water fittings included.
- Reverse rotation.
- Compressor side: TRIM 65 A/R 0.72
- Compressor Air Inlet: Hose 4.00" (101.60mm)
- Compressor Air Outlet: Hose 2.00" (51.15mm)
- Bearing housing: Water and Oil cooled system.
- Product Specifications:
- Compressor Wheel Inducer: 62mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 65
- Compressor Housing A/R: 0.72
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
- Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed fitting with .035" restrictor: ATP-OIL-021
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- Oil drain fasteners: Product Code: MIA-FST-034
- Boost Pressure Port Fitting: ATP-FTG-198
NOTE: Alternate coolant and oil fittings and flanges are available
Product show
Packages
plastic paper, shock bubble, neutral carton,pallet or as your requirements
