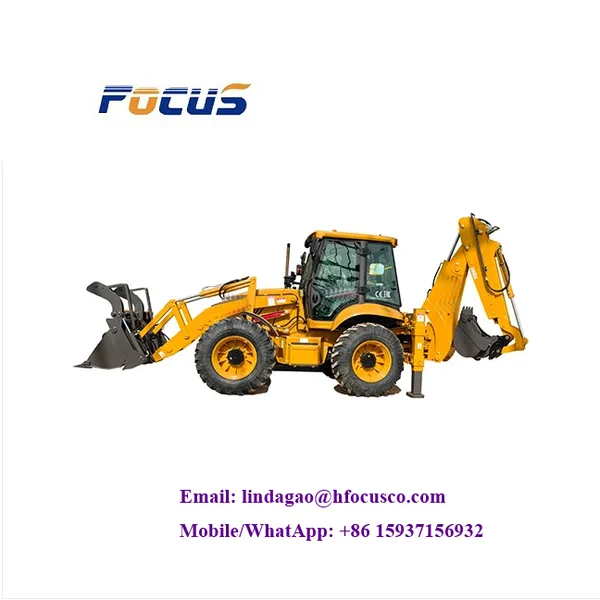

Help CenterBackhoe Loader - Construction Equipment,New Backhoe Loader,China Price 80~100 HP Horse Cab Four-wheel Backhoe Loader for Sale
Related Products
-
Factory Direct Electric Sale 400kg 800kg 1ton 2ton Small 4X4 Wheel Front End Loader Backhoe Price Mini Wheel Loaders for SaleUS$ 6000 - 49800MOQ: 1 Unit -
Factory Direct Supply Genie 349kg Work Electric Mobile Aerial Work Platform Table Trucks Scissor Lift Sky LiftsUS$ 6000 - 99999MOQ: 1 Unit
-
Outdoor Vertical Aerial Electric Scissor Roof Picking 8m 10m 12m Self Propelled Electric Self-Propelled Scissor LiftUS$ 10000 - 54000MOQ: 1 Unit
-
Factory Direct Supply 6-18M 0.1T-10T Rough Terrain Electric Scissor Lifts Self Moving Aerial Work Platform Mobile Hydraulic LiftUS$ 6000 - 19800MOQ: 1 Unit
-
Top Selling Electric Self-propelled Crawler Scissor Lift Rough Terrain Personal Tracked Scissor Lift Construction Hoist LifterUS$ 6000 - 49850MOQ: 1 Unit
This loading excavator uses a four-cylinder engine produced by YTO imported from the British Ricardo technology (optional Dongfeng Cummins engine), and adopts a highly reliable hydraulic torque converter and transmission.
Product Advantage
The integral frame, and the whole machine has good stability and is more suitable forexcavation work.
The excavating working device is side shift type, high strength and good structural stability:the loading end working device adopts eight-bar linkage mechanism.Complete machine operating weight: 8200KG
Rated bucket capacity: 1.0m³
Loading and lifting capacity: 2500KG
product details
Use inner-tube low-pressure bias tires
durable
High cost performance
High securityHumanized design of rotating vibration absorber seat, fully steel-molded glass cab, wider vision, more comfortable drivingHumanized design of rotating vibration absorber seat, fully steel-molded glass cab, wider vision, more comfortable driving.
All excavation and loading functions are pilot-controlled, lightweight and flexible, with high operating efficiency.
The excavator and loader are combined into one, making one machine multi-purpose. Fully equipped with all the functions of small excavators and loaders, it is more suitable for working in narrow spaces, is convenient and flexible, and increases work efficiency by more than 30%.
Highly reliable hydraulic torque converters and gearboxes are used to provide super power, and the special bridge for heavy-duty engineering runs smoothly and has high reliability. A variety of attachment devices are optional to complete a variety of construction operations. It is used in municipal administration, construction, water conservancy, highways, tap water, power supply, gardening and other departments, and can be used in agricultural construction, pipe laying, cable laying, landscaping and other operations. So its sales are very good. Attachments Machine DimensionProduct parameters
| Overall Operating Weight | 8200KG | Final Reducer | Single Stage Final Reducer |
| Transport Dimension | Rated Loader of Axle | 8/18.5t | |
| ××mm L*W*H | 5920×2250×3770 | Transmission System | |
| Wheel base | 2200mm | Torque Converter | |
| Min. Ground Clearance | 300mm | Model | YJ280 |
| Bucket Capacity | 1.0m3 | Type | ,Single-stage Three Elements |
| Breakout Force | 38KN | Max. Efficiency | 84.40% |
| Loading Lifting Capacity | 2500KG | Inlet Pressure | 0.5Mpa |
| Bucket Dumping Height | 2742mm | Outlet Pressure | 1.1Mpa-1.3 Mpa |
| Bucket Dumping Distance | 925mm | Cooling Method | Oil-cooling Pressure Circulation |
| Digging Depth | 52mm | Gearbox | |
| Backhoe Capacity | 0.3 m3 | Type | Fixed Shaft Power Transmission |
| Max. Digging Depth | 4082/4500mm | Oil Pressure of Clutch | 1373Kpa-1569 Kpa |
| Swing Angle of Excavator Grab | 190o | Gears | Two Gears Ahead, Two Gears Astern |
| Max. Pulling Force | 39KN | Max.Speed | 28Km/h |
| Engine | Tyre | ||
| Model | YC4A105Z-T20 | Model | 14-17.5/19.5L-24 |
| Type | In Line Direct injection Four-Stroke and Injection Combustion Chamber | Pressure of Front wheel | 0.55Mpa |
| Cylinder-Inside Diameter*Stroke | 4-102×120 | Pressure of Back Wheel | 0.223Mpa |
| Rated Power | 75KW | Brake System | |
| Rated Speed | 2200r/min | Service Brake | Air Over Oil Caliper Brake |
| Min. Fuel Consumption | ≤242g/km.h | External Type | |
| Max.Torque | ≥410N.M | Self-regulation | |
| Displacement | 4.4L | Self-balance | |
| Steering System | Emergency Brake | Operation Power Implementing brake | |
| Model of Steering Device | BZZ5-250 | Manual Operation Power Terminating Brake | |
| Steering Angle | ±36 o | Hydraulic System | |
| Min. turning radius | 6581mm | Digging Power of Excavator Grab | 46.5KN |
| Pressure of the system | 12Mpa | Digging Power of Dipper | 31KN |
| Axle | Bucket Lifting Time | 6.8S | |
| Manufacturer | Bucket Lowering Time | 3.1S | |
| Feicheng Axle Factory | |||
| Main Transmission Type | Double Reduction | Bucket Discharge Time | 2.0S |
| The parameters are subject to change without notice | |||
