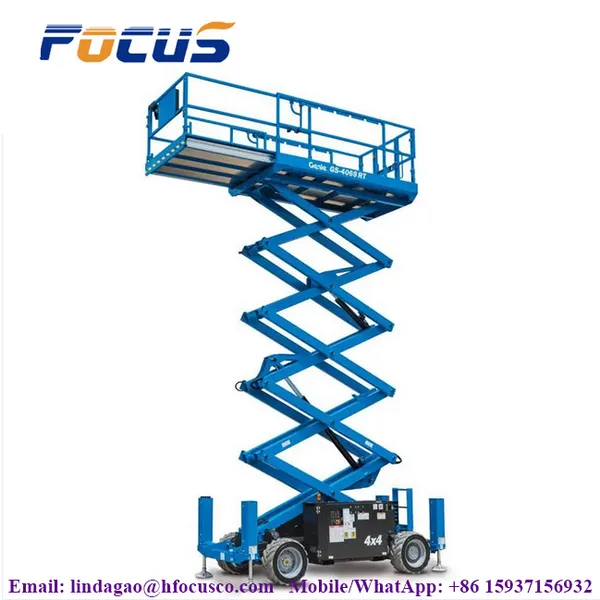

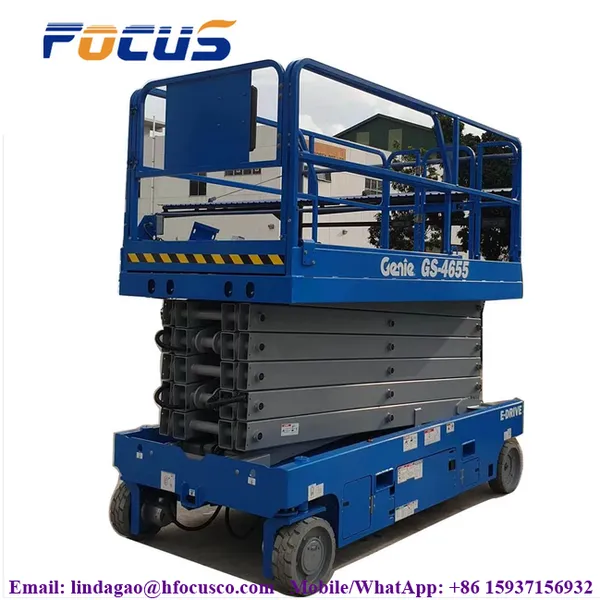

Platform Load Capacity of 350 kg Second-hand/New Genie Self-propelled Scissor Lift GS4047
US$ 6000 - 49800
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
GENIE
Place of Origin:
China
Model Number:
FOCUS207
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
20 days
Related Products
-
Bitumen Emulsion Sprayer Asphalt Road Machinery Paver Paving Machine Mini Asphalt Paver Asphalt Tack SprayerUS$ 6000 - 65480MOQ: 1 Unit -
Isuzu Vacuum Suction Truck Operation Manual, Dongfeng 8cbm Sewage Suction Cleaning Truck High-pressure Multi-functional Sanitation VehicleUS$ 1000 - 65200MOQ: 1 Unit
-
Customized DONGFENG 4x2 4x4 8m3 Dust Garbage Road Vacuum Sweeper Truck Dirty-suction Vehicle Road Vacuum Cleaner In StockUS$ 6000 - 99999MOQ: 1 Unit
-
Sales of Used and New Camc Heavy Duty 6X4 10 Wheels Mobile Telescopic Truck Mounted CraneUS$ 3000 - 36500MOQ: 1 Unit
-
2024 New Truck Mounted Crane 10 Ton 16 Ton 25 Ton Mobile Crane Hydraulic Telescopic Boom Crane For Construction MachineryUS$ 3000 - 30000MOQ: 1 Unit
Brand Name
GENIE
Place of Origin
China
Model Number
FOCUS207
Certification
DOT
Warranty
1 year
Weight
3701
Power
electric
Rated Loading Capacity
450kgs
Overall Dimensions
1.5*1.6*1.6
Min. Lifting Height
3m
Max. Lifting Height
15.8m
Table Size
2*2m
Lift Drive / Actuation
Electric Motor
Lift Mechanism
Scissor Lift
Product Description
| Power supply | ||
| Battery | 4 x 12v 150 amp-hr | |
| Charger | 27 amp High Frequency Charger | |
| Basic specifications | ||
| Brake | Multi-Disc Friction (Hydraulic) | |
| Capacity - Hydraulic Tank | 29.90 L / 7.9 gal. | |
| Hydraulic pump | Fixed Displacement Gear | |
| Vehicle weight | 3175.15 kg / 7000 lb | |
| Self-respect | 9.59 Kg/cm2 / 137 psi | |
| Performance parameters | ||
| Travel speed - platform raised | 0.80 km/h / 0.5 mph | |
| Travel speed - platform lowered | 3.38 km/h / 2.1 mph | |
| Drive System | Hydraulic Front Wheel | |
| gradeability | 25% | |
| Rise time | 80 sec. | |
| Lower time | 41 sec. | |
| Platform load | 349.27 kg / 770 lb | |
| Platform load - extension | 113.40 kg / 250 lb | |
| Platform load | 41in x 96in | |
| Turning radius - outside | 2.54 m / 8 ft 4 in. | |
| Dimensional data | ||
| Ground clearance | 0.13 m / 5 in. | |
| Machine height | 2.54 m / 8 ft 4 in. | |
| Machine height - folding rails | 1.91 m / 6 ft 3 in. | |
| Machine length | 2.69 m / 8 ft 10 in. | |
| Machine width | 1.14 m / 3 ft 9 in. | |
| Platform extension length | 0.91 m / 3 ft | |
| Platform height | 11.96 m / 39 ft 3 in. | |
| Platform height - lowered | 1.4 m / 4 ft 7 in. | |
| Platform height | 8.84 m / 29 ft | |
| Platform railing height | 1.12 m / 3 ft 8 in. | |
| Tire size | 16 X 5in | |
| Wheelbase | 2.03 m / 6 ft 8 in. | |
| Reach distance specification | ||
| Platform height | 11.96 m / 39 ft 3 in. | |
| Platform height | 8.84 m / 29 ft | |
| Working height | 13.79 m / 45 ft 3 in. | |
The R series scissor aerial work platform has been completely redesigned from both the chassis and platform.
Including active dent protection system, simple arm design, thick tires and other configurations to ensure its success
A scissor aerial work platform that is more durable, easier to maintain, and more suitable for rental.
