Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > AHKC-K Split Open Loop Hall Effect Current Transmitter AC/DC 0~(400~2000)A Output 5V/4V Power Supply

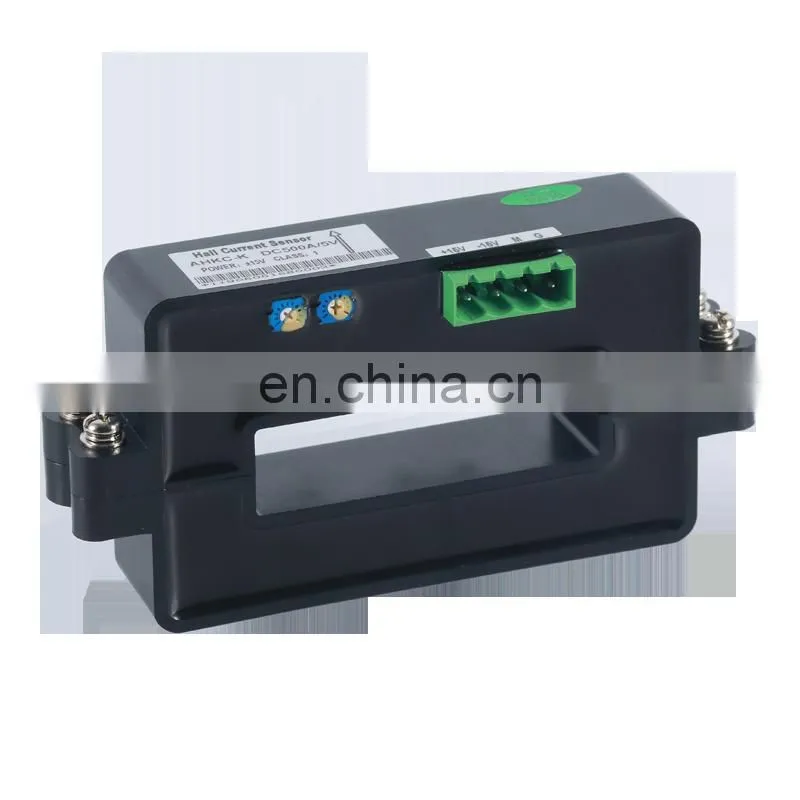

AHKC-K Split Open Loop Hall Effect Current Transmitter AC/DC 0~(400~2000)A Output 5V/4V Power Supply
US$ 25.2 - 25.2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
AHKC-K
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
10 days
Related Products
-
Acrel AHKC-KAA dc Current Sensor Output 4-20mA Input 0~(400-2000)AUS$ 25.2 - 25.2MOQ: 3 Pieces -
Hall Current Sensor/transducer Acrel AHKC-KDA AC Current Sensor AC0-(400-2000)A Open Loop TransmitterUS$ 36.7 - 36.7MOQ: 1 Piece
-
Best Selling Acrel AHKC-H dc Current Transducer Output 5V/4V Input 0~(500-3000)AUS$ 36.4 - 36.4MOQ: 3 Pieces
-
Large Heavy Current DC 0-25000-40000A Input Hall Effect Rectangle Current Transmitter Transducer Sensor AHKC-HBAA Output 4-20mAUS$ 931 - 931MOQ: 1 Piece
-
AHKC-EKA Split Open Loop Hall Current Transformer/hall Effect Current Sensor 0-150A AcrelUS$ 10.5 - 10.5MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
AHKC-K
Usage
Current
Phase
Single
Coil Number
Autotransformer
Coil Structure
Toroidal
Product Description
Split open-loop hall effect current sensor AC input AHKC-EKDA
Hall current sensor open loop hall effect is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.Hall current sensors are widely applicable for acquisition and feeback control of current signals in the current monitoring,inverter,solar power management,current cabinet,DC motor drive and UPS servo control systems.
Explaination of name
Technical Feature
Spec.&size
Parameter

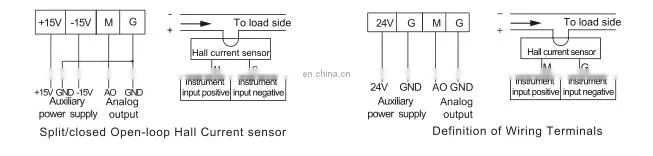

Wiring
Details
Shipping
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2006
Annual Export Value
US$1.5 Million - US$2.5 Million
Product Certifications
ISO9001
