Home > Electrical & Electronics > Sensor > Pressure Sensor > Acrel AHKC-EKB 1 Class Accuracy 0-200-1000A Current Transducer Measurement Hall Sensor

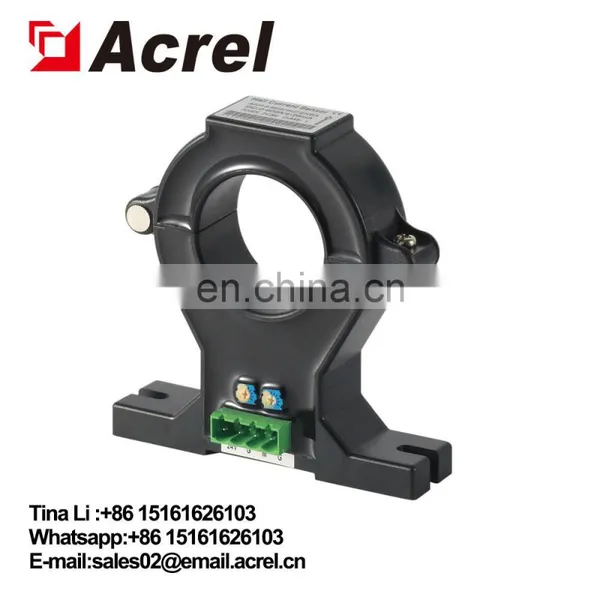

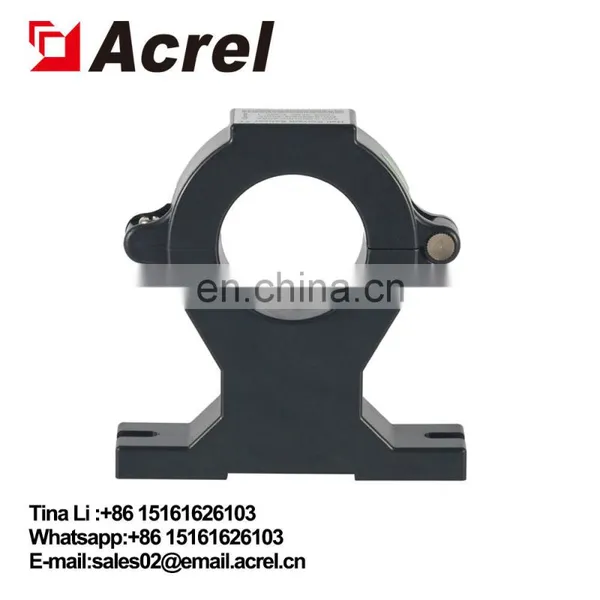

Acrel AHKC-EKB 1 Class Accuracy 0-200-1000A Current Transducer Measurement Hall Sensor
US$ 20.3 - 20.3
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
Jiangsu, China
Model Number:
AHKC-EKB
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel AHKC-EKB Extended Measuring Range 0-200-1000A Current Transducer Measurement Hall SensorUS$ 20.3 - 20.3MOQ: 1 Piece -
Acrel AHKC-EKB Low Power Consumption 0-200-1000A Current Transducer Measurement Hall SensorUS$ 20.3 - 20.3MOQ: 1 Piece
-
Acrel AHKC-EKB Small Package Size 0-200-1000A Current Transducer Measurement Hall SensorUS$ 20.3 - 20.3MOQ: 1 Piece
-
Acrel AHKC-EKB AC,DC,pulse and Other Complex Current Signals Measuring 0-200-1000A Current Transducer Measurement Hall SensorUS$ 20.3 - 20.3MOQ: 1 Piece
-
Acrel AHKC-EKB Uninterruptible Power Supplies 0-200-1000A Current Transducer Measurement Hall SensorUS$ 20.3 - 20.3MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
Jiangsu, China
Model Number
AHKC-EKB
Outline and size
Instrument type |
length |
width |
height |
AKHC-EKA |
60 |
64 |
16 |
Attention:
1. When the hall sensor is used, in order to obtain better dynamic characteristics and sensitivity, attention must be paid to the coupling between the primary side coil and the secondary side coil. It is recommended to use a single wire and the wire completely fills the hall sensor module wire hole;
2. When the hall sensor is used, the best measurement accuracy can be obtained under the rated input current value. When the measured current is far lower than the rated current To obtain the best accuracy, multiple turns can be used for the primary side, i.e. IPNP = rated ampere turns. In addition, the temperature of the primary side feeder shall not exceed 80 ℃;
3. The auxiliary power supply of Hall current sensor shall not exceed ± 20% of the calibrated value when it works normally;
4. Hall current sensor shall not fall from a high place (≥ 1m) during installation and use;
5. It is unable to adjust the zero point and full degree adjustment potentiometer;
6. Auxiliary power supply needs to be configured by itself;
7. The positive and negative poles of the power supply cannot be reversed.
