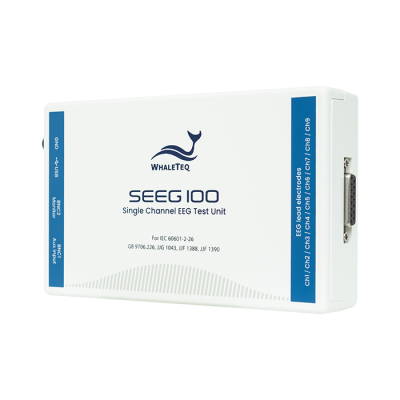

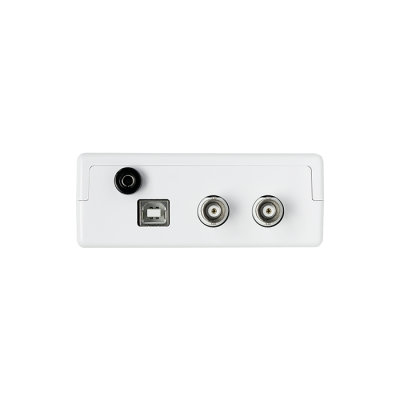

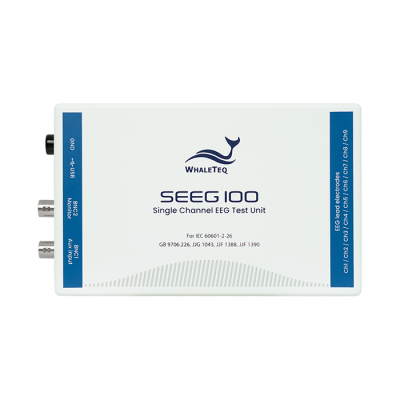

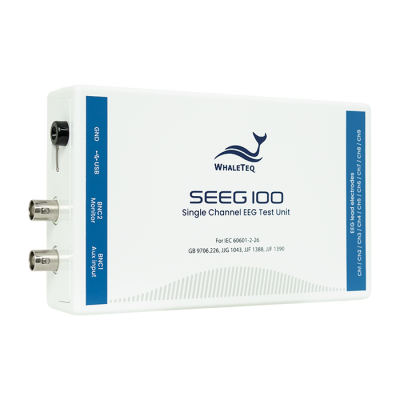

EEG Performance Tester Designed for Regulation Testing

SEEG 100

The EEG performance tester designed for regulation testing.

Standard Coverage: IEC 60601-2-26:2012, GB 9706.226-2021, JJG 1043, JJF 1388, JJF 1390.

Applicable for R&D, compliance and production line testing

OVERVIEW

Designed for the latest EEG standard IEC 60601-2-26:2012 and GB 9706.226-2021

Sophisticated electrical and shielding design enables the test system to output 1μV signal

9 channels with auto-select switches for user to test performance individually

Built-in test circuits as defined in EEG standards with selection of 620kΩ/4.7nF for input impedance test

Able to load and replay files in PhysioNet's EDF format, binary format and text format

IEC 60601-2-26 and GB 9706.226 helper simplifies the medical standard with test sequences, options, parameters and pass criterions

Software Development Kit (SDK) assists user to develop customized or automated test software with less efforts

Note:

SPECIFICATION

Parameters Specifications

Main output voltage accuracy ±1% for amplitudes of 50µVpp or higher

Main output voltage resolution

(DAC resolution) 0.5μV

Frequency / pulse repetition rate accuracy ±0.1%

Pulse duration / timing accuracy ±0.2ms

Resistor tolerance ±0.5%

Capacitor tolerance ±5%

Precision 1000:1 divider (100KΩ:100Ω) ±0.05%

Sample rate 5kHz ± 0.05% (50ppm)

DC offset

(fixed, noise free, from internal supercapacitor) 300mV ±0.1%

DC offset

(variable, may include up to 50µVpp noise) Setting ±1% or ±3mV

Power supply Typical load<0.25A, up to 0.45A is possible if all relays are turned on

Environment 5 ~ 40°C

50 ~ 80% RH

altitude<2000M

Safety

Signal processing Built-in USB IC protection mechanism to avoid the impact from high voltage and current; as well as special filters to reduce noise from the microprocessor (8MHz) and DC/DC converters (200kHz).
