CDCA Database Comparison Software

CDCA

Database Comparison Software

A quick tool to compare database test result and perfect algorithm.

Standard Coverage: IEC 60601-2-25, YY 0782. Applicable for R&D and compliance testing.

OVERVIEW

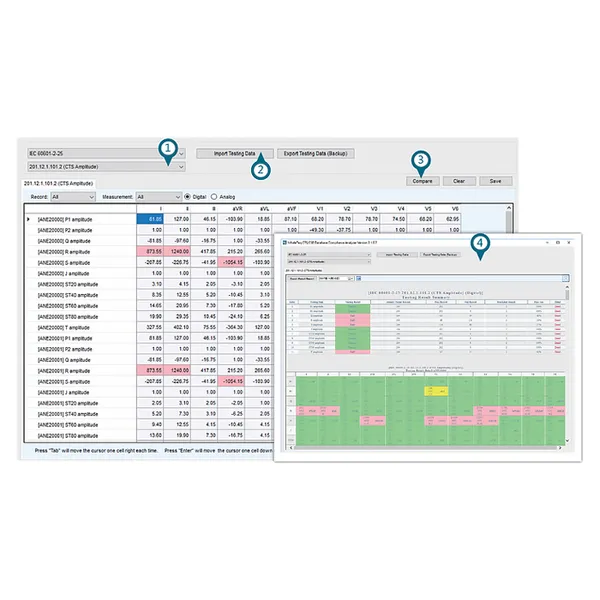

Support comparisons of test values, which are calculated by DUT algorithms from either digital or analog database signal input, to reference values

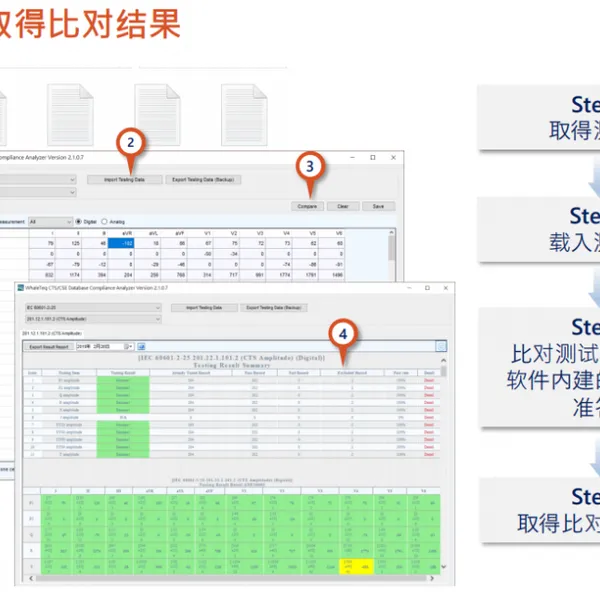

Test data can be imported automatically via the pre-defined file format or input manually

Intuitive software interface allows user to complete the comparison within a few mouse clicks

Comparison result can be exported to a report file

SPECIFICATION

Category Detail

Supported Standards IEC 60601-2-25:2011, YY 0782-2010

Supported Databases CTS, CSE

Supported Test Options –

CTS Amplitude • P1 amplitude

• P2 amplitude

• Q amplitude

• R amplitude

• S amplitude

• J amplitude

• ST20 amplitude

• ST40 amplitude

• ST60 amplitude

• ST80 amplitude

• T amplitude

Supported Test Options –

CTS Interval & Duration Absolute • P Duration

• PR Interval

• QRS Duration

• QT Interval

• Q Duration

• R Duration

• S Duration

Supported Test Options –

CSE Global Intervals • P Duration

• PR Interval

• QRS Duration

• QT Interval

Supported Test Options –

CSE Against NOISE (YY0782) • P Duration

• QRS Duration

• QT Interval

• 50 Hz noise

• 60 Hz noise

• High frequency noise

• Baseline noise

Supported Report • CTS Amplitude Analog Testing Report

• CTS Amplitude Digital Testing Report

• CTS Absolute Interval and Duration Analog Testing Report

• CTS Absolute Interval and Duration Digital Testing Report

• CSE Global Intervals Testing Report

• CSE Against NOISE Analog Testing Report

• CSE Against NOISE Digital Testing Report

Supported Report Export Format RTF file (Compatible with MS Word)
