The EP conveyor belt consisting of 1-6 EP fabric plies, EP rubber conveyor belt has the same merit as Nylon conveyor belt. Its tensile body is made of warp polyester and weft-knitted canvas. Its performance is characterized by low elongation in the warp direction and excellent groove formation in the weft direction. The wet strength does not decrease, no mildew occurs, the initial modulus of the polyester is high, and a lower safety factor can be taken. It is suitable for conveying materials under medium and long-distance and high load and high-speed conditions.

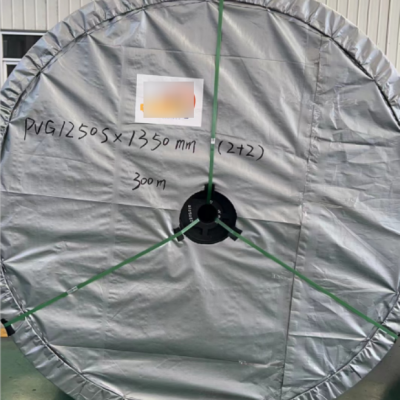

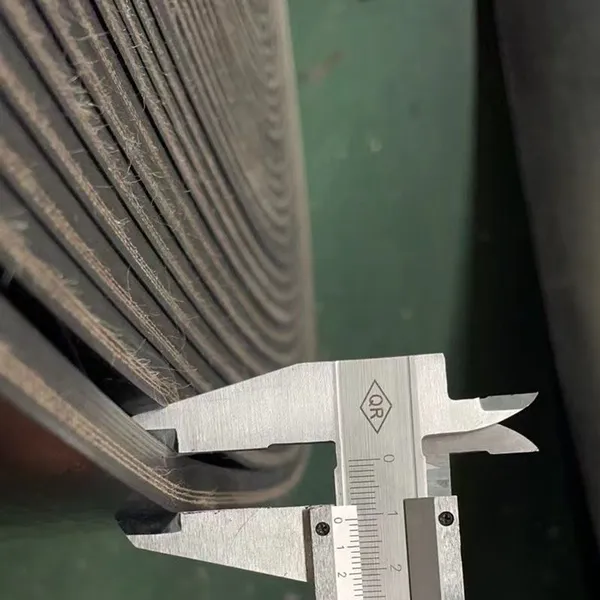

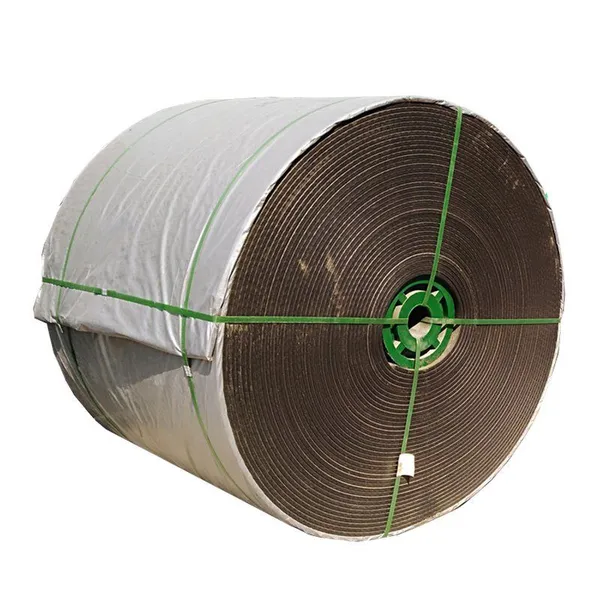

Detailed Photos
Product Parameters
Manufacturing standards
GB/T 7984
DIN 22102
JISK 6322
AS 1332-2000
SANS 1173:2005
BS 490
| DIN-22102 | ||||||
| Grade | TensileStrength(MPA) | Elongation at Breaking |
Abrasion (≤mm3) |
Adhesive strength betwee Plies(N/mm) | Adhesive strength between | |
|
Bottom Cover (0.8-1.9mm) |
Top Cover (≥1.9mm) |
|||||
| W | 18 | 400 | 90 | ≥5 | ≥3.5 | ≥ 4.5 |
| X | 25 | 450 | 120 | |||
| Y | 20 | 400 | 150 | |||
| Z | 15 | 350 | 250 | |||
| DIN-22102 | ||||||
| Grade | TensileStrength(MPA) | Elongation at Breaking |
Abrasion (≤mm3) |
Adhesive strength between Plies(N/mm) | Adhesive strength between | |
| Bottom Cover (0.8-1.9mm) |
Top Cover (≥1.9mm) |
|||||
| A | 18 | 400 | 90 | ≥7 | ≥5 | |
| X | 25 | 450 | 120 | |||
| M | 24 | 450 | 150 | |||
| N | 20 | 400 | 250 | |||
| AS1332-2000 | ||||||
| Grade | TensileStrength(MPA) | Elongation at Breaking |
Abrasion (≤mm3) |
Adhesive srength betweePlies(N/mm) | Adhesive strength between | |
|
Bottom Cover (0.8-1.9mm) |
Top Cover (≥1.9mm) |
|||||
| A | 17 | 400 | 70 | ≥6 | ≥4 | ≥ 4.8 |
| E | 14 | 300 | / | |||
| F | 14 | 300 | / | |||
| M | 24 | 450 | 125 | |||
| N | 17 | 400 | 200 | |||
| S | 14 | 300 | 250 | |||
| S* | 12 | 300 | 250 | |||
| Carcass | fabric type | Strength per ply (N/mm) | Thickness per ply (mm) | Cover Thickness (mm) | No.of Ply | Belt Width (mm) | Length per Roll (m/Roll) | |
| Top Cover | Bottom Cover | |||||||
| NN | NN100 | 100 | 0.70 |
3 3 3.2 4 4.5 4.8 6 6 6.4 7.9 8 9.5 |
1.5 3 1.6 2 4.5 1.6 2 6 3.2 3.2 4 3.2 |
2-10 | 300-12000 | 20-100 |
| NN125 | 125 | 0.70 | ||||||
| NN150 | 150 | 0.75 | ||||||
| NN200 | 200 | 0.90 | ||||||
| NN250 | 250 | 1.15 | ||||||
| NN300 | 300 | 1.25 | ||||||
| NN400 | 400 | 1.50 | ||||||
| EP | EP100 | 100 | 0.75 | 2-8 | ||||
| EP125 | 125 | 0.75 | ||||||
| EP150 | 150 | 0.85 | ||||||
| EP175 | 175 | 0.85 | ||||||
| EP200 | 200 | 1.00 | ||||||
| EP250 | 250 | 1.20 | ||||||
| EP300 | 300 | 1.35 | ||||||
| EP350 | 350 | 1.50 | ||||||
| EP400 | 400 | 1.65 | ||||||
| EP500 | 500 | 2.00 | ||||||
| CC | CC56 | 56 | 1.10 | 3-12 | ||||
CertificationsPackaging & ShippingCompany Profile

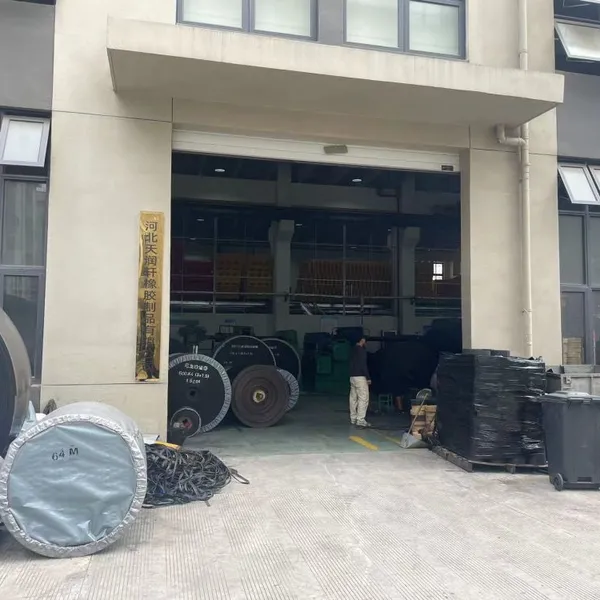

Hebei TRX Rubber Products Co., Ltd is a leading professional manufacturer of conveyor belts & conveyor accessories in China. The main workshops cover 20,000 square meters in the total 60,000 square meters of the plant. The applied technology and equipment in the advanced production lines are state of the art in the industry. The sales headquarters is located in the capital of China, Beijing with branches in domestic and abroad.
It specializes in following three series: 1) Heavy-duty Conveyor Belt, including universal EP/NN and CC Belt, Chevron Belt, Oil Resistant Belt, Abrasion Resistant Belt, Heat Resistant Belt, Fire Resistant Belt, Chemical Resistant Belt, Sidewall Belt, Flat Transmission Belts, 2) Rubber Sheets, including SBR, NBR, NR, CR, EDPM, Rubber With Insertion 3) Conveyor accessories. These three series of products conform to RMA, DIN, ASTM and ISO specifications.
Its products, honored with "The most Advanced level of Products" by the Committee of Science and Technology, have been widely used in mining and quarrying, power stations, steel plants, bulk cargo terminals, cement industry, and other material handling fields. With great success in domestic market, it has been focusing on global market with several hundreds of foreign valued customers in Asia, South America, North America, Africa and Europe.
The company mission:
1.Supply one-stop outstanding service to global customers.
2. Engage in complete solutions with conveyor belting and power transmission belting.
3. Persist in technology improvement and quality control in the whole process of production and service.
