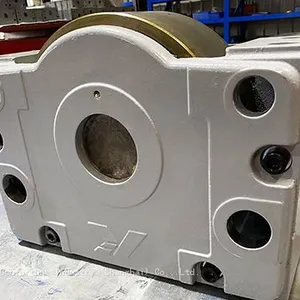

A wheel block system is a rail-mounted crane component that comprises a set of wheels and a frame to support the load during movement. The system can handle loads up to 40 tons, and the wheels can have a diameter of up to 500 mm. Besides crane accessories, the wheels can also be deployed for moving heavy loads.
Wheel blocks are versatile and can be used for shuttles, cranes, and aisles. When coated with PU, they perform exceptionally well in various industries, including AGVs, forklifts, and amusement equipment.
• Spheroidal graphite cast iron housings ensure the robustness
• Gearbox mounting flange & torque arm mounting which reduces the peak load as a result of travel wheel slip torque.
• Several connection dimensions
• Compatible with shaft mounting gear unit

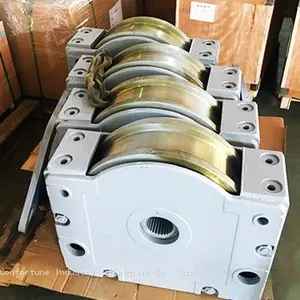

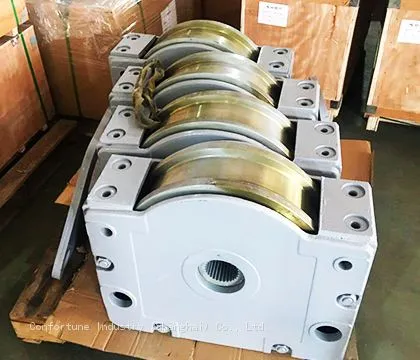

crane wheel block system with two flanges
|
Capacity (ton) |
Weight (kg) |
Diameter (mm) |
A1 |
B1 |
B2 |
C1 |
H1 |
|
DRSA-M 112 |
2.75 |
7.3 |
112 |
190 |
47 |
80 |
96 |
131 |
DRSA-M 125 |
5 |
9.9 |
125 |
220 |
60 |
80 |
98 |
147.5 |
DRSA-M 160 |
7 |
18.3 |
160 |
275 |
65 |
89 |
110 |
187 |
DRSA-M 200 |
10 |
35.7 |
200 |
340 |
65 |
101 |
130 |
238 |
DRSA 250 |
16 |
62 |
250 |
385 |
75 |
110 |
150 |
281 |
DRSA 315 |
22 |
117 |
315 |
470 |
90 |
130 |
180 |
349.5 |
DRSA 400 |
30 |
201 |
400 |
580 |
110 |
155 |
210 |
440 |
DRSA 500 |
40 |
352 |
500 |
700 |
110 |
170 |
240 |
566 |
You can ask for a quotation online for the best product that relates to your application. Our excellent technical sales team will work correctly with you to offer the most reliable product from our extensive range of superior products or a custom made solution to meet your specific needs.
