Factory Wholesale Rechargeable 120mAh 3.7V UFX 032030 302030 Small Lithium Polymer Lipo Battery For Mp3

Factory Wholesale Rechargeable 120mAh 3.7V UFX 032030 302030 Small Lithium Polymer Lipo Battery For Mp3 photo-1
Factory Wholesale Rechargeable 120mAh 3.7V UFX 032030 302030 Small Lithium Polymer Lipo Battery For Mp3 photo-2
Factory Wholesale Rechargeable 120mAh 3.7V UFX 032030 302030 Small Lithium Polymer Lipo Battery For Mp3 photo-3
Factory Wholesale Rechargeable 120mAh 3.7V UFX 032030 302030 Small Lithium Polymer Lipo Battery For Mp3 photo-4
Factory Wholesale Rechargeable 120mAh 3.7V UFX 032030 302030 Small Lithium Polymer Lipo Battery For Mp3 photo-5
US$ 0.7 - 1.1 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Ufine
Place of Origin:
China
Model Number:
302030
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Ufine
Place of Origin China
Model Number 302030
Type Li-polymer
Size Other, 3*20*32mm
Nominal Capacity 120mAh
Nominal Voltage Other, 3.7V
1. Mechanical Characteristics
Cell
302030

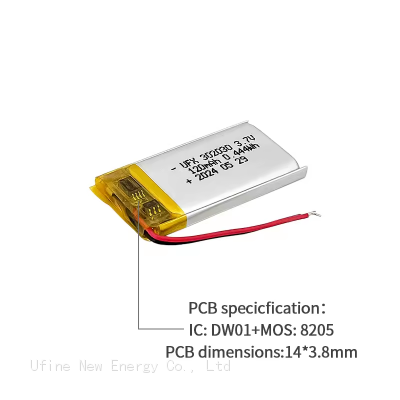

PCM
Yes
NTC
No

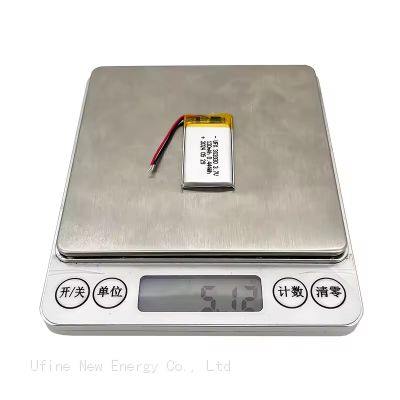

Weight
appr. 5.12g
Configuration
1S1P
Demension
3*20*32mm(MAX)
2. Electrical Specification
Capacity
120mAh
Nominal Voltage
3.7V
Energy
0.444Wh
Internal Impedance
less than 260 mΩ
Max. Charge Voltage
4.2V
Discharge Cut Off
2.75V
Max. Charge Current
120mA
Max. Discharge Current
120mA
Standard Charge Current
60mA
Standard Discharge Current
60mA
Charge Temp. Range
0℃ to 45℃
Discharge Temp. Range
-20℃ to 60℃
Storage Temp. Range
1 year at -20℃ to +30℃
Cycle life
100 cycles ≥92%
3 months at -20℃ to +45℃
300 cycles ≥88%
1 month at -20℃ to +60℃
500 cycles ≥80%
3. Cell protection
Overcharge Detection
4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
Over discharge Detection
2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)
Overcurrent Detection
2.5A to 4.0A (9 to 15msec. delay)
Short protection
Yes
