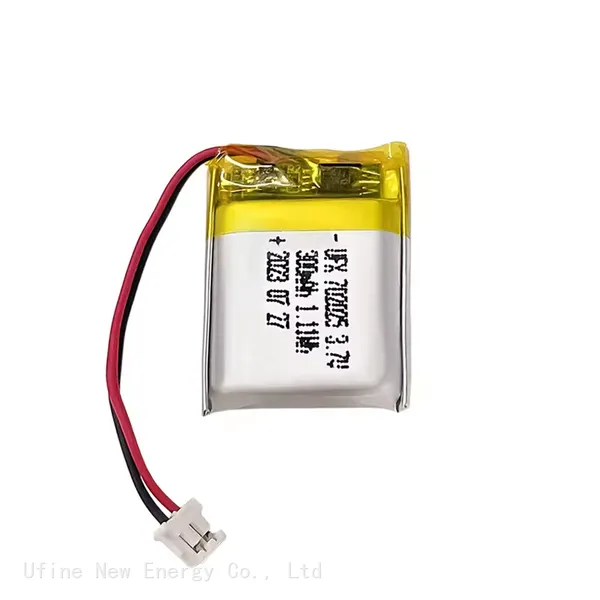

China Best LiPo Battery Supplier Lipo Batteries For RC UFX 702025 300mAh 3.7V Small Rechargeable LiPo Battery
US$ 0.8 - 0.9
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
UFX
Place of Origin:
China
Model Number:
702025
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Custom Super Thin Bluetooth Keyboard Battery UFX 6080130 8000mAh 3.7V Rechargeable Li-polymer BatteryUS$ 9.5 - 10MOQ: 5 Pieces -
OEM ODM Support Consumer Electronics Batteries UFX 951768 1200mAh 3.7V Battery-Powered Beauty Devices From China Cell FactoryUS$ 1.55 - 1.65MOQ: 5 Pieces
-
UFX 902030 500mAh 3.7V Customized Rechargeable Lithium Polymer Battery From Chinese Cell FactoryUS$ 1.5 - 1.8MOQ: 5 Pieces
-
UFX 901428 260mAh 3.7V Lithium-ion Rechargeable Cell Factory Customized for Portable MonitorUS$ 0.8 - 1MOQ: 5 Pieces
-
Professional Customize UFX 803040 1000mAh 3.7V Small Rechargeable Battery for Eye Massager Wearable DigitalsUS$ 1.35 - 1.5MOQ: 5 Pieces
Brand Name
UFX
Place of Origin
China
Model Number
702025
Type
Li-Ion
Size
Other, 7*20*27mm
Nominal Capacity
300mAh
Nominal Voltage
Other, 3.7V

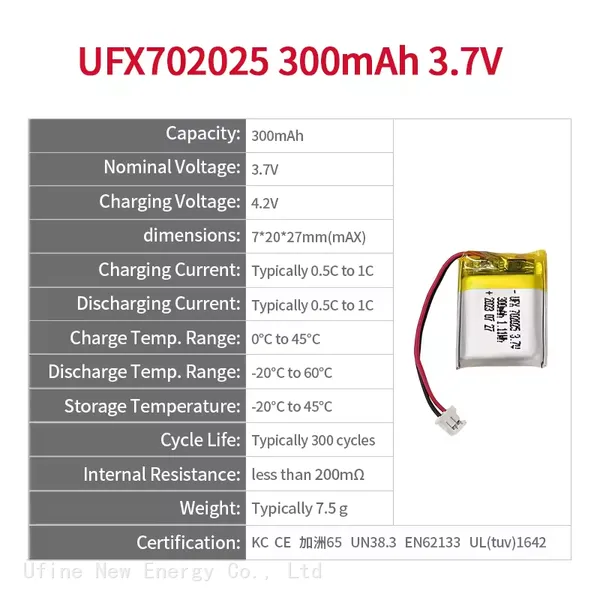

| Specification | |||
| 1. Mechanical Characteristics | |||
| Cell | UFX702025 | PCM | Yes |
| NTC | No | Weight | appr.7.5g |
| Configuration | 1S1P | ||
| 2. Electrical Specification | |||
| Capacity | 300mAh | Nominal Voltage | 3.7V |
| Energy | 1.11Wh | Internal Impedance | less than 200mΩ |
| Max.Charge Voltage | 4.2V | Discharge Cut Off: | 2.75V |
| Max.Charge Current | 300mA | Max.Discharge Current: | 300mA |
| Standard Charge Current | 150mA | Standard Discharge Current |
150mA |
| Charge Temp.Range | 10℃ to 45℃ | Discharge Temp.Range | -20℃ to 60℃ |
| Storage Temp.Range | 1 year at -20℃ to +30℃ | Cycle life | 100 cycles ≥92% |
| 3 months at -20℃ to +45℃ | 300 cycles ≥88% | ||
| 1 month at -20℃ to +60℃ | 500 cycles ≥80% | ||

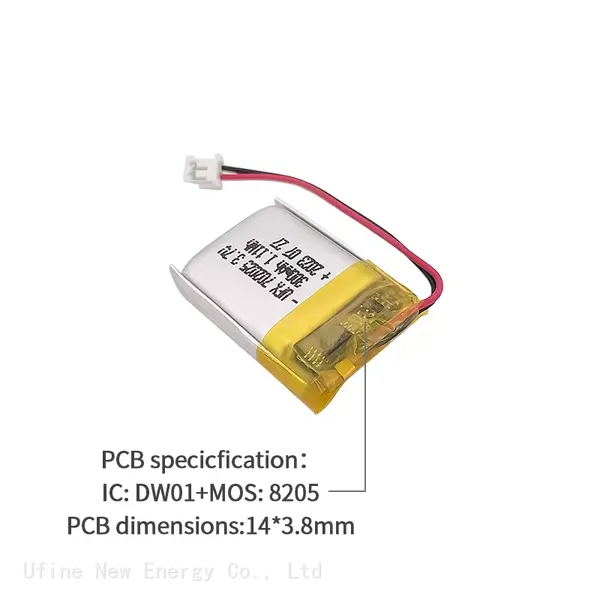

| 3. Cell protection | |||
| Overcharge Detection | 4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV) | Overdischarge Detection |
2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV) |
| Overcurrent Detection | 2.5A to 4.0A(9 to 15msec delay |
Short protection | Yes |
