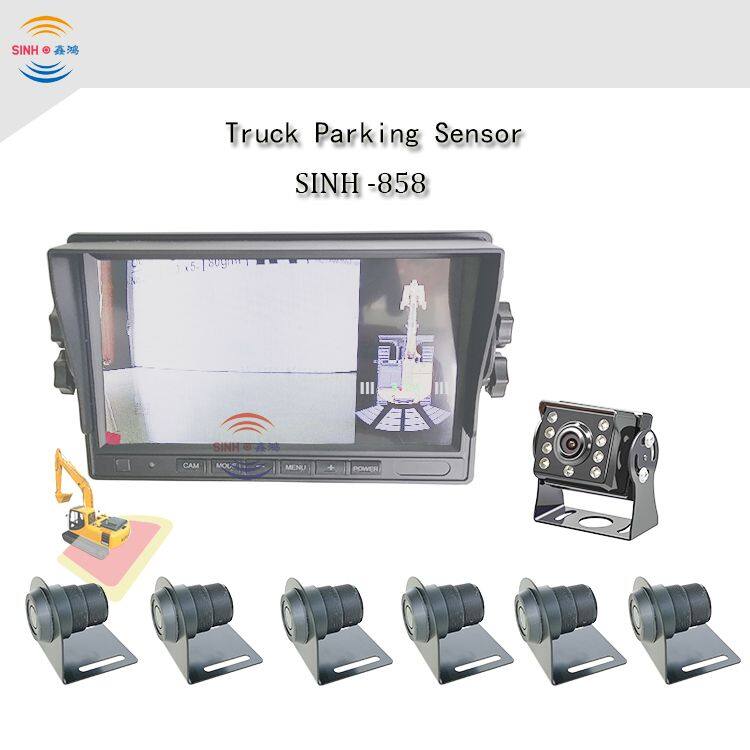

Revolutionize Your Vehicle Safety with Our Smart Visual Reversing Radar System
Designed specifically for trucks, construction vehicles, and other large equipment, our next-generation Visual Reversing Radar System combines cutting-edge digital technology with crystal-clear imaging to transform parking safety. This integrated safety solution eliminates blind spots through intelligent obstacle detection and real-time visual confirmation - giving operators complete confidence in tight spaces.
Key Advantages:
1️⃣ All-in-One Digital Radar System
Experience seamless integration with our host-free design that simultaneously displays radar data and live camera footage on a single screen. The smart overlay interface clearly shows obstacle locations relative to your vehicle's path.
2️⃣ Weather-Ready HD Monitoring
Features a vibrant 7" waterproof display with:
1080p high-definition imaging
IP67-rated weather resistance
Anti-glare sunlight-readable screen
3️⃣ Intelligent Safety Alerts
Three-layer protection system:

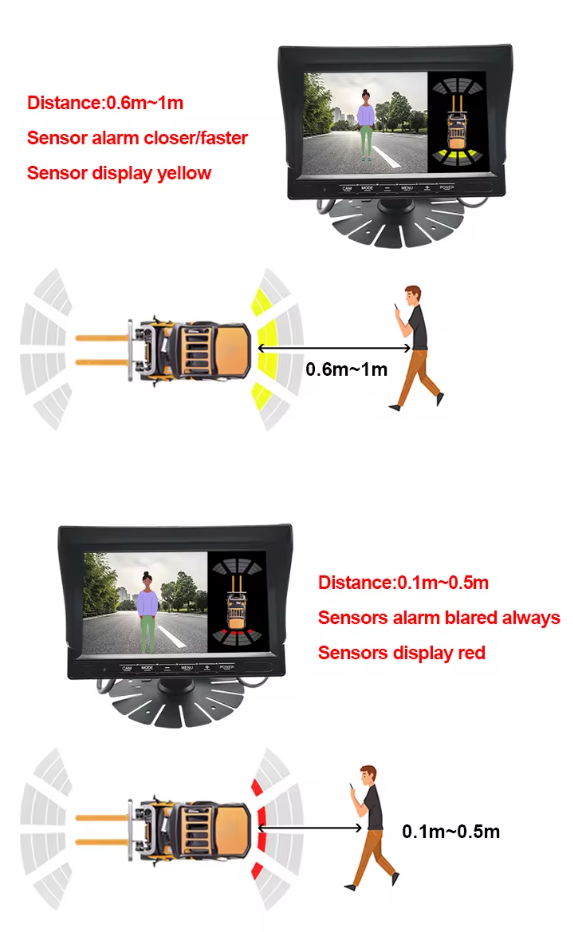

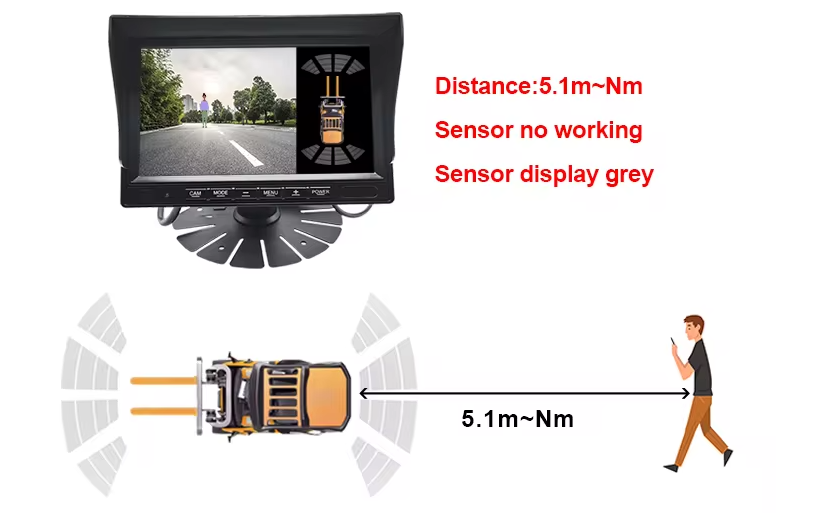

Visual warnings with dynamic distance markers
Color-coded proximity indicators (green/yellow/red)
Adjustable buzzer alerts (0.3-3m range customizable)
4️⃣ Adaptive Parking Modes
Tailor settings for different operational needs:
✓ Construction site mode (short-range precision)
✓ Highway parking mode (extended detection)
✓ Night operation mode (infrared-assisted imaging)
Why Professionals Choose Our System:
✔️ 30% faster parking operations with dual sensor-camera verification
✔️ 72% reduction in backing accidents (industry-proven results)
✔️ Tool-free installation with universal vehicle compatibility
✔️ Military-grade shock resistance and vibration protection
[Upgrade Note] This complete parking safety package replaces traditional separate radar systems, delivering superior situational awareness through patented SensorVision™ technology. Includes automatic startup when shifting to reverse gear and 24/7 standby mode.
Monitor inch |
7 inch TFT-LED |
Resolution |
800*480 |
Operating voltage range |
DC 12V-32V |
Brightness: |
400cd/m² |
Input Video |
PAL/NTSC |
Contrast |
400/1 |
AV input |
Standard 2 way input, up to 3way |
Range of working temperature |
-20ºC ~ +70ºC |
Detection Range |
Freely set the parking mode within 0.3-1 meters (optional) |
Voice reminder |
BIBI sound alarm prompt(Chinese and English) |
Operating temperature |
-20ºC~+70ºC |
Storage temperature |
-25ºC~+75ºC |
Features |
Waterproof, dustproof, shockproof, corrosion proof, high flame retardant |
Shell size |
65 mm×75mm×58mm |
Camera waterproof rating |
IP68 |
Resolution |
720P |
Input Video |
PAL/NTSC |
Voltage |
DC 12V |
view angle |
120° |
Camera port |
Air terminal female |
Minimum illumination |
0.1 Lux |
Power |
≤2W |
Features |
Special special high-sensitivity radar, strong anti-vibration, high accuracy |
Detection angle |
70°-100° |
|
Installation method |
External installation, no need for opening or punching type probe |
Number of radars |
4pcs |
