Probe 1. Product description
The reverse radar is mainly used to solve the problem of the large vehicle body, the intelligent reverse radar defense system.Through the car after the feedback sensor, the position and distance of obstacles on the LED display, so that the driver more intuitive judgment after car status so as to realize safe driving.The equipment has the advantages of quick reaction, high sensitivity and high environmental adaptability.Very suitable for large engineering vehicles.

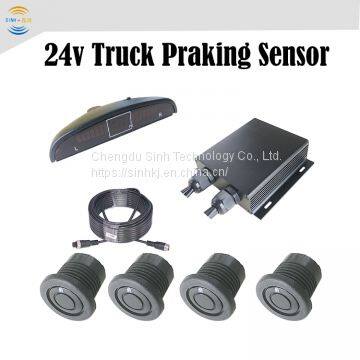

Product accessories
accessories |
quantity | model | remark |

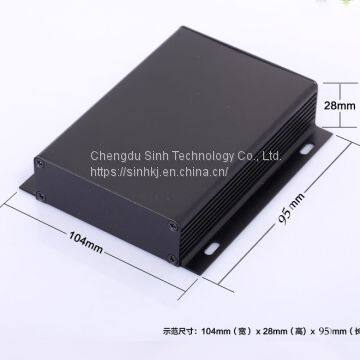

| Host computer | 1 | SINH-628 | |
| LED dispaly | 1 | ||

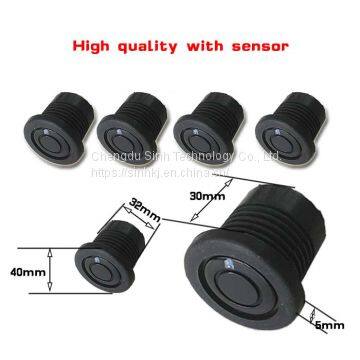

| sensor | 4 | ||
| Product Specification | 1 | SINH astern radar | |
|
1 |
Certificate of approval for a
Technical parameters
Rated working voltage: dc12-24v; Rated power:
Detection distance: 0.4 to 3.0 m; Display resolution: 0.1m
Detection Angle: single Angle 60 ° plus or minus 20 °;
Working temperature: - 30 ° C to + 70 ° C
Product function
The screen displays the rear object of the car and makes clear the distance between the object and the car.
The person or object that monitors the car at all hours;
Inside 3m, the display starts to display the barrier, and there is a beeping sound.
"Bibibi...

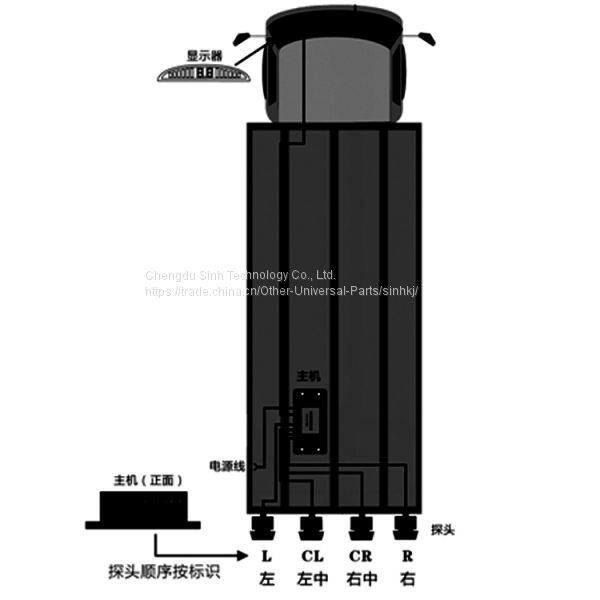

Each probe corresponds to one direction, and the location of the obstacle is clear.
The display system will be able to work when the car is turned on.
Waterproof, shockproof and anti-jamming ability, suitable for most environment work.

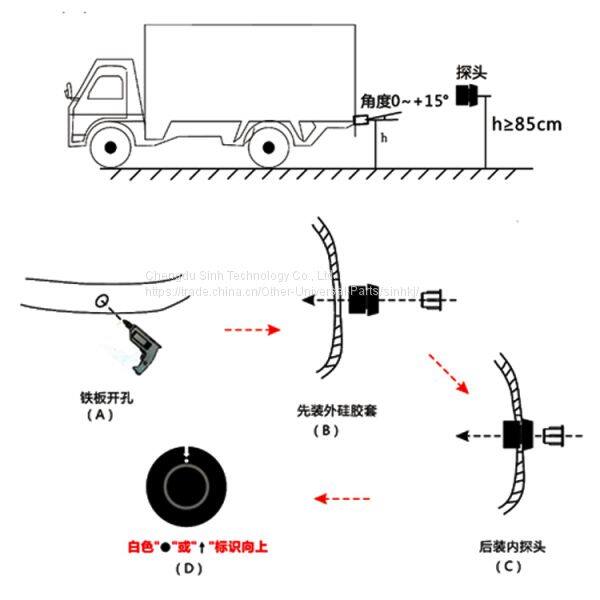

Installation key items:
probe must correspond to the lock;
need extension cords, extension cord twist lock up;

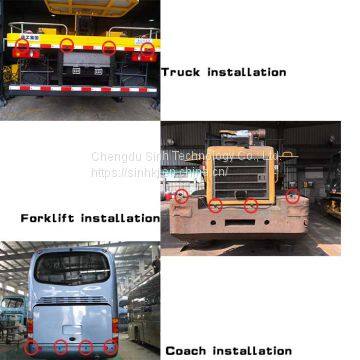

probe installation position from the ground height is 85 cm or more, otherwise easy to false positives;
probe installation there be no protruding (such as special cases, need to do the mounting bracket).
Installation instructions：
