Product Description

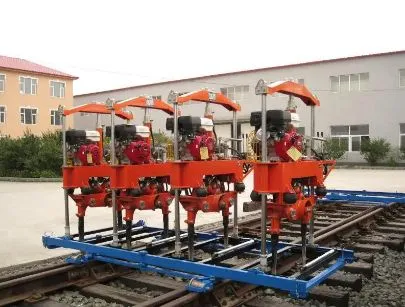

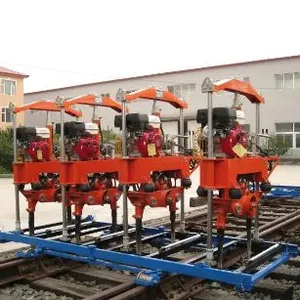

YCD-2 hydraulic tumout tamping machine is a special mainenance mechanical equipment for railway turmouts. it is mainly used for tamping the seeper bllast in the tumout section, and can also take into account the tamping efect of the main track bed ballast.
Specification
Model | YCD-2 |
Type | Rail Tamping Machine |
Material | Stainless Steel |
Dimensions (L x W x H) (mm) | 1420*660*1380mm |
Engine | HONDA GX390 petrol engine |
Power | 6.6 kW |
Vibrating frequency | 60~70 Hz |
Exciting force | ≥34kN |
Clamping force | ≥9.4 kN |
Insertion force | ≥2.9 kN |
Working pressure | 5.0 MPa |
Tamping insertion depth: | 90~ 120mm under sleepers |
Weight | 337 kg |
