Diameter 200mm ETSR200 Roots Blower

Diameter 200mm ETSR200 Roots Blower thumbnail-1
Diameter 200mm ETSR200 Roots Blower thumbnail-2
Diameter 200mm ETSR200 Roots Blower thumbnail-3
Diameter 200mm ETSR200 Roots Blower thumbnail-4
Diameter 200mm ETSR200 Roots Blower thumbnail-5
Diameter 200mm ETSR200 Roots Blower photo-1
Diameter 200mm ETSR200 Roots Blower photo-2
Diameter 200mm ETSR200 Roots Blower photo-3
Diameter 200mm ETSR200 Roots Blower photo-4
Diameter 200mm ETSR200 Roots Blower photo-5
US$ 2900 - 3100 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ELITE
Place of Origin:
China
Model Number:
ETSR200
Contact Supplier Request Quote Chat Now
ELITE Industrial Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ELITE
Place of Origin China
Model Number ETSR200
Type Roots Blower
Application Industrial Blower
Rated Voltage 380V
Rated Power 37KW
Power Source Electric Blower
Pressure High Pressure

1. Introduction

This type three lobe Roots blower is a self-developed new product on the basis of absorbing international advanced technology, which has low power consumption, low noise, excellent performance and low maintenance costs properties. Advanced CAD design tools, process technology and sophisticated CNC equipments are used in product development. This product is widely applicable for metallurgy, chemical industry, light industry, building materials, mining, textiles, pneumatic conveying, sewage treatment, ceramics and other industrial sectors.

2. Characteristics

(1) Large flow and pressure range, wide application, high quality, low price.

(2) Special complex linear envelope vane wheel is used in this product, which

has good gear engage, less leakage and pressure pulse, low noise and high efficiency.

(3) Special shape is designed in the rotor, enhancing shaft rigidity and improving

the blower’s boost

(4) Synchronous gears are made of high quality alloy steel by precision

machining, which relieve the mechanical driving noise effectively.

(5) The rotating parts are all balancing tested rigorously and the product has

almost no vibrations.

(6) Reasonable structure is designed to cooling the blower, effectively improving

the gear and bearing life.

(7) The blower has compact & simple structure, easily for maintenance and repair.

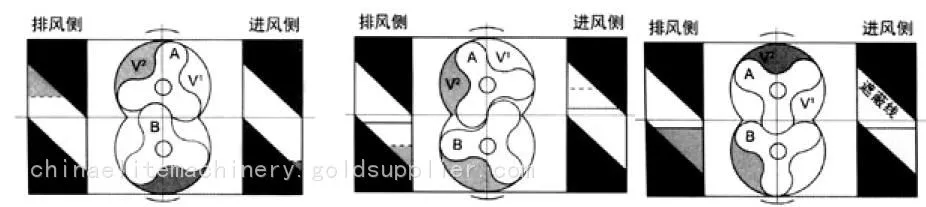

3. Working principle

The two rotors rotate in the opposite directions driven by the synchronous gears and there is appropriate clearance between the two impellers and blower cabinet, which forms air intake cavity. With the rotor rotation, the air is transferred from air intake cavity to air discharge cavity without being compressed, and then exhausts which causes blowing.

Type Ratary Speed
    (r/min)		 Pressure Rise
    (Kpa)		 Capacity
    (m/min)		 Shaft Power
    (Kw)		 Motor Unit Maximn
    Weight(Kg)
Type Power(Kw)
ESR-50 1100-2120 9.8-58.8 0.65-2.58 0.3-3.54
0.75-4 128-158
ESR-65 1100-2130 9.8-58.8 0.94-3.66 0.38-4.46
0.75-5.5 155-185
ESR-80 1140-1900 9.8-58.8 2.34-5.43 1.04-7.42
2.2-11 155-277
ESR-100 1060-1980 9.8-58.8 4.57-9.05 1.35-12.15
3-15 309-377
ESR-125 980-1850 9.8-58.8 5.35-12.4 1.65-5.19
5.5-18.5 408-451
ESR-125C 970-1830 9.8-58.8 7.5-17.57 3.2-18.5
4-22 408-451
ESR-150 810-1730 9.8-58.8 10.37-27.15 3.84-40.82
7.5-45 688-848
ESR-175 970-1520 9.8-58.8 19.65-36.65 7.2-45.95
11-55 980-1080
ESR-200B 740-1450 9.8-58.8 19.65-44.8 10.15-60.44
15-75 1272-1546
ESR-200 810-1480 9.8-58.8 27.65-59.2 8.05-80,12
15-90 1272-1546
ESR-250B 1100-1480 9.8-58.8 54.77-77.55 19.97-90.97
30-110 1490-2454
ESR-250 990-1480 9.8-58.8 61.4-97.52 20.1-117.3
30-132 1490-2454
ESR-300 990-1480 9.8-58.8 87.1-138.1 26.4-167.8
37-185 3326-3446
ESR-350 730-1480 9.8-58.8 78.41-177.31

55-250
ESR-50H 1230-2120 63.7-98 0.45-2.02 2.05-6.12
3-7.5 160--170
ESR-65H 1240-2130 63.7-98 0.78-2.53 2.89-7.55
4-11 198-230
ESR-80H 1140-1900 63.7-98 1.82-4.55 4.09-10.1
5.5-15 316-326
ESR-100H 1060-1980 63.7-98 2.65-8.06 6.36-17.2
7.5-22 398-459
ESR-125H 980-1850 63.7-98 4.64-11.23 8.92-24.2
11-30 544-630
ESR-150H 810-1730 63.7-98 9.53-25.76 17.16-65
18.5-75 752-1020
ESR-200H 810-1480 63.7-98 25.34-56.92 42.34-120
55-132 1426-1934
ESR-250H 990-1480 63.7-98 58-93.7 83.2-205
90-220 2980-3468
ESR300H 990-1480 63.7-98 86.9-134.1 114.7-270
132-280 3476-3998
ERF-245 650-980 9.8-98 47.5-97.4 16-183
18.5-200 3630-3690
ERF-250 650-980 9.8-98 61.6-120.4 19-227
22-250 4450-4500
ERF-290 650-980 9.8-78.4 92.3-128 22-213
30-250 4890-4710
ERF-295 650-980 9.8-78.4 97.3-152.5 23-227
30-250 4890-4880
ERF-297 650-980 9.8-78.4 87.5-167.6 26-249
30-280 5330-5520
ERF-300 650-980 9.8-78.4 101.5-188.7 29-278
37-315 5330-5520
ERF-350 650-980 9.8-78.4 126-224.9 34-249
45-280 5210-6470
ERG-300 590-730 9.8-98 128.3-196 38-362
45-400 9440-10100
ERG-350 590-730 9.8-98 159.3-231.6 43-420
55-450 9700-10750
ERG-400 590-730 9.8-83.3 203.1-290.9 52-449
75-500 10090-11390
ERG-445 590-730 9.8-73.5 229.7-327.8 58-477
75-560 10600-12230
ERG-450 590-730 9.8-73.5 262.4-366.2 64-496
75-560 10600-12230
ERG-500 590-730 9.8-63.7 327.4-452.4 78-529
90-560 12790-14620
ERF-240-V 650-980 -9.8- -49 38.1-78 13-76
18.5-90 3420-3285
ERF-245-V 650-980 -9.8- -49 47.5-97.4 16-95
22-110 3425-3360
ERF-250-V 650-980 -9.8- -49 63-120 19-117
22-132 3910-3830
ERF-290-V 650-980 -9.8- -49 72.6-144 22-136
30-160 4415-4270
ERF-295-V 650-980 -9.8- -49 76.6-152 23-145
30-160 4425-4485
ERF-297-V 650-980 -9.8- -49 84.3-166.8 26-160
30-180 5000-4980
ERF-300-V 650-980 -9.8- -49 97-192 29-178
37-200 5000-4980
ERF-350-V 650-980 -9.8- -49 116-225 34-209
45-250 5400-5700
ERG-300V 590-730 -9.8- -49 133-193 38-184
45-220 7800-9100
ERG-350V 590-730 -9.8- -49 163-231 43-216
55-250 9500-9470
ERG-400V 590-730 -9.8- -49 199-290 52-269
75-315 9900-10130
ERG-445V 590-730 -9.8- -49 224.8-326.9 58-303
75-355 9900-10130
ERG-450V 590-730 -9.8- -49 255-365 64-335
75-400 11230-11300
ERG-500V 590-730 -9.8- -49 314-452 78-412
132-450 13630-13850
ERF-245W 650-980 -13.3- -53.3 53.5-101 21.5-102
30-110 3630-3360
ERF-250W 650-980 -13.3- -53.3 69-127 26.5-127
30-160 3985-4115
ERF-290W 650-980 -13.3- -53.3 82.6-150 30.5-149
37-185 4340-4580
ERF-295W 650-980 -13.3- -53.3 87-158 32-158
37-185 4440-4580
ERF-297W 650-980 -13.3- -53.3 95-174 36-174
45-200 5230-5130
ERF-300W 650-980 -13.3- -53.3 109-195 40-193
55-220 5230-5130
ERF-350W 650-980 -13.3- -53.3 129-230 50-230
75-250 5840-5670
ERG-300W 590-730 -13.3- -53.3 142-197 52-201
75-220 9100-9000
ERF-350W 590-730 -13.3- -53.3 168-234.4 59-235.5
75-280 9500-9600
ERG-400W 590-730 -13.3- -53.3 220-276.6 71-292
90-315 9900-10130
ERG-445W 590-730 -13.3- -53.3 244-294.6 82-331
90-400 11230-11300
ERG450W 590-730 -13.3- -53.3 275-368.5 91-366
110-400 11230-11300
ETRF-250
    (240、250）		 650-980 98-196 64.8-112 135-355
160-400 8700-8600
ETRF-295
    (245、295）		 650-980 98-196 80.8-139 167-439
185-500 9200-9100
ETRF-300
    (245、295）		 650-980 98-176.4 102-174 206-497
250-560 10320-10500
ETRF-350
    (245、295）		 650-980 98-137.2 124-207 241-473
280-560 10700-11110
ETRG-400
    (300、400）		 590-740 98-176.4 205-273 380-773
450-900 21350-24200
ETRG-450
    (350、450）		 590-740 98-176.4 263-428 476-955
560-1000 24200-27600
ETRF-250W
    (240、250）		 650-980 -53.3--80 72-121 75.6-121
90-160 6100-6470
ETRF-295W
    (245/295)		 650-980 -53.3--80 93.8-154 99.5-186
110-220 7000-6400
ETRF-300W
    (2505/300)		 650-980 -53.3--80 116-189 115-220
132-250 7750-7760
EL81WD 580-980 9.8-58.8 54.2-130 18-151
45-185 3595
EL82WDB 580-980 9.8-58.8 72.8-161 22-191
45-220 3860
EL83WDA 580-980 9.8-58.9 101-213 28.5-202
45-220 4300
EL84WDA 580-980 9.8-58.8 129-267 35.4-252
45-280 4720
EL93WDA 580-730 9.8-49 230-329 56.4-311
75-355 7765
EL94WDA 580-730 9.8-49 263-373 64-353
75-400 8130
EL95WDA 490-580 9.8-58.8 308-434 81.4-414
90-450 11500
EL96WDA 580 58.8 381 497
560 11500
E397WN 1000-1650 40 5-9



E408WN 870-1650 40 10-22



E517WN 980-1580 40 20-30



E520WN 930-1550 40 24-45



E607WN 750-1250 40 45-76



E610WN 750-1250 40 75-130
