US$ 148 - 195 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIOT
Place of Origin:
China
Model Number:
S275
Contact Supplier Request Quote Chat Now
Shenzhen Beilai Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIOT
Place of Origin China
Model Number S275

Model List
Model DI AI DO Tem&
Hum 		Storage USB RS485 I/O data points
bool 16Bit 32Bit 64Bit
S270 2 2 2 1 2M 1 x x x x x
S271 4 4 4 1 2M 1 x x x x x
S272 8 6 4 1 32G 1 1 64 64 x x
S274 4 x 4 1 32G 1 1 64 128 64 64
S275 8 6 4 1 32G 1 1 64 128 64 64
Product Description

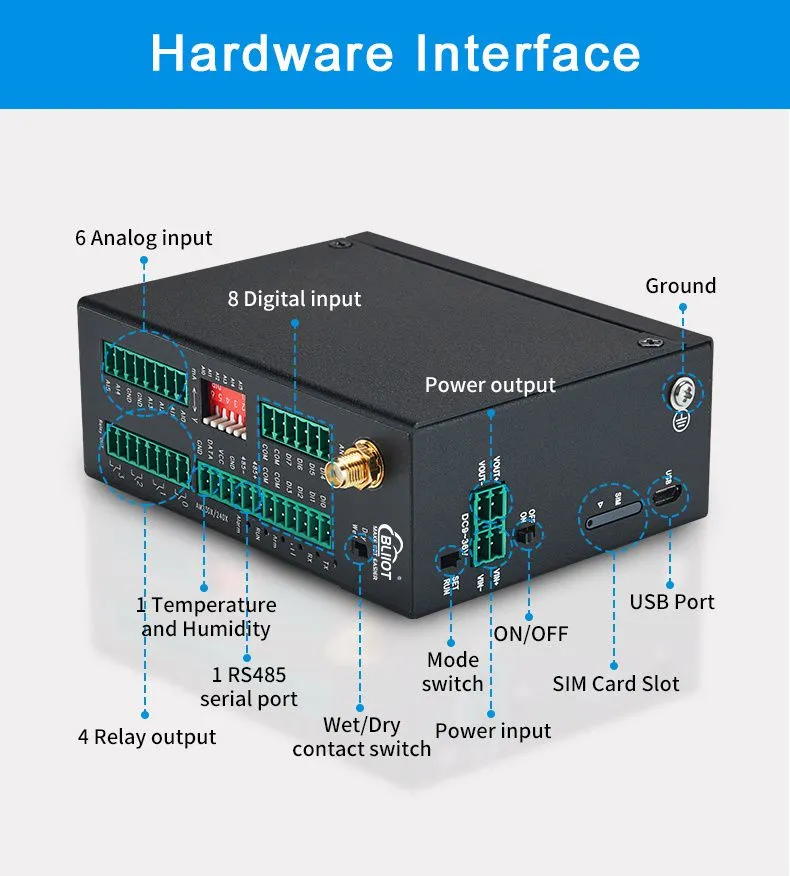

The Industrial 4G Wireless Cellular RTU S275 features 8 digital inputs, 6 analog inputs, 4 relay outputs, 1 temperature and humidity input, and 1 RS485 serial port. The RTU supports Modbus RTU over TCP, Modbus TCP, MQTT protocol.

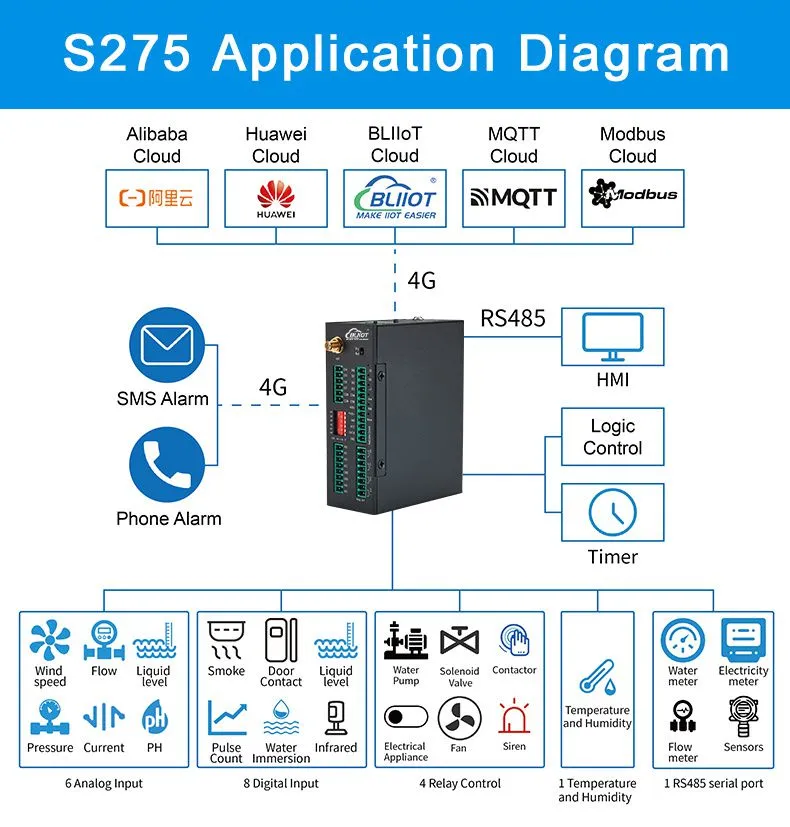

The remote monitoring module is designed for remote measurement and control system and remote data acquisition telemetry systems, such as smoke, liquid, water, flow, flood, electricity, power, energy remote monitoring and remote control.

Inbuilt inter-lock logic programmer and powerful timer program function;

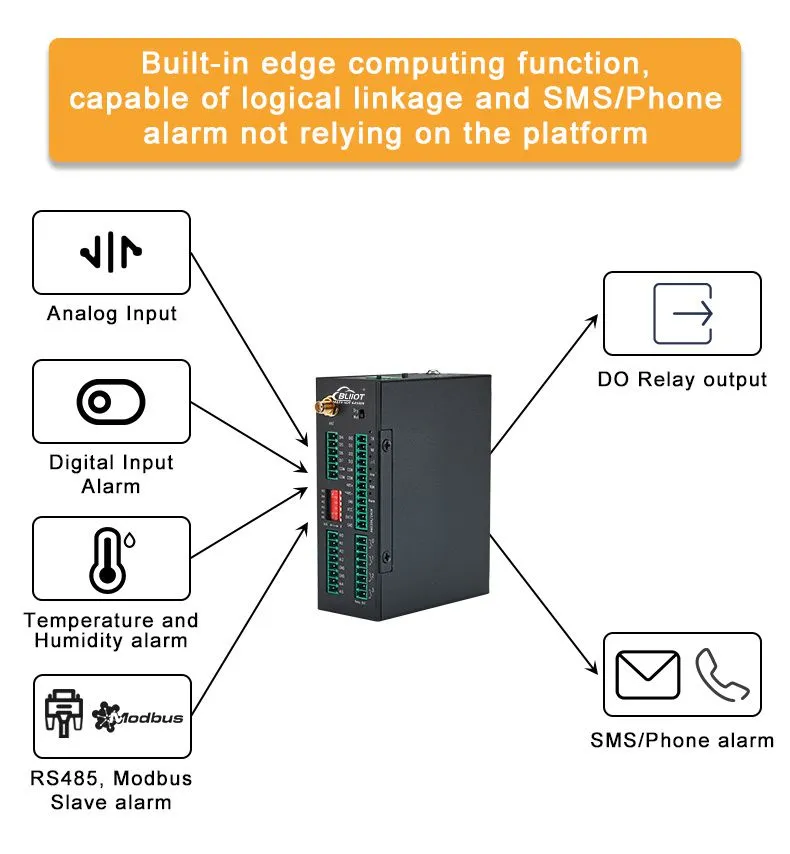

When alarm occurs, the RTU will notify users by SMS, dialing, and also uploading data to cloud platform, monitoring center. The RTU also can be used as a remote switch, remote I/O, remote smart PLC, timer switches.

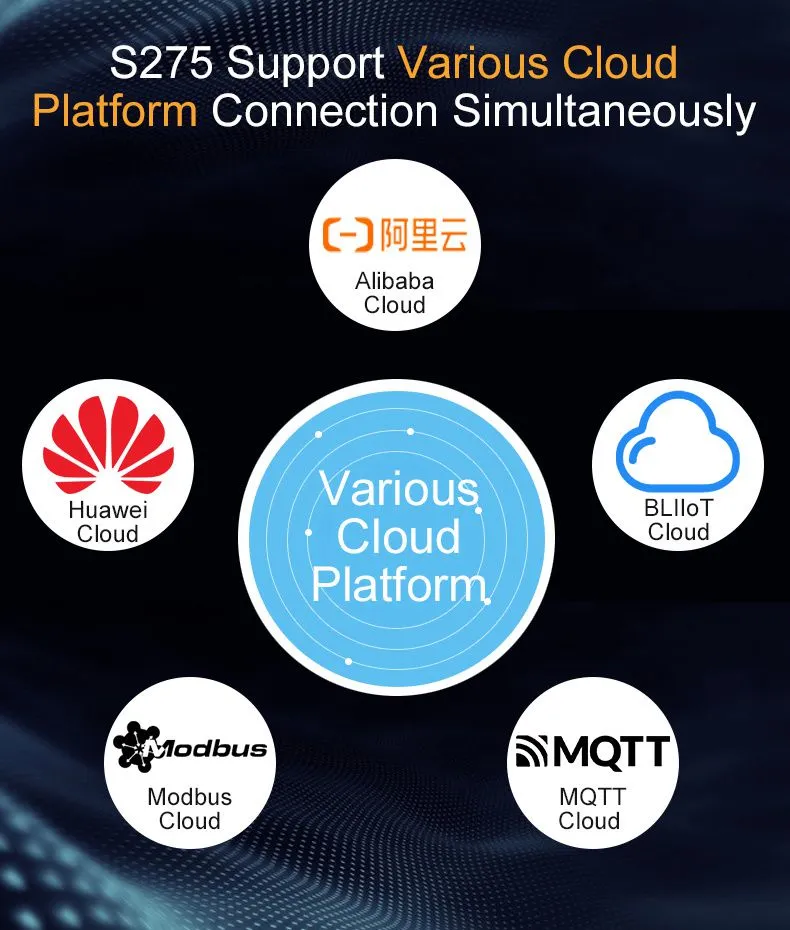

The RTU supports BLIIoT IoT RTU protocol, Modbus RTU over TCP protocol, Modbus TCP protocol, MQTT protocol, which can communicate directly with the server, cloud platform or SCADA.

Detailed Photos


Product Parameters
Category Parameter Description
Power Input Voltage DC 9~36V
Power Consumption Normal: 50mA@12V, Max: 150mA@12V
Output 1 Channel; Voltage: 9~36V DC; Current: 1500mA@12V(Max)
Protection Reverse wiring prevention;
ESD Air: 15KV; Surge: 4KV
Backup Battery 3.7V/850mA (It is optional. Default: Without battery)
USB USB 1xMini USB
Serial Port QTY 1xRS485
Baud Rate 1200bps-115200bps
Data Bit 8
Parity Bit None, Even, Odd
Stop Bit 1, 2
Protocol Modbus RTU(slave), Modbus RTU(master)
Protection ESD Contact: 8KV; Surge: 4KV(8/20us)
Digital Input QTY 8 Channel
Type Support both Wet contact and Dry contact
Dry Contact Close: Short circuit; Open: Open circuits
Wet Contact Close: 10~30V; Open: 0~3V
Others DIN0 as a high-speed pulse counter, sampling frequency: 1MHz; DIN1~3 as low-speed pulse counter, anti-shake time can be set 1~2000ms, default 1ms; DIN1 with arm and disarm function;
Protection 2KVrms
Digital Output QTY 4 Channel
Type Relay output (5A@30VDC, 5A@250VAC)
Others The first DO can set time to control by authorize number; Custom setting close and open times
Protection 2KVrms
Analog Input QTY 6 Channel
Type Differential Input, 4-20mA/0-20mA/0-5V
Resolution 12Bit
Accuracy ±0.1% FSR @ 25°C
±0.3% FSR @ -10 and 60°C
±0.5% FSR @ -40 and 75°C
Sampling Rate 200ms
Input Impedance >1M ohms
Temperature&Humidity (AM2301) Resolution 16bit(0.1%RH, 0.1°C)
Sampling Rate 200ms
Temperature Range -40 to +80°C
Accuracy 0.5°C
Humidity Range 0 to 99RH%
Accuracy 3%RH
4G SIM Drawer type, Support 1.8V/3V SIM/UIM card, Built-in 15KV ESD protection
SIM Slot 1
Software Internet Protocol IPV4, TCP/UDP, Modbus RTU, Modbus TCP, MQTT, BLIIoT IoT RTU
Indicator 4G signal, running, arming and disarming, 485  transmit-receive
Configuration PC software configuration, support WIN XP, WIN 7, WIN 8 and WIN 10
Slave Connection 16 devices, Max 320 I/O data points(Bool, 16bit, 32bit, 64bit)
Transparent Transmission Support
SMS Command Support
Login Package Support custom login package
Heartbeat Package Support custom heartbeat package
Storage Built in 32G SD card, capable of storing up to 100,000 historical records
Safety MTBF ≥100,000 hours
EMC EN 55022: 2006/A1: 2007 (CE &RE) Class B
IEC 61000-4-2 (ESD) Level 4
IEC 61000-4-3 (RS) Level 4
IEC 61000-4-4 (EFT) Level 4
IEC 61000-4-5 (Surge)Level 3
IEC 61000-4-6 (CS)Level 4
IEC 61000-4-8 (M/S) Level 4
Others CE, FCC, RoHS
Environment Working -45~85°C, 5~95% RH
Storage -45~105°C, 5~95% RH
Others Shell Metal
Size 108x82x40mm
Protection IP30
Installation Wall-mounting or DIN Rail mounting.
