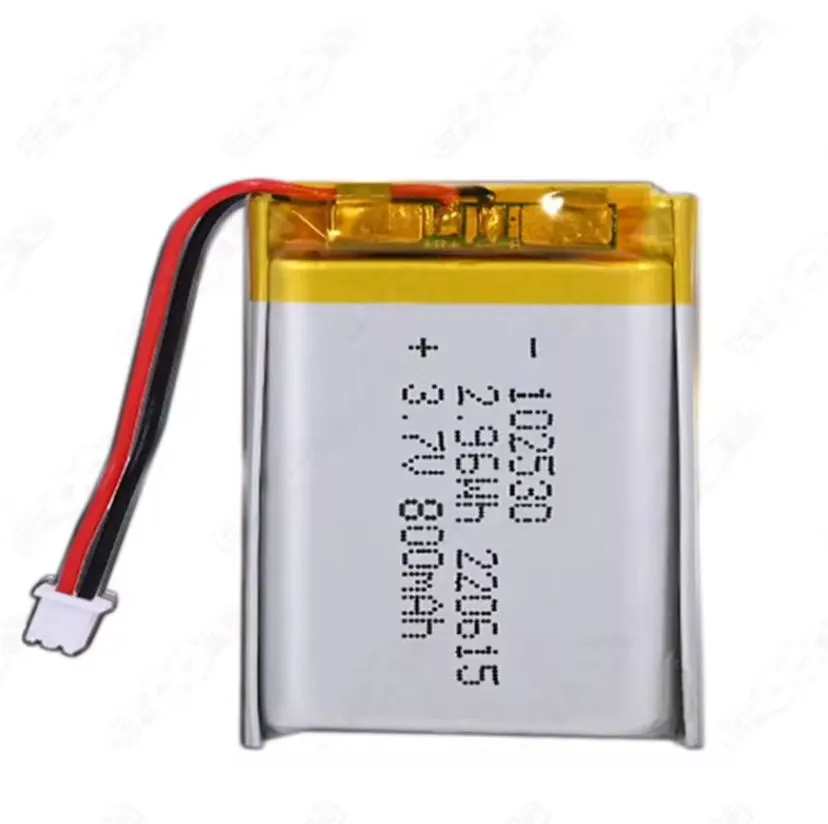

3.7 Lipo 102530 800Mah Lithium Ion Battery Rechargeable 3.7V 800Mah Li Ion Battery
US$ 2 - 4
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
CHINA
Place of Origin:
China
Model Number:
IPR802530C500
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
3 days
Related Products
-
Li Ion Lipo 603048 3.7V 800mAh Rechargeable Lithium Ion Battery for Bluetooth EarphoneUS$ 2 - 4MOQ: 1000 Pieces -
3.7 Lipo 755568 3600Mah Lithium Polymer Battery for Toys Consumer ElectronicsUS$ 2 - 4MOQ: 1000 Pieces
-
3.7v 902040 700mah li Ion Polymer Battery for Bluetooth EarphoneUS$ 2 - 4MOQ: 1000 Pieces
-
3.7V 500mAh Lipo 802530 Lithium Polymer Pouch Battery Cell for Wearable DevicesUS$ 2 - 4MOQ: 500 Pieces
-
UL CE Certificate 3.7V Lipo Lithium Polymer Pouch Battery Cell for Wearable DevicesUS$ 2 - 4MOQ: 500 Pieces
Brand Name
CHINA
Place of Origin
China
Model Number
IPR802530C500
Type
Li-Ion
Size
Other, 6mm*40mm*50mm
Nominal Capacity
1600mAh
Nominal Voltage
Other, 3.7V 3.6V
3.7 Lipo 102530 800Mah Lithium Ion Battery Rechargeable 3.7V 800Mah Lipo Battery :
Product Description
| No. | Item | Specification | Remarks | |
| 1 | Brand Name | OEM | ||
| 2 | Model No. | IPR102530 | ||
| 3 | Normilar Capacity | 800 mAh | 0.2 C5A discharge | |
| 4 | Normilar Voltage | 3.7V | ||
| 5 | Discharge Voltage (Min.) | 2.75V | ||
| 6 | Charging Voltage (Max.) | 4.2V±0.03V | ||
| 7 | Charging Current (Std.) | 0.5 C5A CC/CV | ||
| 8 | Discharging Current (Max. continue) | 1 C5A | ||
| 9 | Discharging Current (Max. temporary) | 2 C5A | ||
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | ||
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | ||
| 12 | Battery cell storage and transportation environment temperature and humidity | Min. 1 months | -20℃ ~ +60℃ 45~85%RH | |
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH | |||
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||

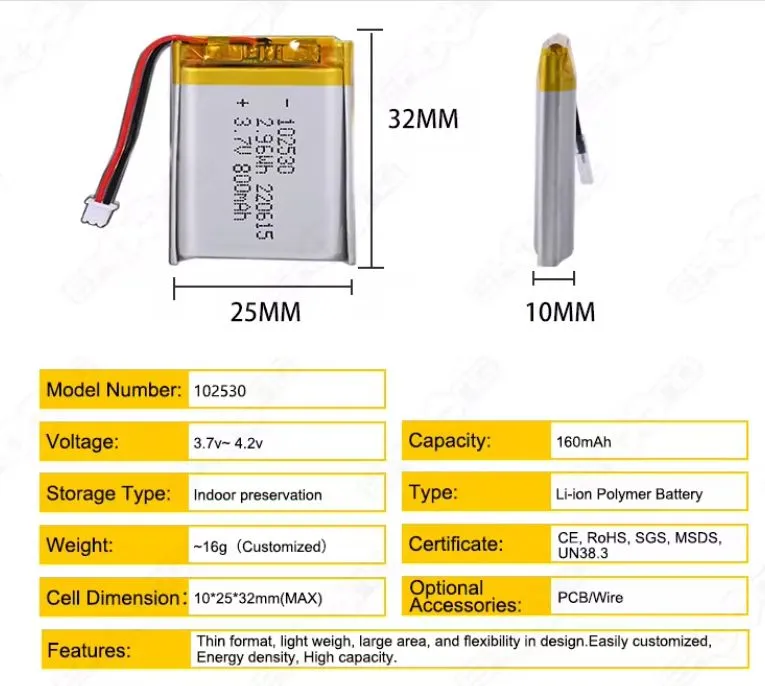

| 13 | Outline Dimension | 10*25*30mm | ||
| 14 | Internal Impedance | |||
| 15 | Weight | |||
| 16 | Cycle Life | 800 times | ||
| 17 | Warranty | 12 months | ||
Typical Advantage of our 3.7v lithium polymer battery:
1. Low self-discharging.
2. Triple protection designs to prevent short-circuit inside the cell.
3. Circle life longer than 500 time @80% capacity retain.
4. Large batch production, offering very similar cells for rating.
1. Low self-discharging.
2. Triple protection designs to prevent short-circuit inside the cell.
3. Circle life longer than 500 time @80% capacity retain.
4. Large batch production, offering very similar cells for rating.
