Products Description

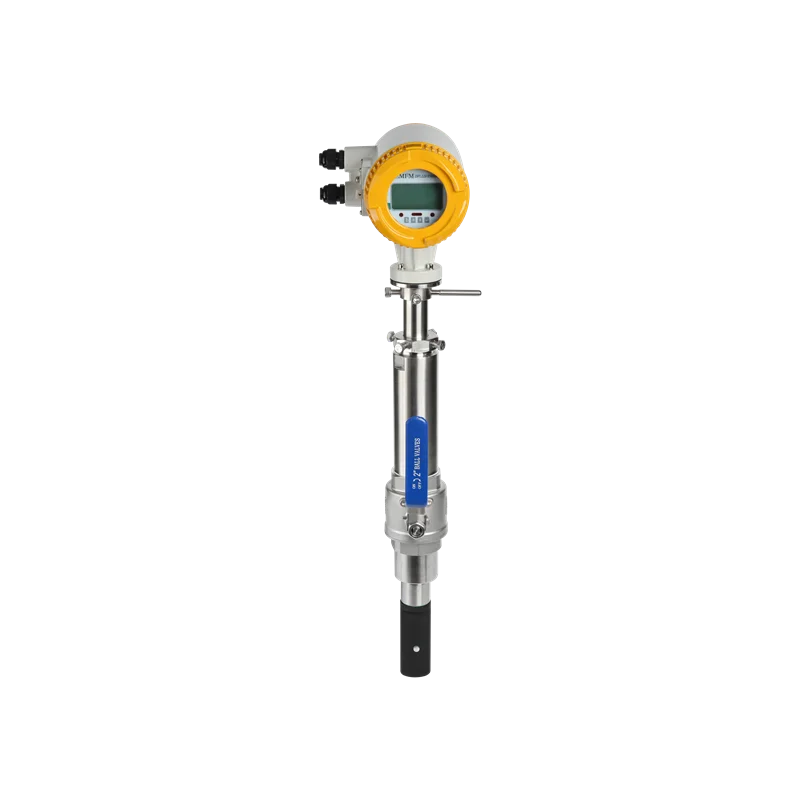

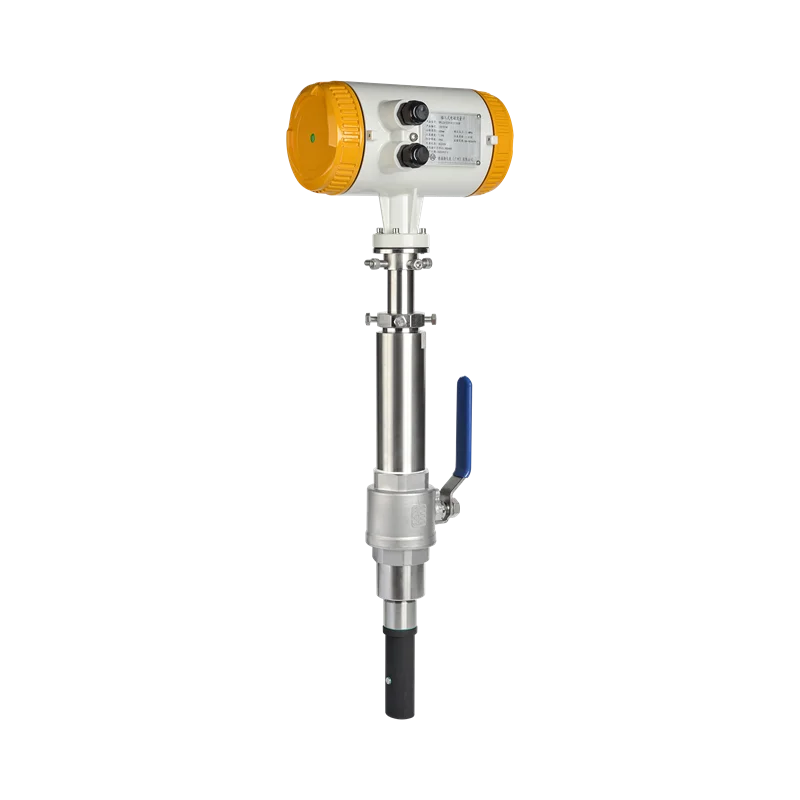

Plug-in electromagnetic flowmeter
The working principle of the DPLLD plug-in electromagnetic flowmeter is based on Faraday's law of electromagnetic induction. In an electromagnetic flowmeter, the conductive medium inside the measuring tube is equivalent to a conductive metal rod in the Faraday experiment, and the two electromagnetic coils at the upper and lower ends generate a constant magnetic field. When a conductive medium flows through, an induced voltage is generated. The two electrodes inside the pipeline measure the induced voltage generated. The measurement pipeline achieves electromagnetic isolation from the fluid and measurement electrodes through non-conductive lining (rubber, Teflon, etc.).
Details Images

Features:


-The structure of the electromagnetic flowmeter sensor is simple, and there are no movable components in the measuring tube, and there are no throttling components that hinder fluid flow;

-Can measure the flow rate of dirty, corrosive, and suspended liquid-solid two-phase flow;

-During the measurement process, it is not affected by the temperature, viscosity, density, or conductivity (within a certain range) of the measured medium;

-The output of an electromagnetic flowmeter is only proportional to the average flow velocity of the measured medium, and is independent of the flow state (laminar or turbulent) under symmetrical distribution;

-Electromagnetic flow meters have no mechanical inertia and are sensitive in response. They can measure instantaneous pulsating flow and can also measure flow in both positive and negative directions;

-The caliber selection range of industrial electromagnetic flow meters is wide.
Product Paramenters
Nominal Diameter
DN100–DN3000mm
Accuracy
± 1.0% of the indicated value
Lining material
Polytetrafluoroethylene; PFA; F46; Neoprene rubber; Polyurethane rubber; High temperature rubber
Electrode material
SUS316; Hastelloy B/C
Electrode form
Standard type
Connection method
plug-in connection
Working conditions
All-In-One
-20℃～+60℃
Splitting type
Neoprene rubber lining; Polyurethane lining
-20℃～+60℃
-20℃~+120℃;-20℃~+180℃
-10℃～+160℃
Nominal pressure
1.6MPa
Ambient temperature
-25℃～+60℃
Ambient humidity
5-100% RH (relative humidity)
Dielectric conductivity
≥20μs/cm
Measuring range
1500:1 flow rate setting
Structural style
One body type; Splitting type
Protection grade
IP65; IP68 optional
Explosion proof sign
ExdIICT 4
Product standards
JB/T9248-2015 Electromagnetic Flowmeter
Company Profile
Doppel Instruments (Guangzhou) Co., Ltd is an innovative technology enterprise that focuses on the research and development, production, sales, and technical services of fluid measurement intelligent instruments.
Since its establishment, the company has actively promoted product research and innovation, with R&D personnel accounting for over 60%. The R&D team comes from well-known enterprises and institutions in Germany, the United States, Canada, and China. The technical backbone has served the Fortune 500 and has over ten years of industry experience.
The company has intelligent and modern production workshops, advanced automation equipment, and high-precision calibration devices. The three major series independently developed and produced by the company, with over ten products, have been widely applied in various industries such as automotive manufacturing, home appliance manufacturing, optoelectronics, food, chemical, thermal power, building materials, metallurgy, textiles, printing and dyeing, etc., meeting the customer needs of various industries.
The company always adheres to the corporate values of "achieving customers, sincerity, and innovation", and wholeheartedly provides users with precise and efficient overall solutions and services, achieving rapid response to customer needs, achieving efficiency improvement, and assisting in intelligent manufacturing.
Certifications
Our Service
Recommend Products
FAQ
1.Q:How about the warranty?
A:DOPPEL provide 1 year warranty for all the goods from us, and you can refund the goods with any quality problem in 30 days.
2.Q:What about the delivery time?
A:Normally in 1 Week.
3.Q:Other suppliers have a better price than yours?
A:"To create the greatest benefit for clients"is our belief, if you have a better price, please let DOPPEL know.We will try the
best to meet your price and support you.
4.Q:What about the shipment?
A:We have DHL forwarder with competitive price,of course,customers can also use their own freight forwarders.
5.Q:How about the terms of payment?
A:Generally through T/T,Western Union also accept.
6.Q:We have not cooperation before, how can we believe you?
A:For our first order,you can can pay after we have prepare the goods.
