Factorycarton Packaging Machinery

「basic introduction 」

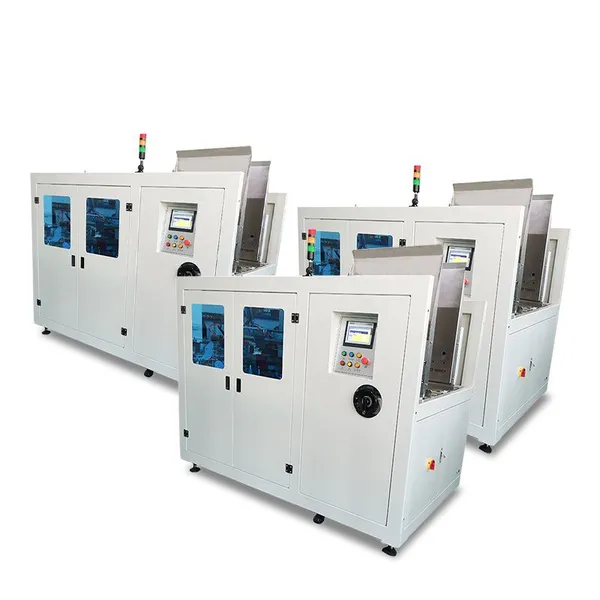

 Open machine set automatic unpacking, automatic cover, automatic sealing at the bottom of the carton, the machine adopts PLC + man-machine interface control, fold bottom does not stay, conveying in folding bottom, bottom cover, and complete suction box, forming, bottom, bottom cover, easy to operate, simple maintenance, stable performance, is the assembly line equipment needed for automated scale production.

「machine features 」

◆ Light volume, machine parts performance precision and durable, the operation process without vibration, stable operation and long life.

◆ The selection of high-performance motor, the power is strong and stable, can be uninterrupted fast and efficient operation, open the box is more stable.

◆ Advanced sealing tank sealing is smooth, the tape is not easy to drop, the sealing process is more smooth, the sealing effect is good.

◆ Rationalized design, synchronous absorption and forming, folding bottom and bottom cover a synchronous forming.

◆ With tape and carton lack of material alarm function, no material automatic reminder, convenient for operators to add materials in time.

「Technical parameters 」

〔〔Automatic unpacking machine——HS-KX4540-A〕〕

Unpacking speed: 8-10 pieces / min

Opening length range: 130-450mm (length and width not exceeding 800)

Opening width range: 80-400mm (length and width not exceeding 800)

Open height range: 90-350mm

Worktop height: 600mm

Power supply voltage: 220V, 60Hz

Power: 240W

Air compressor: 2 / 3L, 5 kg force / square cm 2

Overall dimension: L2075 * W1270 * H (1475-1550) mm

Weight: 450kg

〔〔Automatic unpacking machine——HS-KX4540〕〕

Unpacking speed: 8-12 pieces / min

Opening length range: 250-450mm

Out-box width range: 150-400mm

Open height range: 150-400mm

Countertop height: 600-780mm

Power supply voltage: 220V, 60Hz

Power: 240W

Air compressor: 2 / 3L, 5 kg force / square cm 2

Overall dimension: L2075 * W1270 * H (1575-1650) mm

Weight: 450kg

〔〔Bedroom unpacking machine——HS-KX3620W〕〕

Unpacking speed: 20-25 boxes / min

Carton length range: 190-360mm

Carton width range: 80-200mm

Carton height range: 100-200mm

Power supply: 110 / 220V, 50 / 60Hz

Power: 1KW

Tape size: 36 / 48mm

Carton temporary stock: 600mm

Air consumption: 300 N L/min

Table height: (910 + 30) mm

Machine size: L1680 * W1210 * H1260mm

Machine weight: 700kg

〔〔Bedroom unpacking machine——HS-KX5140W〕〕

Carton length range: 240-510mm

Carton width range: 190-400mm

Carton height range: 120-400mm

Speed: 25-30 cases / min

Voltage: 380V

Power: 746W

Machine size: L2372 * W1210 * H1820mm

Weight: 1,000 kg

Air consumption: 300 N L/min

Temporary carton stock: 80 pcs (1000mm)

〔〔Vertical and high-speed unpacking machine——HS-KX4540-B〕〕

Unpacking speed: 15-16 boxes / min

Opening length range: 250-450mm

Out-box width range: 150-400mm

Open height range: 100-350mm

Worktop height: 600mm

Power supply voltage: 220V, 50Hz

Use of gas source: 6-7 kg force / square cm 2

Overall dimension: L2400 * W2050 * H1450mm

Weight: about 400kg

Note: As the machine is constantly updated, the specific parameters are subject to the physical or contract.
