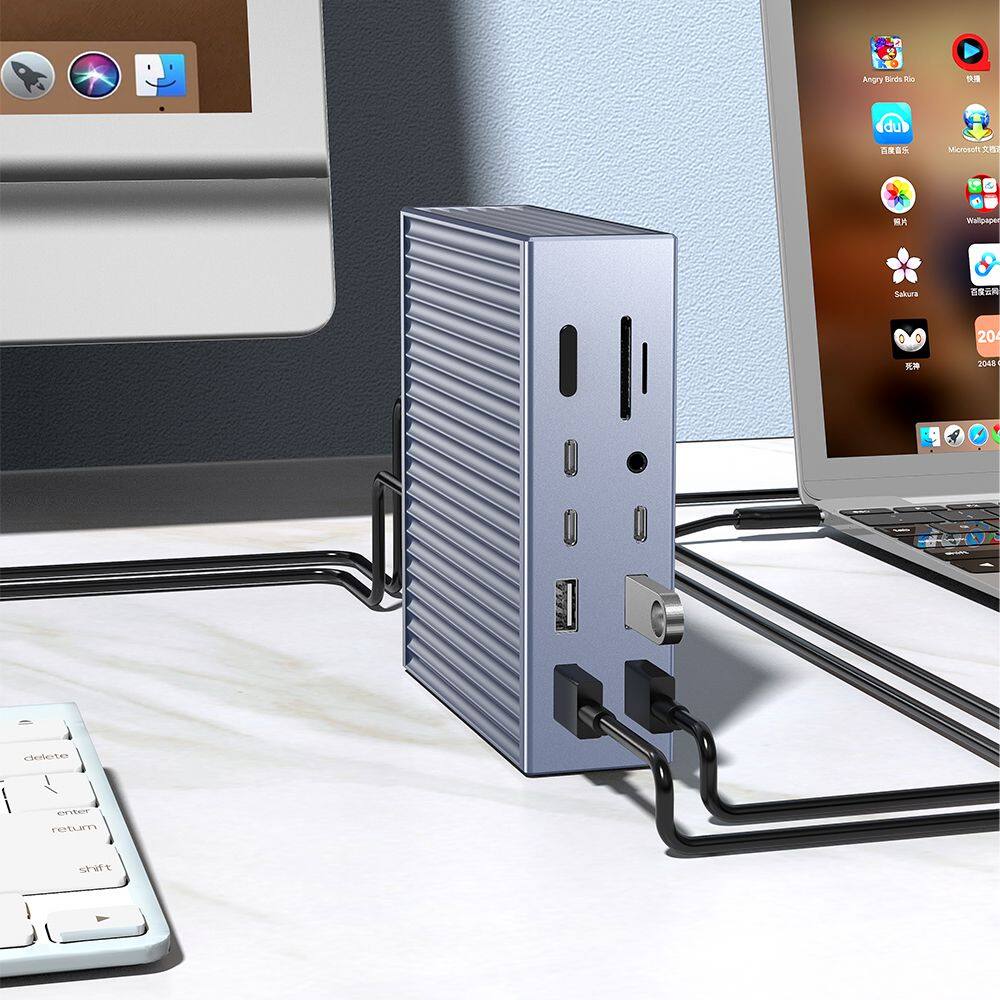

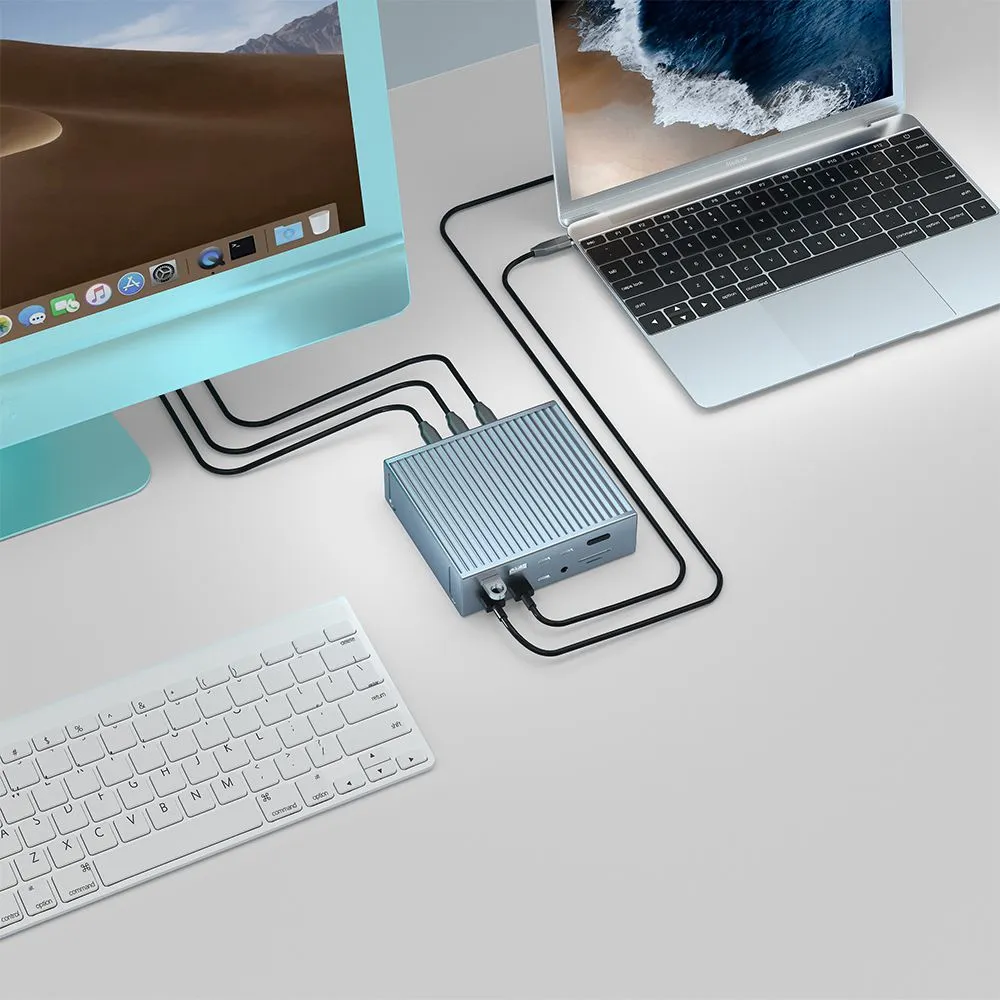

Thunderbolt™ 4 / USB4 Full Docking Station

　　The Thunderbolt™ 4 / USB4 full Dock is designed for extra connectivity demands and supports Thunderbolt™ 4 and USB4 with Intel Thunderbolt™ 4 solution Goshen Ridge. It can support all USB function from traditional USB 2.0 to USB4, VESA Alternate mode (MFDP), Thunderbolt™ 3 and USB4. It also can support dynamic PD up to 90W to charge the laptop.

　　It provides not only Thunderbolt™ 4 / USB4 downstream ports but also comes with Legacy USB-A 3.1 10G, USB-A 2.0 , SD 4.0 card reader, Audio, and Ethernet.

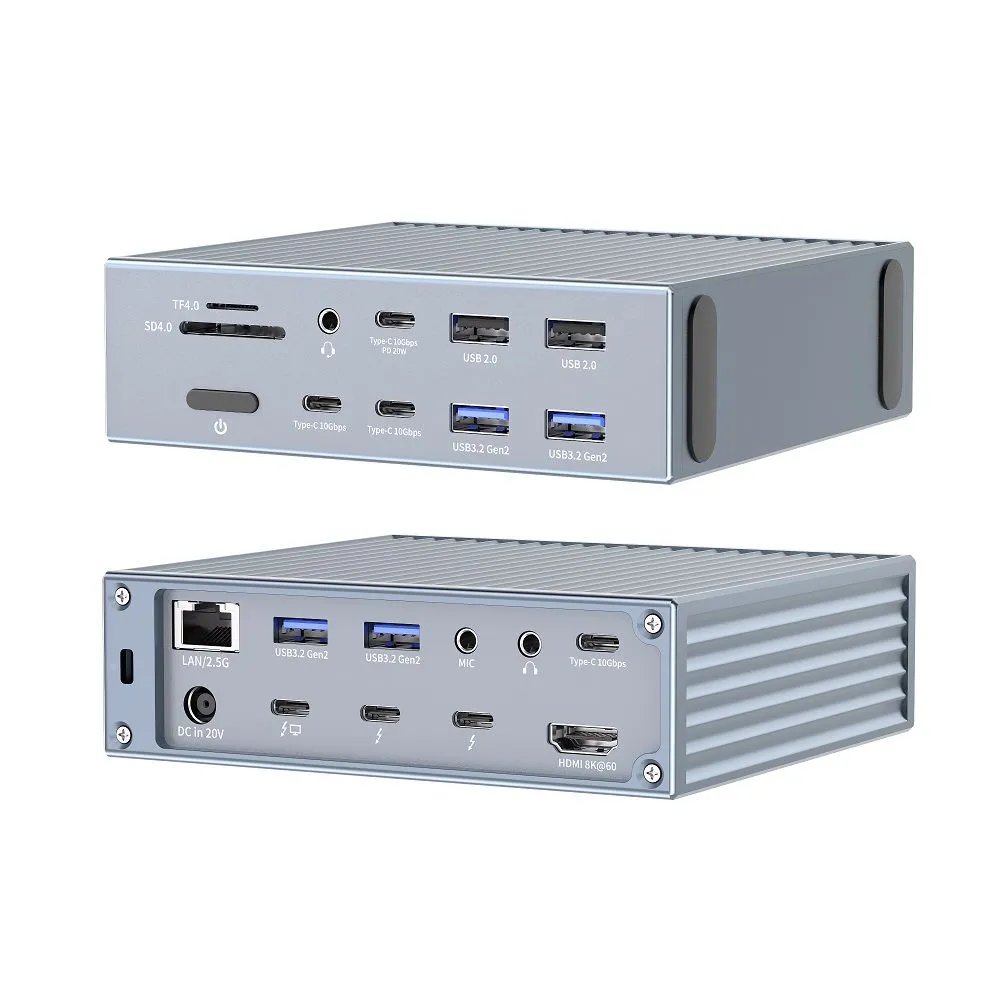

　　Specifications:

　　Transfer Speed: 40Gbps (Compatible with USB4/3.2/3.1/3.0/2.0)

　　1x DC Power in 20V , Device host PD 85W

　　2xType C, TBT/USB4 40gbps interface downward compatibility

　　(Video output up to Single 8K@30Hz or Dual 4K@60Hz or

　　Three 4K@30Hz), power output up to 15W

　　1*HDMI 8K@60Hz video output

　　4* USB A 3.2 Gen2 (Max 10Gbps data transmission)

　　2xUSB A 2.0 (Max 480Mbps data transmission)

　　1xTF/Micro SD 4.0 ( Up to 312Mb/s）

　　1xSD/MMC 4.0 (Up to 312Mb/s）

　　1xMIC (3.5mm  )

　　2xAudio(3.5mm）

　　3* type-C 3.2 Gen2 (Max 10Gbps data transmission)

　　1*type-C 3.2 Gen2 PD20W (Max 10Gbps data transmission)

　　1xRJ45 2.5Gb Ethernet

　　Aluminum housing
