18-in-1 smart USB3.2 Gen2 docking station

　　18-in-1 smart USB3.2 Gen2 docking station, Support 4K HD screen projection, dual DP + dual HDMI + TYPE-C video output, can be 2 screens at the same display, can be the same screen or split screen, the field of view is wider, expand the split screen convenient office, connect to TV projector/monitor and other office meetings easy display; Support PD3.0 fast charging protocol, support RJ45 port Ethernet, support 3.5mm audio interface, support TF/SD dual card slot plug and play, support USB3.2 Gen2 maximum transmission rate of 10Gbps (and backward compatible), all USB interfaces use U disk, mobile hard disk, wireless mouse and other related USB storage devices for data transmission with computers and mobile phones；aluminum alloy + sunscreen plastic shell, surface sunburn treatment, comfortable touch, fast export heat, use is not hot, durable and environmentally friendly, the bottom of the product design anti-slip silicone pad is stable and does not shake, design game handheld bracket, exquisite and beautiful shape, good compatibility, no need to drive。

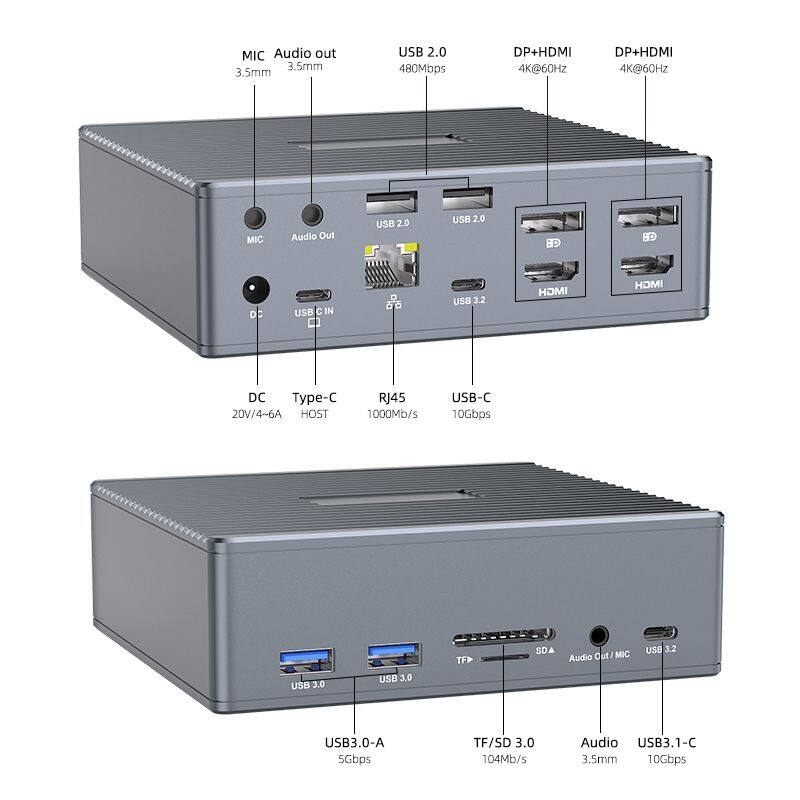

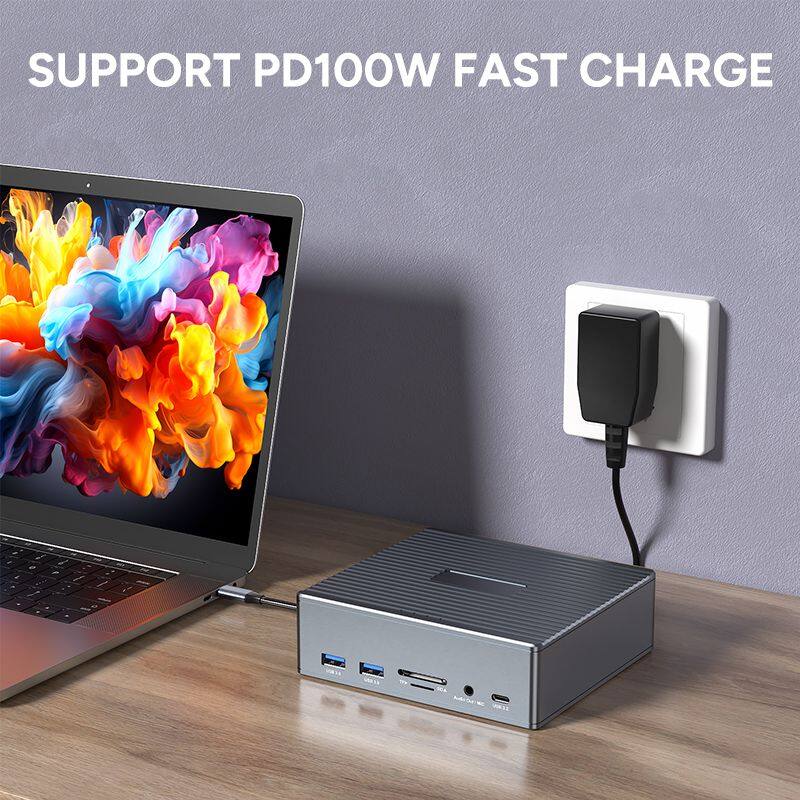

　　1、① 1*TYPE-C upstream port, USB3.2 Gen2 maximum transfer rate of 10Gbps (and backward compatible). Supports DP Alt Mode 1.4. Support PD3.0 protocol, can charge Max 80W to the upstream computer or mobile phone, dynamic withholding；

　　2、② 1*DC input upstream port, power input, support maximum 20V/4~6A (if fully loaded at least 6A);

　　3、⑰ 1* Power LED;

　　4、⑱ 1*Network connection LED;

　　5、⑲ 1*USB2.0 interface connection LED;

　　6、⑳ 1*Video connection LED;

　　7、⑧ 1*HDMI1 port, support video resolution refresh rate: 3840x2160/60Hz backward compatible, support HDCP 1.4/2.2, can be displayed with ⑨ HDMI2 or ⑪ DP2 4K/60Hz dual screen (cannot be displayed at the same time as ⑩ DP1)；

　　8、⑨ 1*HDMI2 port, support video resolution refresh rate: 3840x2160/60Hz backward compatible, support HDCP 1.4/2.2, can be displayed with ⑧ HDMI1 or ⑩ DP1 4K/60Hz dual screen (cannot be displayed at the same time as ⑪ DP2)；

　　9、⑩ 1*DP1 port, support video resolution refresh rate: 3840x2160/60Hz backward compatible, support HDCP 1.4/2.2, can be displayed with ⑨ HDMI2 or ⑪ DP2 4K/60Hz dual screen (cannot ⑧ HDMI1 display at the same time)；

　　10、⑪ 1*DP2 port, support video resolution refresh rate: 3840x2160/60Hz backward compatible, support HDCP 1.4/2.2, can be displayed with ⑧HDMI1 or ⑩DP1 4K/60Hz dual screen (cannot ⑨HDMI2 display at the same time)；

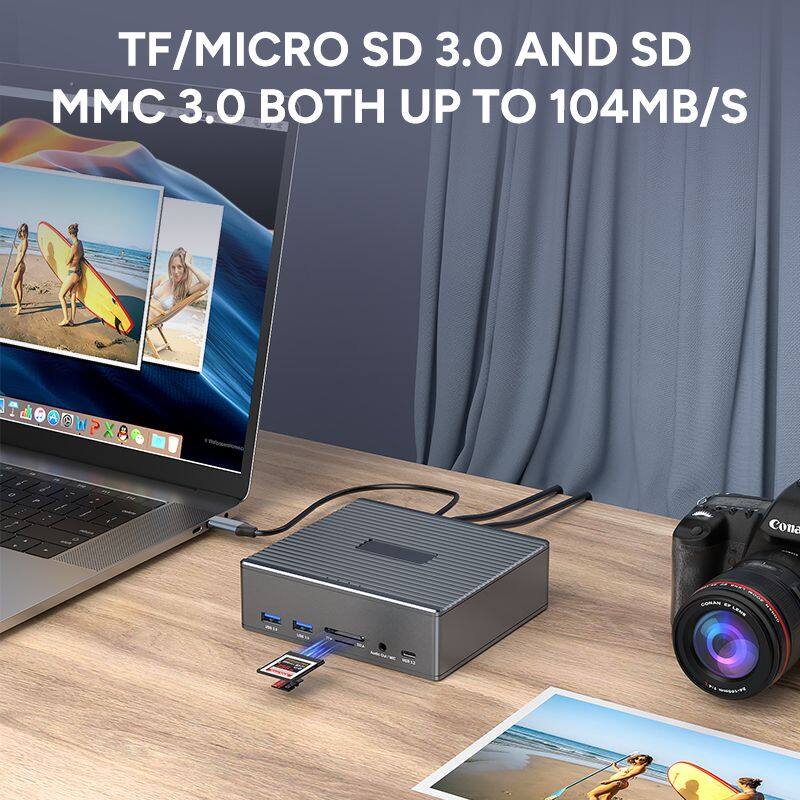

　　11、⑬ 1*SD card port, support UHS-1 transmission standard and compatible with Speed Class transmission standard, SD 3.0 rate, support SDXC, SDHC, SD, MMC, RS-MMC Card；

　　12、⑭ 1*TF card port, support UHS-1 transmission standard and compatible with Speed Class transmission standard, TF 3.0 rate, support Micro SDXC, Micro SD, Micro SDHC Card；

　　13、⑮ 1*3.5 headphone port, audio output + MIC, support two-channel stereo (support audio and volume up/down and language functions)；

　　14、⑦ 1*3.5 headphone port, audio output, support two-channel stereo；

　　15、⑥ 1*3.5 headphone port, MIC input；

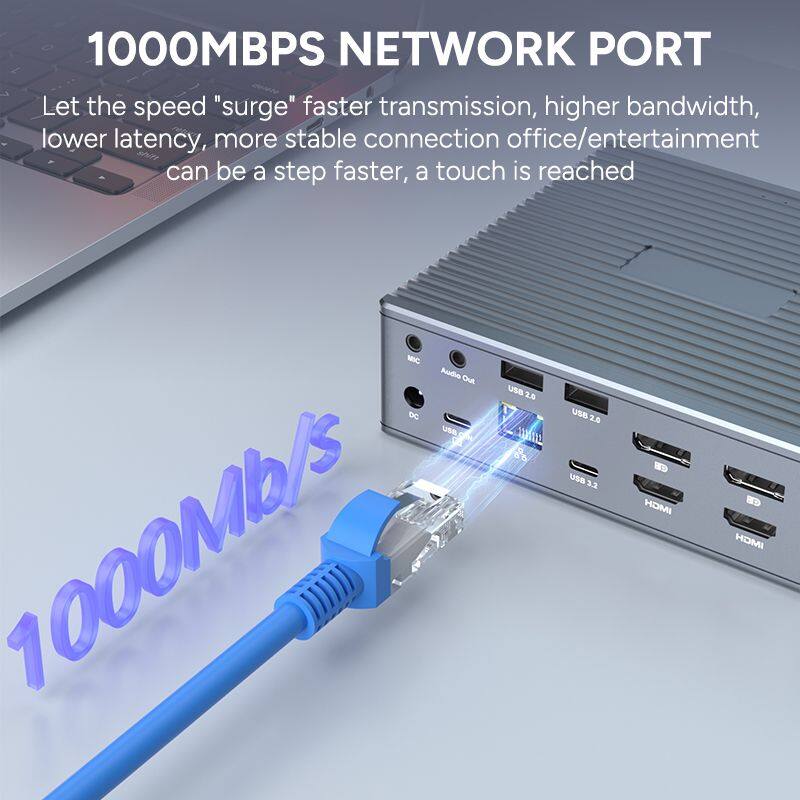

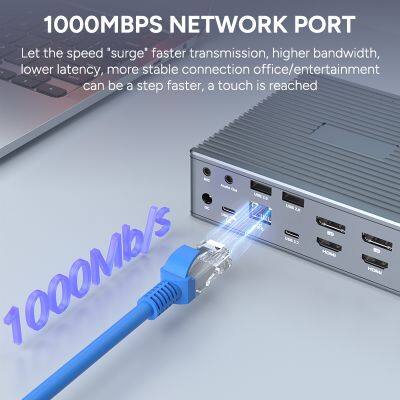

　　16、④ 1*RJ45 port, support 1000M Ethernet, backward compatible with 100M/10M；

　　17、⑫ 2*USB3.1-A port, maximum transmission rate of 5Gbps, (backward compatible), power 5V/1.5A；

　　18、⑤ 2*USB2.0-A port, the maximum transmission rate is 480Mbps, (backward compatible), power 5V/0.5A；

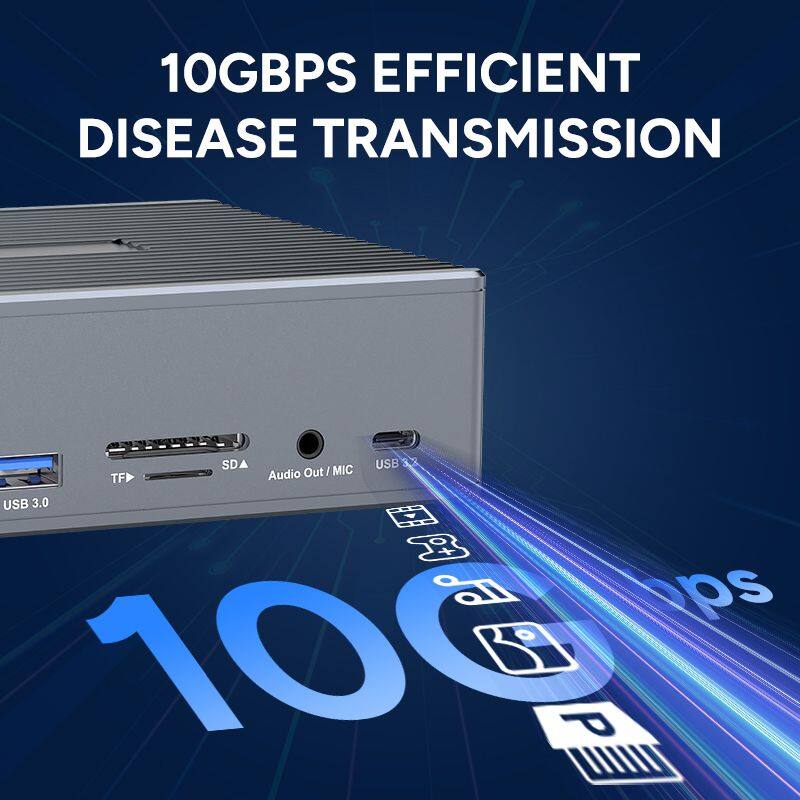

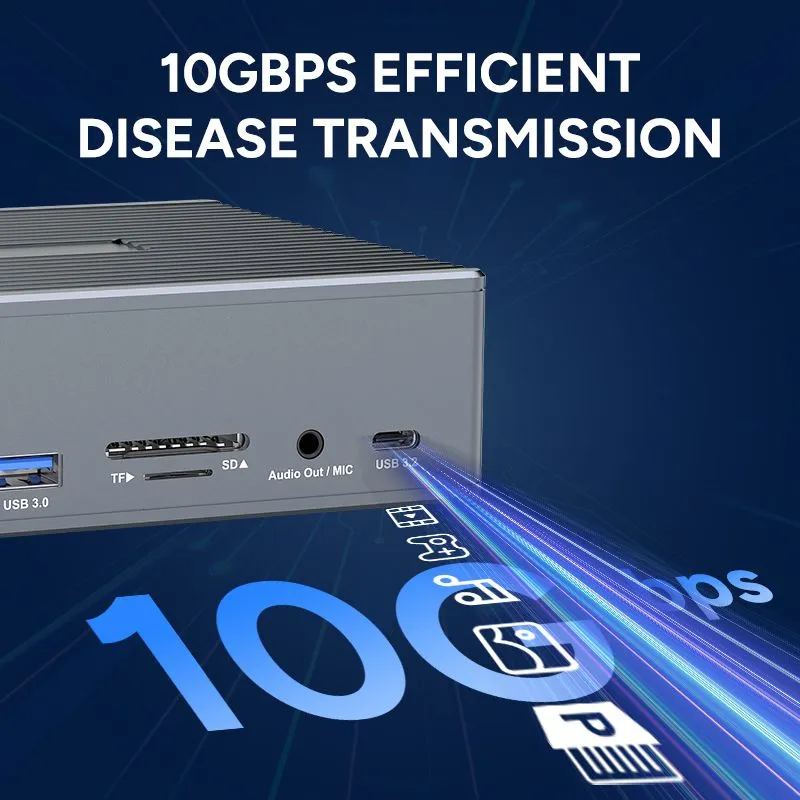

　　19、⑯ 1*TYPE-C USB3.2 Gen2 port, maximum transfer rate of 10Gbps, backward compatible, power 5V/2A；

　　20、③ 1*TYPE-C USB3.2 Gen2 port with a maximum transfer rate of 10Gbps, backward compatible, supports DP Alt Mode 1.4. Support 4K/60Hz (MAX) (can be displayed with ⑪ DP2 or ⑨ HDMI2 in the video port 4K/60Hz dual screen)；
